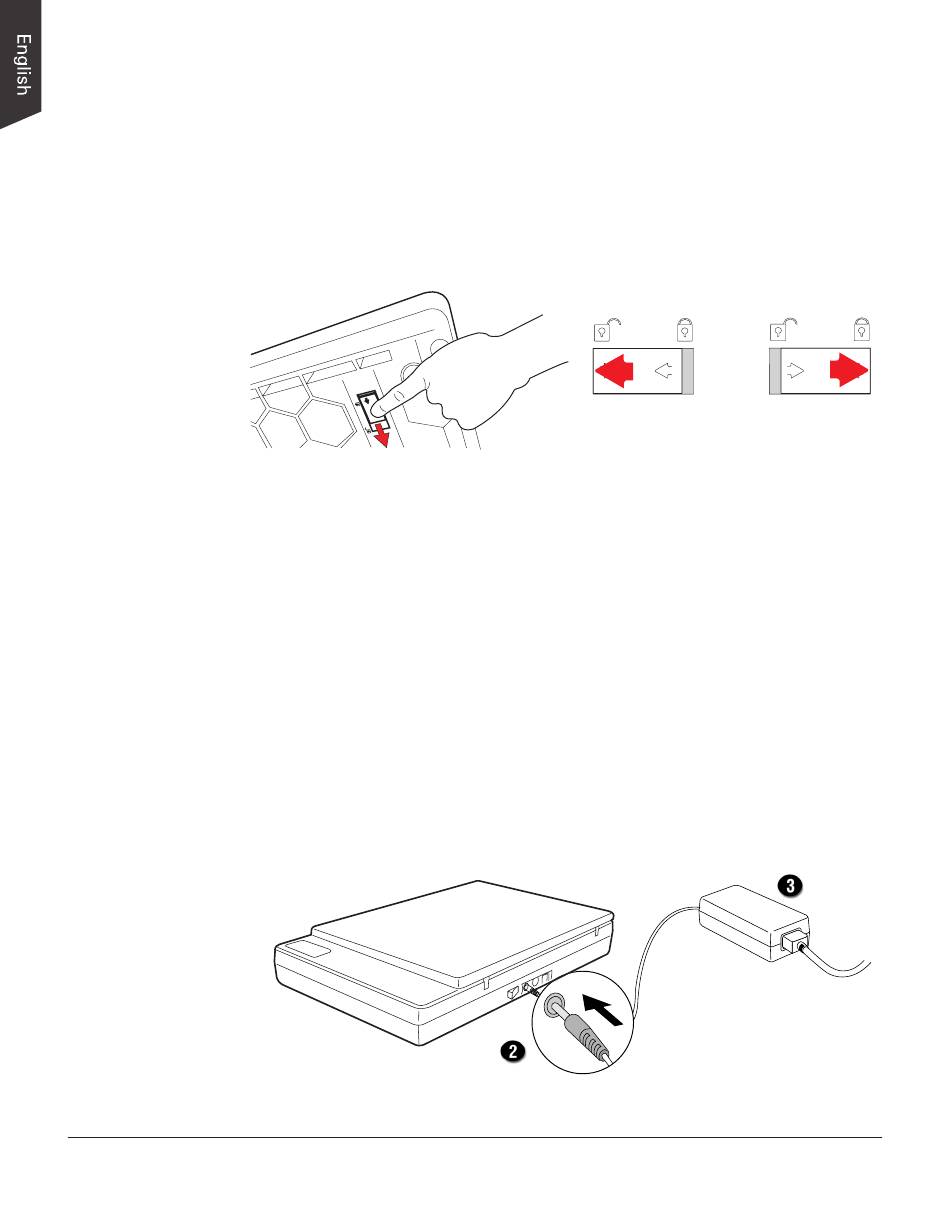

Step 3: Unlocking the Scanner
1. Remove the yellow "Step 3" sticker from your scanner.
2. With the scanner power off, tilt the right front corner of the scanner to see
3. Push the locking switch to the position as indicated in the graphic, with the
NOTE: To lock the scanner (for shipping and other reasons), tilt the scanner and
look for the locking switch on the right front corner at the bottom, then push the
locking switch to the "Locked" position. DO NOT turn the scanner upside down
when attempting to lock the unit.
Step 4: Connecting the Scanner
To the Power Adapter
1. Remove the yellow "Step 4" sticker from your scanner.
2. Connect the power adapter to the back of the scanner.
3. Plug one end of the power cord into the power adapter, and plug the other
14
XT3500 User's Manual
the locking switch at the bottom.
icon on the lock showing as "Unlocked".
end of the power cord into a wall outlet or other power source.
Unlocked
Locked
