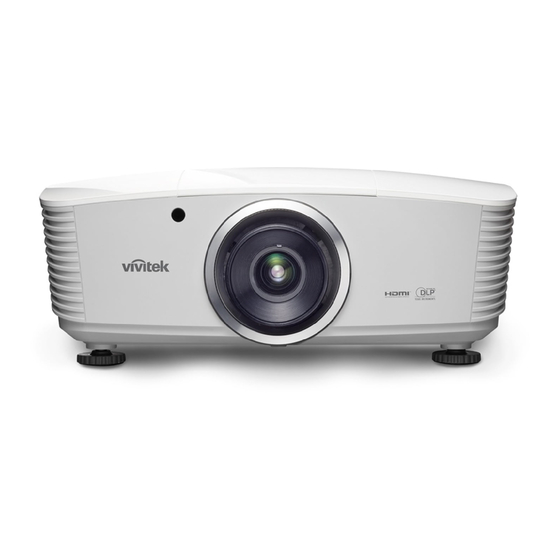

Vivitek DX5630 Series User Manual
  1. Manuals
  2. Brands
  3. Vivitek Manuals
  4. Projector
  5. DX5630 Series
  6. User manual
Vivitek DX5630 Series User Manual

Vivitek DX5630 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DX5630
DW5650
DH5661
DU5671
Series

Advertisement

Table of Contents
loading

Related Manuals for Vivitek DX5630 Series

Summary of Contents for Vivitek DX5630 Series

  • Page 1 DX5630 DW5650 DH5661 DU5671 Series...
  • Page 2 Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2018 Disclaimer The information in this document is subject to change without notice.
  • Page 3 Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
  • Page 4 Projector Installation Notice Do not tilt the projector to the left or right, otherwise lamp life could decrease dramatically, and may lead to other unpredictable damages.  There is no limit on the tilt angle upward or downward. But lamp life could decrease dramatically.
  • Page 5 Verify Installation Location  To supply power, the 3-blade (with earthing lead) socket should be used to ensure proper grounding and equalized ground potential for all of the equipment in the Projector System.  The power code provided with the Projector should be used. In case of any missing item, other qualified 3-blade (with earthing lead) power cord can be used as substitution;...
  • Page 6 Power Safety  Only use the supplied power cord.  Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.  Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
  • Page 7 Main Features  Lightweight unit, easy to pack away and transport.  Compatible with all major video standards including NTSC, PAL, and SECAM.  A high brightness rating allows for presentations in daylight or in lit rooms.  Flexible setup allows for front, rear projections. ...

  • Page 8: Table Of Contents

    Table of Contents GETTING STARTED ................................9 ................................9 ACKING HECKLIST ............................. 10 IEWS OF ROJECTOR ARTS Front-right View ................................10 Top view—On-screen Display (OSD) buttons and LEDs ..................11 Rear view ..................................12 Bottom view ................................. 14 ..............................15 EMOTE ONTROL ARTS...
  • Page 9 TROUBLESHOOTING ..............................74 ..........................74 OMMON ROBLEMS AND OLUTIONS ............................74 IPS FOR ROUBLESHOOTING LED E ..............................75 RROR ESSAGES ................................75 MAGE ROBLEMS ................................76 ROBLEMS ............................76 EMOTE ONTROL ROBLEMS ................................77 UDIO ROBLEMS ..........................77 AVING THE ROJECTOR ERVICED HDMI Q &...

  • Page 10: Getting Started

    ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: Projector W Remote Control VGA Cable (1.8 Power Cord (1.8 (Batteries Included) CD-ROM Warranty Card Quick Start Card UST FILTER (This User's Manual) PTIONAL Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

  • Page 11: Views Of Projector Parts

    Views of Projector Parts Front-right View ABEL ESCRIPTION EE PAGE Screw For ensure the lens position Vertical lens shift Adjusts the image position vertically Press the release button before removing the Lens release button lens Horizontal lens shift Adjusts the image position horizontally IR receiver Receives IR signal from remote control Lens...

  • Page 12: Top View-On-Screen Display (Osd) Buttons And Leds

    Top view—On-screen Display (OSD) buttons and LEDs ABEL ESCRIPTION PAGE MENU Opens and exits OSD menus Navigates and changes settings in the OSD Quick Menu – For Vertical Keystone ENTER Enter or confirm highlighted OSD menu item BLANK Displays a blank screen and mutes audio Navigates and changes settings in the OSD Quick Menu –...

  • Page 13: Rear View

    Rear view 1 2 3 4 6 7 8 9 10 11 ABEL ESCRIPTION EE PAGE VGA1 Connect a RGB cable from a computer or a video enabled device. AUDIO IN 1 Connect the AUDIO cable from an input device. VGA 2 Connect a RGB cable from a computer or a video enabled device.
  • Page 14 ABEL ESCRIPTION EE PAGE AUDIO OUT Connect an AUDIO cable for audio loop through. Connect the RGB cable to a display. VGA OUT (Pass through by VGA1 only) IR receiver Receive IR signal from remote control. SERVICE For service use. RS-232 Connects RS-232 serial port cable for remote control.

  • Page 15: Bottom View

    Bottom view ABEL ESCRIPTION EE PAGE Tilt adjustor Rotate adjuster lever to adjust angle position. Contact your dealer for information on mounting the projector on a Ceiling support holes ceiling Note: When installing, ensure that you use only UL Listed ceiling mounts. For ceiling installations, use approved mounting hardware and M4 screws with a maximum screw depth of 12 mm (0.47 inch).

  • Page 16: Remote Control Parts

    Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens.
  • Page 17 ABEL ESCRIPTION EE PAGE IR Transmitter Transmits signals to projector. Power On Turns the projector on. Displays the VGA1/VGA2/PC source selection (toggle). HDMI Displays the HDMI1/HDMI 2/DVI source selection (toggle). Displays the USB source selection. Navigates and changes settings in the OSD. Quick Menu –...
  • Page 18 ABEL ESCRIPTION EE PAGE Displays the Volume setting bar. Volume/1 Number for Remote ID setting used. Displays the Contrast settings bar. Contrast/2 Number for Remote ID setting used. Mutes the built-in speaker. Mute/3 Number for Remote ID setting used. Displays the digital zoom settings bar. Zoom/4 Number for Remote ID setting used.

  • Page 19: Remote Control Operating Range

    Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level.

  • Page 20: Setup And Operation

    ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the battery with the positive side facing up. Replace the cover. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2.

  • Page 21: Installing Or Removing The Optional Lens

    Installing or Removing the Optional Lens Caution:  Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.  Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.

  • Page 22: Installing The New Lens

    Installing the New Lens Electrical contact pins Align the notches and correctly position the electrical contact pad as shown in the picture. Note: Pin of Electrical contact pins should be in the direction as shown in the picture. Rotate the lens clockwise until you feel it click into place.

  • Page 23: Starting And Shutting Down The Projector

    Starting and Shutting down the Projector Remove the lens cap. Securely connect the power cord and signal cable. When connected, the power led will turn red. Turn on the lamp by pressing “ ” button on the rear of the projector or “...
  • Page 24 If more than one input device is connected, press the SOURCE button and use ▲▼ to scroll among devices. (Component is supported through the RGB to Component adapter.)  HDMI 1 / 2: High-Definition Multimedia Interface 1 / 2 compatible ...

  • Page 25: Setting An Access Password (Security Lock)

    Setting an Access Password (Security Lock) You can use the four (arrow) buttons to set a password and prevent unauthorized use of the projector. When enabled, the password must be entered after you power on the projector. (See Navigating the OSD on page Setting the OSD Language on page...
  • Page 26 You can use the cursor buttons ▲▼◄► either on keypad or IR remote control for password entry. You can use any combination including the same arrow five times, but not less than five. Press the cursor buttons in any order to set the password.

  • Page 27: Adjusting The Projector Level

    Adjusting the Projector Level Take note of the following when setting up the projector:  The projector table or stand should be level and sturdy.  Position the projector so that it is perpendicular to the screen.  Remove the Back Foot Holder on the rear adjuster foot before adjusting the projection angle.

  • Page 28: Adjusting Projected Image Position Using Shift

    Adjusting Projected Image Position Using Shift Note: Suggest to loosen the screw before lens shift adjustment and tighten up after finished adjustment. The Shift feature provides a lens shift function that can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.
  • Page 29 Screen -10% 100% 50%xH +50% Distance — 28 —...

  • Page 30: Adjusting The Horizontal Image Position

    Adjusting the horizontal image position With the lens in the center position the horizontal image position can be adjusted to the left or right by up to a maximum of 5% of the image width. Note that the maximum horizontal image height adjustment can be limited by the vertical image position.
  • Page 31 When W and H at 0% offset position The max. H up shift=Hx50% The max. H down shift=Hx10% The max. W shift=Wx5% When max. W shift is Wx5% max. H shift=Hx45% When max. H shift is Hx50% max. W shift=Hx0% —...

  • Page 32: Adjusting The Zoom, Focus And Keystone

    Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size. Use the Image-focus control (on the projector only) to sharpen the projected image. Press the buttons (on the projector or the remote control) to correct vertical or horizontal image-trapezoid or press the Keystone button (on the...

  • Page 33: Adjusting The Volume

    Adjusting the Volume Press the Volume buttons on the remote control. The volume control appears on the display. Press the ◄ / ► buttons on the keypad to adjust Volume +/-. Press the MUTE button to turn off the volume (This feature is available only on the remote).

  • Page 34: On-Screen Display (Osd) Menu Settings

    (OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control cursor buttons or the buttons on the top of the projector to navigate and make changes to the OSD.

  • Page 35: Setting The Osd Language

    Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the cursor ◄► button to navigate to Settings 1. Press the cursor ▲▼ button to move to the Advanced 1 menu. (Enter) / ►...

  • Page 36: Osd Menu Overview

    OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Main Menu Sub Menu Settings Image Display Mode Presentation, Bright, Game, Movie, Vivid, TV, sRGB, DICOM SIM, User1, User2 Brightness 0~100 Contrast 0~100 Computer...
  • Page 37 Main Menu Sub Menu Settings Settings 1 Source Source reference Input Source Select (IR/Keypad) Projection Normal, Rear, Ceiling, Rear+Ceiling Aspect Ratio Fill, 4:3, 16:9, Letter Box, Native, 2.35:1 Keystone H: -25 ~ +25 V: -30 ~ +30 Digital Zoom -10~10 Audio Volume 0~10...
  • Page 38 Main Menu Sub Menu Settings Settings 2 Auto Source Off, On No Signal 0~180 Power Off Auto Power Off, On Lamp Mode ECO , Normal Reset All Status Active Source Video Information Lamp Hours(ECO, Normal) Software Version Remote ID Serial Number Advanced 1 Menu Position Center, Down, Up, Left, Right...

  • Page 39: Image Menu

    Image Menu Attention ! All of display mode parameters when changed will be saved to user mode. Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Image Menu. Press the cursor ▲▼ button to move up and down in the Image menu. Press ◄► to enter and change values for settings. ESCRIPTION Press the cursor ◄►...

  • Page 40: Computer Menu

    Computer Menu Press the MENU button to open the OSD menu. Press ◄► to move to the Image menu. Press ▲▼ to move to the Computer menu and then press Enter or ►. Press ▲▼ to move up and down in the Computer menu. ESCRIPTION Press the cursor ◄►...

  • Page 41: Advanced Feature

    Advanced Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Advanced menu and then press Enter or ►. Press ▼▲ to move up and down in the Advanced menu. ESCRIPTION Press the cursor ◄►...

  • Page 42: White Balance

    White Balance Press the ENTER button to enter the White Balance sub menu. ESCRIPTION Press the ◄► buttons to adjust the Red Gain. R Gain Press the ◄► buttons to adjust the Green Gain. G Gain Press the ◄► buttons to adjust the Blue Gain. B Gain Press the ◄►...

  • Page 43: Color Manager

    Color Manager Press the Menu button to open the OSD menu. Press ◄► to move to the Image menu. Press ▼▲ to move to the Color Manager menu and then press Enter or ►. Press ▼▲ to move up and down in the Color Manager menu. ESCRIPTION Select to enter the Red Color Manager.

  • Page 44: Settings 1 Menu

    Settings 1 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 1 menu. Press the cursor ▲▼ button to move up and down in the Settings 1 menu. Press ◄► to enter and change values for settings.

  • Page 45: Keystone

    Keystone Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▼▲ to move to the Keystone menu and then press Enter or ►. Press ▼▲to adjust vertical values from -30 to 30. Press ◄► to adjust horizontal values from -25 to 25.

  • Page 46: Advanced 1 Feature

    Advanced 1 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 1 menu. Press ◄►...
  • Page 47 3D Setting ESCRIPTION Press the cursor ◄► button to enter and select different 3D mode. Press the cursor ◄► button to enter and enable or disable 3D Sync Invert. 3D Sync Invert Press the cursor ◄► button to enter and enable or disable different 3D Format. 3D Format Note: 1.

  • Page 48: Advanced 2 Feature

    Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 1 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. Press ◄►...

  • Page 49: Corner

    4 Corner (Enter) / ► to enter the 4 Corner sub menu. Press 1. Press the cursor ▲ / ▼ buttons to select a corner and press ENTER. 2. Press the cursor ▲ / ▼ buttons to adjust vertical and press the cursor ◄ / ► buttons to adjust horizontal.

  • Page 50: Settings 2 Menu

    Settings 2 Menu Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 2 menu. Press the cursor ▲▼ button to move up and down in the Settings 2 menu. ESCRIPTION Press the cursor ◄►...

  • Page 51: Status

    Status Press the cursor ▲▼ button to move up and down in the Settings 2 menu. Select the Status menu and press Enter or ► to enter. ESCRIPTION Active Source Display the activated source. Displays resolution/video information for RGB source and color standard for Video Video Information source.

  • Page 52: Advanced 1 Feature

    Advanced 1 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 1 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 1 menu. Press ◄►...
  • Page 53 Lamp Hour Reset Please refer to Resetting the Lamp on page to reset the lamp hour counter. Network ESCRIPTION Network State Displays the network connection status. Press ◄► to turn DHCP On or Off. DHCP Note: If you select DHCP Off, complete the IP Address, Subnet Mask, Gateway, and DNS fields.
  • Page 54 LAN_RJ45 Wired LAN Terminal functionalites Remote control and monitoring of a projector from a PC (or Laptop) via wired LAN is also possible. Compatibility with Crestron / AMX (Device Discovery) / Extron control boxes enables not only collective projector management on a network but also management from a control panel on a PC (or Laptop) browser screen.
  • Page 55 LAN_RJ45 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). 2. On the PC (Laptop), select Start → Control Panel →Network and Internet. — 54 —...
  • Page 56 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the Networking tab, and select Internet Protocol (TCP/IP). 5. Click Properties. 6. Click Use the following IP address and fill in the IP address and Subnet mask, then click OK. —...
  • Page 57 7. Press the Menu button on the projector. 8. Select Settings2→ Advanced1 → Network 9. After getting into Network, input the following:  DHCP: Off  IP Address: 10.10.10.10  Subnet Mask: 255.255.255.0  Gateway: 0.0.0.0  DNS Server: 0.0.0.0 (Enter) / ►...
  • Page 58 ATEGORY NPUT ENGTH IP Address Crestron Control IP ID Port Projector Name Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Configuration Subnet Mask Default Gateway DNS Server Enabled (N/A) User Password New Password Confirm Enabled (N/A) Admin Password New Password Confirm For more information, please visit http://www.crestron.com.
  • Page 59 Preparing Email Alerts 1. Make sure that user can access the homepage of LAN RJ45 function by web browser (for ex-ample, Microsoft Internet Explorer v6.01/v8.0). 2. From the Homepage of LAN/RJ45, click Alert Mail Settings. 3. By default, these input boxes in Alert Mail Settings are blank. —...
  • Page 60 4. For Sending alert mail, input the following: The SMTP field is the mail server for sending out email (SMTP protocol). This is a required field. The To field is the recipient’s email address (for example, the projector administrator). This is a required field. The Cc field sends a carbon copy of the alert to the specified email address.
  • Page 61 RS232 by Telnet Function Besides projector connected to RS232 interface with “Hyper-Terminal” communication by dedicated RS232 command control, there is alternative RS232 command control way, so called “RS232 by TELNET” for LAN/RJ45 interface. Quick Start-Guide for “RS232 by TELNET” Check and get the IP-Address on OSD of the projector. Make sure that laptop/PC can access the web-page of the projector.
  • Page 62 Input the command format like the below: telnet ttt.xxx.yyy.zzz 23 (“Enter” key pressed) (ttt.xxx.yyy.zzz: IP-Address of the projector) If Telnet-Connection ready, and user can have RS232 command input, then “Enter” key pressed, the RS232 command will be workable. How to have TELNET enabled in Windows 7 / 8 / 10 By default installation for Windows, “TELNET”...
  • Page 63 Select “Turn Windows features on or off” to open Have “Telnet Client” option checked, then press “OK” button. Specsheet for “RS232 by TELNET” : 1. Telnet: TCP 2. Telnet port: 23 (for more detail, kindly please get contact with the service agent or team) 3.
  • Page 64 HDBaseT ESCRIPTION Press the cursor ◄► button to enter and enable or disable HDBaseT Control. HDBaseT Press the cursor ◄► button to enter and enable or disable Front IR. Front IR Press the cursor ◄► button to enter and enable or disable Rear IR. Rear IR Note: 1.

  • Page 65: Advanced 2 Feature

    Advanced 2 Feature Press the Menu button to open the OSD menu. Press ◄► to move to the Settings 2 menu. Press ▲▼ to move to the Advanced 2 menu and then press Enter or ►. Press ▲▼ to move up and down in the Advanced 2 menu. Press ◄►...
  • Page 66 Source Filter Press the ENTER button to enter the Source Filter sub menu. ESCRIPTION Press the cursor ◄► button to enter and enable or disable the HDMI1 source. HDMI1 Press the cursor ◄► button to enter and enable or disable the HDMI2 source. HDMI2 Press the cursor ◄►...

  • Page 67: Maintenance And Security

    AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b.
  • Page 68 Unlock the lamp cover. Pull up and remove the cover. Use a screwdriver to remove the screws from the lamp module. Pull out the lamp module. — 67 —...
  • Page 69 Reverse steps 1 to 7 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is level to avoid damage. Note: The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws.

  • Page 70: Resetting The Lamp

    Resetting the Lamp After replacing the lamp, you should reset the lamp hour counter to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Settings 2 menu. Press the cursor button to move down to Advanced 1 and press enter.

  • Page 71: Cleaning The Filter (Filter: Optional Parts)

    Cleaning the filter (filter: optional parts) The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality. Turn off the projector, and unplug the AC power cord from the AC outlet.

  • Page 72: Replacing The Filter

    Replacing the Filter Turn off the projector, and unplug the AC power cord from the AC outlet. Clean up the dust on the projector and around the air vents. Pull out the filter cover and remove from the projector Lift the filter from the filter cover.

  • Page 73: Cleaning The Projector

    Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2.

  • Page 74: Using The Physical Lock

    Using the Physical Lock Using the Kensington Security Slot If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: Contact your vendor for details on purchasing a suitable Kensington security cable. The security lock corresponds to Kensington’s MicroSaver Security System.

  • Page 75: Troubleshooting

    ROUBLESHOOTING Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. Often after time spent troubleshooting, the problem is traced to something as simple as a loose connection. Check the following before proceeding to the problem-specific solutions.

  • Page 76: Led Error Messages

    LED Error Messages RROR ESSAGES OWER EADY Standby Start warm up Flashing(Red) Lamp Ready Green Cooling Flashing(Red) Over Temperature Thermal Break Sensor error 4 blinks Lamp strike fail / ballast connector open 5 blinks Lamp voltage too low 5 blinks 7 blinks Ballast fail 5 blinks...

  • Page 77: Lamp Problems

    Problem: The image is wider at the top or bottom (trapezoid effect) 1. Position the projector so it is as perpendicular to the screen as possible. 2. Use the Keystone button on the remote control to correct the problem. Problem: The image is reversed Check the Projection setting on the Settings 1 menu of the OSD.

  • Page 78: Audio Problems

    Audio Problems Problem: There is no sound 1. Adjust the volume on the remote control. 2. Adjust the volume of the audio source. 3. Check the audio cable connection. 4. Test the source audio output with other speakers. 5. Have the projector serviced. Problem: The sound is distorted 1.

  • Page 79: Hdmi Q & A

    HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High -Speed cables. ˙Standard (or “category 1”) HDMI cables have been tested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal.

  • Page 80: Specifications

    PECIFICATIONS Specifications Model DX5630 DU5671 Display type 0.7 XGA, S600 HB 0.67 WUXGA, S600 HB Resolution 1024x768 1920x1200 Projection distance 1.5 meters ~ 7 meters Projection screen size 36.9" - 215.3" 35.1" - 205.3" Projection lens Manual Focus/Manual Zoom Throw ratio 1.6 ~ 2.0 1.54 ~ 1.93 Vertical...

  • Page 81: Projection Distance Vs. Projection Size (Wuxga)

    Projection Distance vs. Projection Size (WUXGA) Projection Distance V-Sync Projection Distance and Size Table Standard projection lens: TR: 1.54 ~ 1.93; offset=55% 1.66 3.33 4.16 8.31 1.66 3.32 6.63 9.95 Distance (m) 300(*) Diagonal (") 1723 2154 4308 1077 2154 4308 6462 Image Width (mm)
  • Page 82 New Short throw projection lens: TR: 0.778; offset=55% 0.67 1.34 1.68 2.51 Distance (m) Diagonal (") 1723 2154 3231 Image Width (mm) 1077 1346 2019 Image Height (mm) 1010 h (mm) 1111 O (mm) A (mm) Semi Short throw projection lens: TR: 1.1 ~ 1.3; offset=55% 1.12 2.80 5.60...

  • Page 83: Projection Distance Vs. Projection Size (Xga)

    Projection Distance vs. Projection Size (XGA) Projection Distance V-Sync Projection Distance and Size Table Standard projection lens: TR: 1.6 ~ 2; offset=50% 1.63 3.25 4.06 8.13 1.63 3.25 6.50 9.75 Distance (m) 300(*) Diagonal (") 1626 2032 4064 1016 2032 4064 6096 Image Width (mm)
  • Page 84 New Short throw projection lens: TR: 0.81; offset=50% 0.66 1.32 1.65 2.47 Distance (m) Diagonal (") 1626 2032 3048 Image Width (mm) 1219 1524 2286 Image Height (mm) 1143 h (mm) 1143 O (mm) A (mm) Semi Short throw projection lens: TR: 1.14 ~ 1.34; offset=50% 1.09 2.72 5.45...

  • Page 85: Timing Mode Table

    Timing Mode Table H-Sync V-Sync Composite DP/DVI Signal Resolution Component (KHz) (Hz) S-Video (Analog) HDMI (Digital) ○ － － － － NTSC 15.7 60.0 ○ － － － － PAL/SECAM 15.6 50.0 ○ ○ － － 640 x 400 37.9 85.1 ○...
  • Page 86 H-Sync V-Sync Composite DP/DVI Signal Resolution Component (KHz) (Hz) S-Video (Analog) HDMI (Digital) ○ ○ － － 1680 x 1050 65.3 60.0 － － ○ ○ 1920 x 1200 74.0 60.0 ○ ○ － － 1920 x 1080 67.5 60.0 ○...

  • Page 87: Projector Dimensions

    Projector Dimensions — 86 —...

  • Page 88: Regulatory Compliance

    EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 89: Communication Parameter Setup

    PPENDIX Communication parameter setup You can use the serial control command to input commands for projector control or retrieve its operational data through Windows client terminal software, e.g. Hyper Terminal, with ASCII characters.You need to set up the following communication parameters in advance: Item Parameter: Bit per Second...
  • Page 90 Operation OSD Function Settings/Return Values Note command Picture Mode pic.mode 0:Presentation Not applicable when the project is in 1:Bright standby mode. 2:Game 3:Movie 4:Vivid 5:TV 6:sRGB 8:DICOM SIM 9:User1 10:User2 Input Select input.sel 1 = VGA1 Not applicable when the project is 2 = VGA2 at below status.
  • Page 91 Operation OSD Function Settings/Return Values Note command White Balance /Red red.gain 0-200 Not applicable when the project is in Gain standby mode or the input signal is not locked yet. White Balance /Green green.gain 0-200 Not applicable when the project is in Gain standby mode or the input signal is not locked yet.
  • Page 92 Operation OSD Function Settings/Return Values Note command HSG/Green/Hue hsg.g.hue 0-100 Not applicable when the project is in standby mode or the input signal is not locked yet. HSG/Blue/Hue Hsg.b. hue 0-100 Not applicable when the project is in standby mode or the input signal is not locked yet.
  • Page 93 Operation OSD Function Settings/Return Values Note command Lamp Mode Lamp.mode 0 = Normal *Not applicable when the project is 1 = Eco in standby mode *Not applicable when the project is in cooling or lighting up status. Please send control command after the said commands are completed.
  • Page 94 Operation OSD Function Settings/Return Values Note command Language lang 0 = English 1 = French 2 = German 3 = Spanish 4 = Portugues 5 = Simplified Chinese 6 = Traditional Chinese 7 = Italian 8 = Norwegian 9 = Swedish 10 = Dutch 11 = Russian 12 = Polish...
  • Page 95 Operation OSD Function Settings/Return Values Note command Projector Status status 0 = Reset 1 = Standby 2 = Active 3 = cooling Low Power Mode lowpower.mod 0 = Off 1 = On 2 = On By Lan 3D Sync threed.mode 0 = Off Auto 3D (1080P 24Hz) can not Off 1 = DLP-Link...
