  • Page 1 Entrance Ticket Station (DS-TMT201-D) Quick Start Guide...

  • Page 2: Symbol Conventions

    Entrance Ticket Station • Quick Start Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.

  • Page 3: Chapter 1 Introduction

    Entrance Ticket Station • Quick Start Guide Chapter 1 Introduction Product Introduction Entrance Ticket Station (hereinafter referred to as device) is used for data collection and management of entrance and parking lot. Through interaction with the software, the device can control the entrance, manage the parking lot effectively, and charge parking fee.

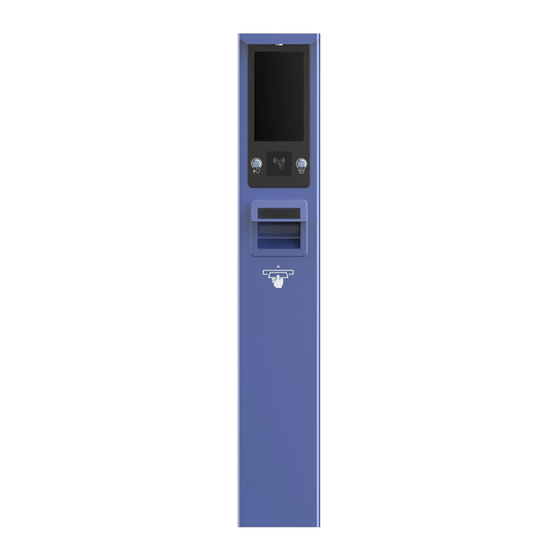

  • Page 4 Entrance Ticket Station• Quick Start Guide Press the button to take a ticket when the vehicle enters the Taking ticket button parking lot. Take a ticket here to enter the parking lot and start time-based Ticket out exit charge. Loudspeaker Play voice prompt such as welcome.

  • Page 5: Chapter 2 Device Installation

    Entrance Ticket Station• Quick Start Guide Chapter 2 Device Installation Installation Environment Select the appropriate position for installing the device according to your actual requirement. Pay attention to the following tips. ● Install the device on horizontal ground. ● Installation surface requirements: ○...
  • Page 6 Entrance Ticket Station• Quick Start Guide Mark Positions of Holes The pipe diameter of the pre-embedded cable should be no more than 60 mm. 2. Take the three M12 × 150 expansion screws out from the package. Punch the screws into the marked positions on refuge island.
  • Page 7 Entrance Ticket Station• Quick Start Guide Open Back Cover 4. Fix the device. 1) Put the device on the positions of expansion screws on the refuge island to make the screws pass through the holes on the bottom. 2) Fasten the expansion nuts on the screws to fix the device. Fix Device Wiring Cut off power before wiring.

  • Page 8: Printing Paper

    Entrance Ticket Station• Quick Start Guide Steps 1. Connect the laid network cable to the network interface. 2. Connect the laid power cord (RVV3 × 1.5 mm² or above) to the power input of the device. 3. Connect all the ground wires to PE interface of the printer. Wiring 3.
  • Page 9 Entrance Ticket Station• Quick Start Guide Steps 1. Take the printing paper from the printer package. Take the printing paper spool from the accessory kit. 2. Insert the printing paper spool into the central hole of the printing paper. Insert Printing Paper Spool 3.
  • Page 10 Entrance Ticket Station• Quick Start Guide Install Printing Paper into Paper Slot The paper-out sensor position is set by default, and it can be adjusted according to the actual situation. 5. Power on the device, and turn on the air switch. Start up the device. 6.
  • Page 11 Entrance Ticket Station• Quick Start Guide The printer will display paper-out signal when the printing paper is running out. Steps 1. Follow step 3 of 2.2 Install Device to open the back cover. 2. If the printing paper doesn’t fall off from the printing paper spool, then cut the printing paper at any place.
  • Page 12 Entrance Ticket Station• Quick Start Guide Pull Switch Shaft 3. Turn the printer head as shown in Figure 2-13 Remove Paper. 4. Remove the jammed paper in the paper out area. Remove Paper 5. Turn the printer head in the opposite direction. 6.

  • Page 13: Chapter 3 Device Configuration

    Entrance Ticket Station • Quick Start Guide Chapter 3 Device Configuration Scan the QR code below to get the user manual for detailed configuration. User Manual QR Code...
