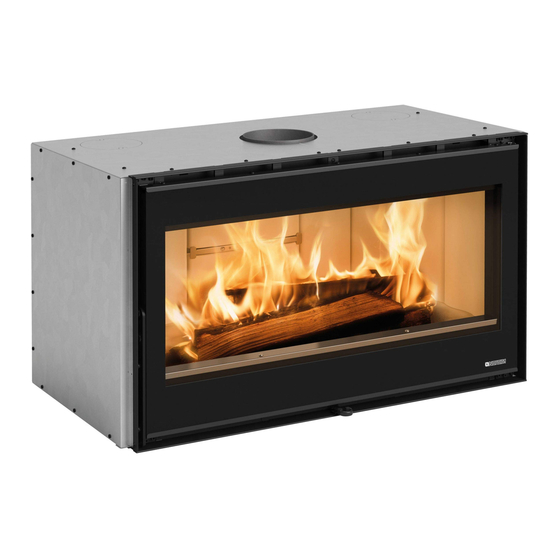

Nordica INSERTO 100 WIDE User Manual
Hide thumbs
Also See for INSERTO 100 WIDE:
- User manual (104 pages) ,
- User manual (88 pages) ,
- User manual (88 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Nordica INSERTO 100 WIDE
Summary of Contents for Nordica INSERTO 100 WIDE
- Page 1 MANUALE UTENTE PRODOTTI A LEgNA WOOD PRODUCTs UsER MANUAL BENUTZERHANDBUCH HOLZPRODUkT MANUEL UTILIsATEUR PRODUITs à BOIs MANUAL DEL UsUARIO PRODUCTOs DE LEñA INSERTO 80 WIDE -80 PRS WIDE - 100 WIDE ITALIANO MADE ITALY design & production 6096106 - Rev.01...
-
Page 2: Table Of Contents
ATTENTION sURFACEs CAN BECOME VERY HOT! ALWAYs UsE PROTECTIVE gLOVEs! During combustion, thermal energy is released that significantly increases the heat of surfaces, doors, handles, controls, glass, exhaust pipes, and even the front of the appliance. Avoid contact with those elements if not wearing protective clothing (protective gloves included). -
Page 3: Installation
We thank you for having chosen our company; our product is a great heating solution developed from the most advanced technology with top quality machining and modern design, aimed at making you enjoy the fantastic sensation that the heat of a flame gives, in complete safety. WarNINGS This instructions manual is an integral part of the product: make sure that it always accompanies the appliance, even if transferred to another owner or user, or if transferred to another place. -
Page 4: General Precautions
Installation must only be carried out by a qualified technician who works on behalf of companies suitable to assume the entire responsibility of the system as a whole. La NORDICA S.p.A. declines any responsibility for the product that has been modified without written authorisation as well as for the use of non-original spare parts. -
Page 5: Fire-Fighting Safety Measures
INsERT AND MUsT NOT COME INTO CONTACT WITH HOT PARTs. La NORDICA S.p.A. declines all responsibility for damage to things and/or persons caused by the system. In addition, it is not responsible for any product modified without authorisation and even less for the use of non original spare parts. -
Page 6: Technical Description
TECHNICAL DEsCRIPTION The appliance La Nordica is suitable to heat living spaces for some periods. As fuel, wood logs are used. The appliance works as an intermittent operating appliance. The appliance is made up of a steel chamber completely soldered and hermetic. -
Page 7: Chimney Cap
The draught created by the flue must be sufficient, but not excessive. A too big flue section can feature a too big volume to be heated and consequently cause difficulties in the operation of the device; to avoid this, tube the flue along its whole height. A too small section causes a decrease of the draught. ATTENTION: as far as concern the realisation of the flue connection and flammable materials please follow the requirements provided by UNI 10683 standard. -
Page 8: Ventilation And Aeration Of The Installation Premises
VENTILATION AND AERATION OF THE INsTALLATION PREMIsEs As the product draw their combustion air from the place of installation, it is MANDATORY that in the place itself, a sufficient quantity of air is introduced. If windows and doors are airtight (e.g. built according to energy saving criteria), it is possible that the fresh air intake is no longer guaranteed and this jeopardises the draught of the appliance and your health and safety. -
Page 9: Allowed / Not Allowed Fuels
ALLOWED / NOT ALLOWED FUELs Allowed fuels are logs. Use exclusively dry logs (max. content of water 20%). Maximum 3 logs should be loaded. The pieces of wood should have a length of ca. 20-30 cm and a maximum circumference of 30-35 cm. Compressed not worked-out wood briquettes must be used carefully to avoid overheating that may damage the device, since these have a very high calorific value. -
Page 10: Lighting
LIgHTINg After the first ignition you can smell bad odours (owing to the drying of the glue used in the garnitures or of the paint) which disappear after a brief using of the appliance. A good ventilation of the room should always be guaranteed. To light the fire, it is suggested to use small wood pieces together with paper or other traded lighting means. -
Page 11: Normal Operation
NORMAL OPERATION After having positioned the registers correctly, insert the indicated hourly wood load avoiding overloads that cause anomalous stresses and deformations. You should always use the product with the door closed in order to avoid damages due to overheating (forge effect). The inobservance of this rule makes the warranty expire. -
Page 12: Maintenance And Care
Let your chimney sweeper in charge of your area check the regular installation of the device, the connection to the stack and the aeration. IMPORTANT: THE MAINTENANCE AND CARE MUsT BE CARRIED OUT ONLY AND ExCLUsIVELY WITH COLD DEVICE .You should only use spare parts approved and supplied by La NORDICA s.p.A. . Please contact your specialized retailer if you require spare parts. -
Page 13: Routine Maintenance Performed By Qualified Technicians
which cannot ensure the good operation of the equipment if they are not in good condition and are not making a good seal! In this case the seals must be replaced. In presence of dampness in the room where the stove has been placed, we advise you to put absorbent salts into the hearth. If you want to keep for long the aesthetic look of the cooker it is important to protect its internal walls in row cast iron with neutral Vaseline. -
Page 14: Guarantee Terms
La Nordica S.p.A. cannot be held liable for injury or damage which may - either directly or indirectly - be caused to persons, animals and property ensuing from failure to observe all the instructions provided in the relevant instruction manual and the warnings regarding installation, use and maintenance of the product, that can also be downloaded on the website. - Page 15 If the product is repaired in one of the Authorised Technical Assistance Centres indicated by La Nordica S.p.A. and if the product is replaced, transport will be free of charge. If the technician can repair the product at the user’s place of residence and they refuse, transport to the workshop and redelivery will be paid by the consumer.
