Alliance Laundry Systems ATB50CG Troubleshooting Manual

Alliance Laundry Systems ATB50CG Troubleshooting Manual

Drying tumblers 50 pound capacity, 75 pound capacity
Hide thumbs Also See for ATB50CG:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

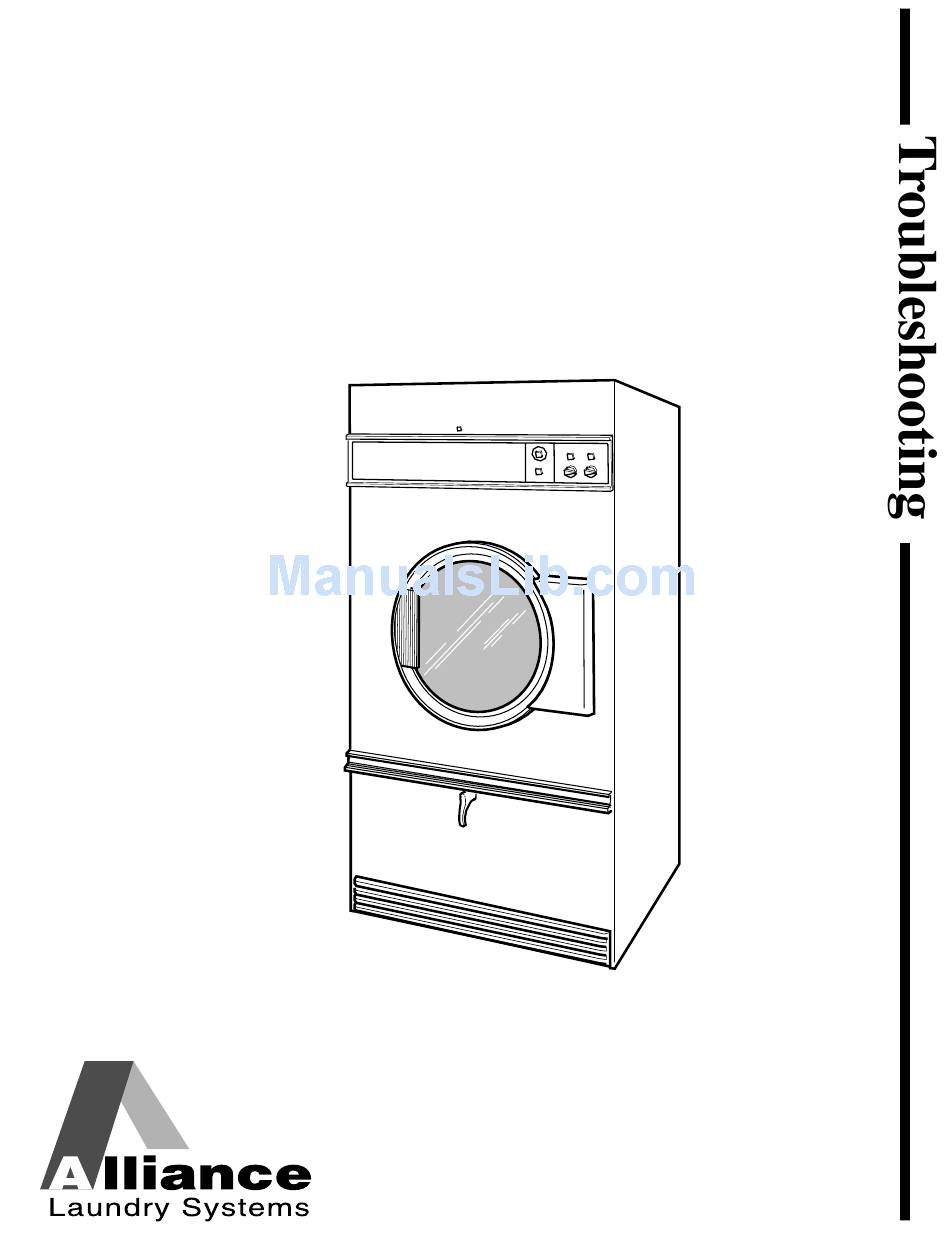

Drying Tumblers
50 Pound Capacity
75 Pound Capacity
Refer to Page 5 for Model Numbers
T012c
Part No. 70410501
www.comlaundry.com
September 2007
