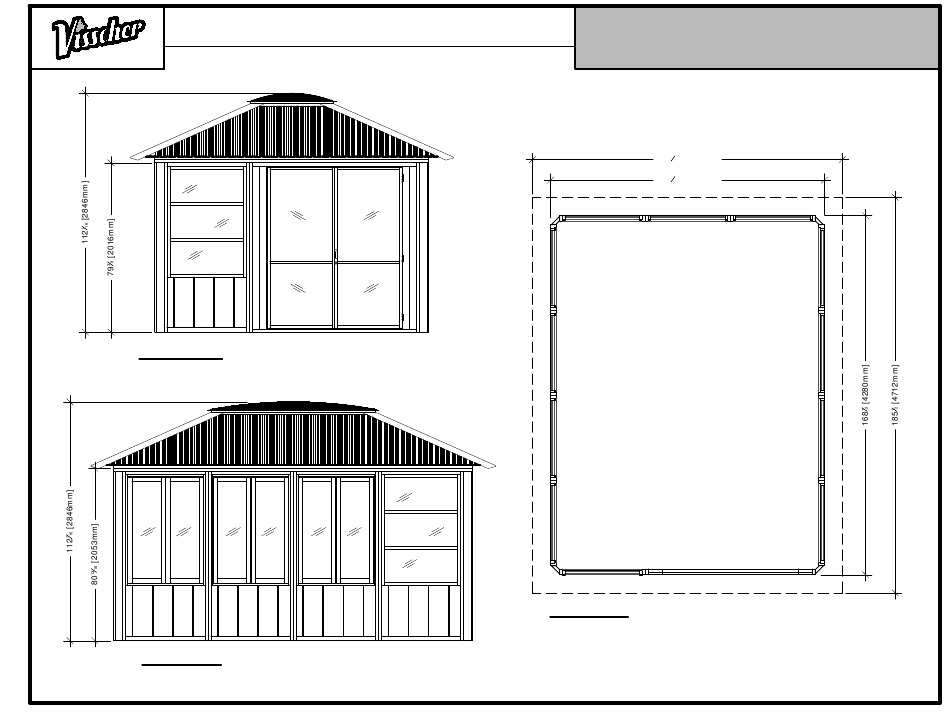

Front Elevation
Side Elevation
0272_Stoneham_11x14_Instructions_V1.1
INSTRUCTIONS
EN
STONEHAM 11X14
145
1
[3696mm]
2
128
[3264mm]
1
2
DOUBLE DOOR
Footprint Plan
TOLL FREE: 1-877-795-7423

Advertisement

loading
Need help?

Need help?

Do you have a question about the STONEHAM and is the answer not in the manual?

Questions and answers

Related Manuals for VISSCHER STONEHAM

Summary of Contents for VISSCHER STONEHAM

  • Page 1 INSTRUCTIONS STONEHAM 11X14 [3696mm] [3264mm] Front Elevation DOUBLE DOOR Footprint Plan Side Elevation TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 3 PHILLIPS SCREW DRIVER PHILLIPS SCREW DRIVER ESTIMATED ASSEMBLY TIME: 8 HOURS IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, CONTACT YOUR VISSCHER DEALER. KNIFE FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW. ADJUSTABLE WRENCH PLEASE HAVE SERIAL NUMBER READY TO ENSURE QUICK SERVICE.
  • Page 5 PAGE STONEHAM 11X14 PANELS / PANNEAUX 29 3 4 30 7 8 1179 93 5 8 2541 83 5 16 2547 37 3 16 2177 62 1 8 2178 62 1 8 2179 49 15 16 PASSIVE ACTIVE 2550 2320...

  • Page 7: Accessories / Accessoires

    PAGE STONEHAM 11X14 ROOFING / TOITURE 14' SIDE 2950 2948 2947 2949 2951 11' SIDE 2966 2952 2947 2953 2967 ACCESSORIES / ACCESSOIRES 20 5 8 2111 2112 TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1 MEASUREMENTS ARE APPROXIMATE MESURES SONT APPROXIMATIVES...
  • Page 9 HARDWARE STONEHAM 11X14 ROBERTSON BIT/ EMBOUT ROBERTSON 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) 212X 1/4" HEX HEAD BIT/ EMBOUT A TETE 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) HEXAGONALE DE 1/4 PO 3 1/2" #10 FLAT HEAD (#2 ROBERTSON)
  • Page 11 STEP 1 STONEHAM 11X14 ATTACH TOGETHER TRUSS FRAME PIECES (DC 2191, 2192) THE COMPONENTS SHOULD BE FIT AS TIGHTLY TOGETHER AS POSSIBLE. REPEAT THIS TO BUILD A TOTAL OF TWO SHORT TRUSS FRAME LENGTHS. DC-2192 DC-2195 DC-2194 ATTACH TOGETHER TRUSS FRAME PIECES (DC 2191, 2194, 2195)
  • Page 12 STEP 2 STONEHAM 11X14 FLIP THE FOUR TRUSS FRAME LENGTHS OVER AND LAY THEM OUT TO FORM A RECTANGLE. ATTACH THE CORNERS TOGETHER AS SHOWN IN DIAGRAM 1. FASTEN ALL FOUR CORNERS IN THE SAME FASHION. SHORT TRUSS FRAME LENGTH...
  • Page 13 STEP 3 STONEHAM 11X14 ATTACH FOUR TRUSS FRAME BRACES (DC 1304). KEEP THE BRACES TIGHT TO THE BOTTOM PLATE. THIS STEP COMPLETES THE TRUSS FRAME. DC-1304 DC-1304 DC-1304 DC-1304 MAKE REFERENCE MARKS LAY THE SQUARED TRUSS FRAME ASSEMBLY AT THE EXACT LOCATION YOU WISH YOUR GAZEBO TO BE.
  • Page 14 STEP 4 STONEHAM 11X14 LAY THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) FLAT ON THE GROUND. DC-2086 DC-2087 TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 15 STEP 5 STONEHAM 11X14 PLACE THE LEFT DOOR UPRIGHT (DC 2081) ON TOP OF THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. DC-2081 FLUSH FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 16 STEP 6 STONEHAM 11X14 PLACE THE RIGHT DOOR UPRIGHT (DC 2099) ON TOP OF THE HEADER (DC 2086) AND THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. FLUSH DC-2099 FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 17 STEP 7 STONEHAM 11X14 CONTINUE TO FASTEN THE HEADER (DC 2086) AND THRESHOLD (DC 2087) TO THE LEFT AND RIGHT UPRIGHTS (DC 2081, DC 2099) USING 2 1/2" SCREWS AT THE LOCATIONS SHOWN. FLUSH TOP OF DOOR OUTSIDE OF DOOR...

  • Page 18: Section View

    STEP 8 STONEHAM 11X14 ALL 40" WALL PANELS AND 80" DOOR PANEL ASSEMBLIES USE FOAM ALL 40" WALL PANELS AND 80" DOOR PANEL ASSEMBLIES USE FOAM GASKET (DC 1850). ADHERE TO LEFT EDGE OF ALL PANELS. GASKET (DC 1850). ADHERE TO LEFT EDGE OF ALL PANELS.
  • Page 19 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP ONE AND TWO OF THE BAY INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 20 STEP 9 STONEHAM 11X14 ATTACH WALL PANELS (DC 1973 and/or 2124) OR DOOR PANEL ASSEMBLY TO EACH CORNER POST (DC 1039). NOTE THE SCREW LOCATIONS IN THE DIAGRAM. WALL PANELS ARE TO BE FLUSH WITH THE INSIDE OF THE POST AND FLUSH AT TOP AND BOTTOM.

  • Page 21: Reference Mark

    STEP 10 STONEHAM 11X14 USING 2 1/2" PANHEAD ROBERTSON SCREWS ATTACH THE REMAINDER WALL PANELS (DC 1971) AND THE DOOR PANEL (DC 1970). CONTINUE THE SAME SCREW PATTERN FROM THE PREVIOUS STEP. WALL PANELS ARE TO BE FLUSH WITH EACH OTHER AND FLUSH AT TOP AND BOTTOM.
  • Page 22 STEP 11 STONEHAM 11X14 OPEN THE BOX LABELED DC 2140 AND LOCATE THE PASSIVE DOOR. PASSIVE DOOR ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 23 STEP 12 STONEHAM 11X14 LOCATE THE ACTIVE DOOR. ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. ACTIVE DOOR HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 24 STEP 13 STONEHAM 11X14 LOCATE THE DOOR HANDLE (DC 2386) AND ASSEMBLE THE LOCK ORIENTATE FLAT SURFACES REMOVE KEY FROM LOCK ASSEMBLY FLAT SURFACES TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 25 STEP 14 STONEHAM 11X14 ASSEMBLE AND ATTACH THE DOOR HANDLE AND LATCH (DC 2386) TO THE ACTIVE (RIGHT) DOOR. USE THE HARDWARE PACK PROVIDED. INSERT THE 2 13/16" SQUARE SPINDLE INTO THE HANDLE. TIGHTEN THE SET SCREW WITH THE ALLEN KEY...
  • Page 26 STEP 15 STONEHAM 11X14 SLIDE THE TWO 1-3/4" CARRIAGE BOLTS THROUGH THE TWO HOLES OF THE PASSIVE LEFT DOOR FROM THE OUTSIDE IN. SLIP THE STRIKE PLATE (DC 2387) OVER THE ENDS OF THE BOLTS. TIGHTEN THE STRIKE PLATE TO...

  • Page 27: Door Alignment

    STEP 16 STONEHAM 11X14 DOOR ALIGNMENT LATCH ALIGNMENT TO ADJUST AND ALIGN THE DOORS, USE THE BLACK PLASTIC SHIMS AS PROVIDED LOOSEN THE NUTS FOUND AT THE STRIKE PLATE (DC 2387). MOVE THE STRIKE PLATE (DC 2387) LEFT OR RIGHT UNTIL WORK ON ONE HINGE AT A TIME THE DOORS CLOSE FIRMLY.
  • Page 28 STEP 17 STONEHAM 11X14 LIFT THE TRUSS FRAME ASSEMBLY AND CAREFULLY PLACE IT ON TOP OF THE STRUCTURE. THE OUTSIDE SURFACE OF THE WALLS ARE TO BE FLUSH WITH THE OUTSIDE OF THE TRUSS FRAME ASSEMBLY. USE THREE SCREWS PER WALL PANEL AND SIX PER DOOR PANEL.
  • Page 29 STEP 18 STONEHAM 11X14 BUILD THE SKYLIGHT FRAME USING DC 2010, 2011, 2012. 34 [864mm] 34 [864mm] SERIAL AND SNOW TAGS FLUSH 2 1/2" ROBERTSON SCREWS 20 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 30 STEP 19 STONEHAM 11X14 PLACE SKYLIGHT FRAME ON A FLAT SURFACE. ATTACH COMMON RAFTERS (DC 2550) TO THE SKYLIGHT FRAME. THE BOTTOM EDGE OF THE RAFTERS ARE TO BE FLUSH WITH THE BOTTOM OF THE SKYLIGHT FRAME. 18 3 4 [476mm]...
  • Page 31 STEP 20 STONEHAM 11X14 FLIP SKYLIGHT FRAME AND RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME. SQUARE THE RAFTERS TO THE TRUSS FRAME. DO NOT FASTEN RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW TOLL FREE: 1-877-795-7423...
  • Page 32 STEP 21 STONEHAM 11X14 FASTEN HIP RAFTER EXTENSION (DC 2111) TO HIP RAFTERS (DC 2551) REPEAT THIS STEP ON ALL FOUR HIP RAFTERS. FLUSH DC-2111 DC-2551 SECTION VIEW DC-2111 DC-2551 TOP PLAN VIEW 1 1/2" ROBERTSON SCREWS 16 req TOLL FREE: 1-877-795-7423...
  • Page 33 STEP 22 STONEHAM 11X14 ATTACH HIP RAFTERS (DC 2551). THE BOTTOM EDGE OF THE RAFTER IS TO BE FLUSH WITH THE BOTTOM EDGE OF THE SKYLIGHT FRAME. DC-2551 SKYLIGHT FRAME ENDS OF RAFTER ARE FLUSH TO THE BOTTOM OF THE SUPPORT...
  • Page 34 STEP 23 STONEHAM 11X14 FASTEN HIP RAFTER EXTENSION (DC 2112) TO HIP RAFTER ASSEMBLY (DC 2111) REPEAT THIS STEP ON ALL FOUR HIP RAFTERS. 2 1/2" ROBERTSON SCREWS 8 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 35 STEP 24 STONEHAM 11X14 FASTEN LEFT RIGHT AND MIDDLE PANEL SUPPORTS (DC2177, DC2178 & DC2179) TO THE TRUSS FRAME. DC-2179 DC-2178 DC-2178 DC-2179 FLUSH DC-2177 DC-2177 FLUSH DC-2177 DC-2178 DC-2179 DC-2179 DC-2178 DC-2178 DC-2179 SECTION VIEW TOP PLAN VIEW 2 1/2" ROBERTSON SCREWS 38 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...

  • Page 36: Front View

    STEP 25 STONEHAM 11X14 SKYLIGHT FRAME DC-2548 DC-2541 FRONT VIEW DC-2541 FASTEN THE SHORT ROOF STRAPPING (DC 2548) TO THE RAFTERS AND TIGHT TO THE SKYLIGHT FRAME. FASTEN THE LONG ROOF STRAPPING (DC 2541) TO THE RAFTERS. THE ANGLE CUTS ARE TO BE FACE DOWN AND LOCATED AT THE HIP RAFTERS.
  • Page 37 STEP 26 STONEHAM 11X14 SKYLIGHT FRAME DC-2547 DC-2545 DC-2542 FRONT VIEW FASTEN THE SHORT ROOF STRAPPING (DC 2547) TO THE RAFTERS AND TIGHT TO THE SKYLIGHT FRAME. DC-2545 DC-2542 FASTEN THE MID-ROOF STRAPPING (DC 2545) RIGHT AND (DC 2542) LEFT TO THE RAFTERS.
  • Page 38 STEP 27 STONEHAM 11X14 SECURE THE RAFTERS TO THE TRUSS FRAME. DETAIL - 1 DETAIL - 2 SECURE THE COMMON RAFTERS AS SHOWN IN DETAIL 1. DETAIL - 1 SECURE THE HIP RAFTERS AS SHOW IN DETAIL - 2. DETAIL - 2 3"...
  • Page 39 STEP 28 STONEHAM 11X14 FASTEN THE HIP COVERS (DC 2355) TO THE STRAPPING AND PANEL SUPPORTS. ALIGN THE HIP COVER SO IT IS CENTRED ON THE RAFTER AND THE BOTTOM JUST TOUCHES THE OUTSIDE OF THE PANEL SUPPORT, AS SHOWN.
  • Page 40 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP THREE, FOUR FIVE AND SIX OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 41 STEP 29 STONEHAM 11X14 ATTACH CLOSURE TABS (DC 2823) TO THE UNDERSIDE OF THE ROOFING SHEETS. CLOSURE TABS ARE TO BE IN-LINE WITH THE FIRST ROW OF PUNCHED SCREW LOCATIONS. TRIM CLOSURE TABS FOR NARROW ROOF PANELS. DC-2823 CLOSURE TAB...
  • Page 42 STEP 30 STONEHAM 11X14 PLACE ROOF SHEETS (DC 2947 & DC 2949) ON THE ROOF STRAPPING, AND EVENLY ON HIP RAFTER. OVERLAP ONE RIB AS SHOWN. ALIGN TOP OF SHEET TO THE EDGE OF THE TOP STRAP. SHEETS MUST NOT EXCEED PAST ONE-HALF OF THE WIDTH OF THE HIP RAFTERS.
  • Page 43 STEP 31 STONEHAM 11X14 PLACE ROOF SHEETS (DC 2947 & DC 2948) ON THE ROOF STRAPPING, AND EVENLY ON HIP RAFTER. OVERLAP ONE RIB AS SHOWN. ALIGN TOP OF SHEET TO THE EDGE OF THE TOP STRAP. SHEETS MUST NOT EXCEED PAST ONE-HALF OF THE WIDTH OF THE HIP RAFTER.
  • Page 44 STEP 32 STONEHAM 11X14 PLACE SMALL OUTER ROOF SHEET (DC 2950) ON THE ROOF STRAPPING. OVERLAP ONE RIB AS SHOWN. PLACE SMALL OUTER ROOF SHEET (DC 2951) ON THE ROOF STRAPPING. UNDERLAP ONE RIB AS SHOWN. ALIGN BOTTOM OF SHEETS TO PREVIOUSLY INSTALLED SHEETS.
  • Page 45 STEP 33 STONEHAM 11X14 REPEAT STEPS 19-21 FOR THE OPPOSITE REMAINING SECTION OF ROOF. ONLY FASTEN THROUGH PRE-PUNCHED HOLE LOCATIONS. NOTE: ONLY PUT SCREWS AT PRE-PUNCHED LOCATIONS. NOTE: FASTEN ALL ROOFING SCREWS PRIOR TO STEPPING ON ROOF. RESTING EVENLY ON HIP RAFTERS FLUSH 1"...
  • Page 46 STEP 34 STONEHAM 11X14 PLACE ROOF SHEETS (DC 2947 & DC 2953) ON THE ROOF STRAPPING. ALIGN TOP OF SHEET TO THE EDGE OF THE TOP STRAP. SHEETS MUST NOT EXCEED PAST ONE-HALF OF THE WIDTH OF THE HIP RAFTERS.
  • Page 47 STEP 35 STONEHAM 11X14 PLACE SMALL OUTER ROOF SHEET (DC 2952) ON THE ROOF STRAPPING. UNDERLAP ONE RIB AS SHOWN. ALIGN BOTTOM OF SHEETS TO PREVIOUSLY INSTALLED SHEETS. SHEETS MUST NOT EXCEED PAST ONE-HALF OF THE WIDTH OF THE HIP RAFTER.
  • Page 48 STEP 36 STONEHAM 11X14 PLACE SMALL OUTER ROOF SHEET (DC 2966) ON THE ROOF STRAPPING. OVERLAP ONE RIB AS SHOWN. PLACE SMALL OUTER ROOF SHEET (DC 2967) ON THE ROOF STRAPPING. UNDERLAP ONE RIB AS SHOWN. ALIGN BOTTOM OF SHEETS TO PREVIOUSLY INSTALLED SHEETS.
  • Page 49 STEP 37 STONEHAM 11X14 REPEAT STEPS 23-25 FOR THE OPPOSITE REMAINING SECTION OF ROOF ONLY FASTEN THROUGH PRE-PUNCHED HOLE LOCATIONS. NOTE: ONLY PUT SCREWS AT PRE-PUNCHED LOCATIONS. NOTE: FASTEN ALL ROOFING SCREWS PRIOR TO STEPPING ON ROOF. RESTING EVENLY RESTING EVENLY...
  • Page 50 STEP 38 STONEHAM 11X14 CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. CENTRED ON JOINT. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING SHEET.
  • Page 51 STEP 39 STONEHAM 11X14 ASSEMBLE THE SKYLIGHT (DC 1840, 1844, 1845) 3" HEX HEAD SCREWS 16 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 52 STEP 40 STONEHAM 11X14 FASTEN FOAM WEATHER GASKET (DC 1850) TO THE PERIMETER OF THE SKYLIGHT ALONG THE INSIDE EDGE. DC-1850 TRIM AS NEEDED TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 53 STEP 41 STONEHAM 11X14 FASTEN THE ACRYLIC SKYLIGHT PANEL (DC 1846) TO THE SKYLIGHT FRAME. CAREFULLY PEEL PROTECTIVE COATING OFF BOTH SIDES OF THE ACRYLIC PANEL. SCREWS MUST BE CENTRED IN HOLES ALIGN THE PRE-DRILLED HOLES OF THE ACRYLIC WITH THE GROOVE FOUND IN THE MIDDLE OF THE SKYLIGHT FRAME.
  • Page 54 STEP 42 STONEHAM 11X14 COMPLETELY FASTEN THE ACRYLIC PANEL TO THE SKYLIGHT FRAME USING THE PRE-DRILLED HOLES. SCREWS MUST BE CENTRED IN HOLES THE ACRYLIC PANEL EXPANDS AND CONTRACTS AT A DIFFERENT RATE THAN THE SKYLIGHT FRAME. IF THE SHANK OF THE SCREW IS TIGHT AGAINST THE ACRYLIC PANEL, CRACKING WILL OCCUR.
  • Page 55 STEP 43 STONEHAM 11X14 PLACE THE SKYLIGHT ASSEMBLY INTO POSITION ON TOP OF THE SKYLIGHT FRAME. SKYLIGHT ASSEMBLY FASTEN THE SKYLIGHT ASSEMBLY TO THE SKYLIGHT FRAME FROM THE INSIDE. SKYLIGHT FRAME SECTION VIEW 2 1/2" BLACK PAN HEAD ROBERTSON SCREWS 10 req TOLL FREE: 1-877-795-7423 0272_Stoneham_11x14_Instructions_V1.1...
  • Page 56 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP SEVEN AND EIGHT OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 57 STEP 44 STONEHAM 11X14 ALIGN THE HIP CAP (DC 1465) SO IT IS CENTERED ON THE HIP JOINT. TOP RIB FASTEN THROUGH THE HIP CAP INTO THE TOP RIBS OF THE ROOFING SHEETS ONLY. DO NOT OVER-TIGHTEN SCREWS. SCREWS MUST BE FASTENED THROUGH THE TOP RIBS OF THE ROOFING SHEET ONLY.
  • Page 58 STEP 45 STONEHAM 11X14 DETERMINE WHICH SIDE OF THE WINDOW YOU WOULD LIKE THE BI-FOLD WINDOW PANELS TO COLLAPSE TO. OPEN THE WINDOW ALL THE WAY TO ONE SIDE. WHEN THE WINDOW IS COMPLETELY OPEN SLIDE THE NYLON STOPPERS IN THE FRAME TIGHT AGAINST THE STATIONARY SIDE OF THE WINDOW AND TIGHTEN THE SET SCREW.
