VISSCHER JASPER 0097 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

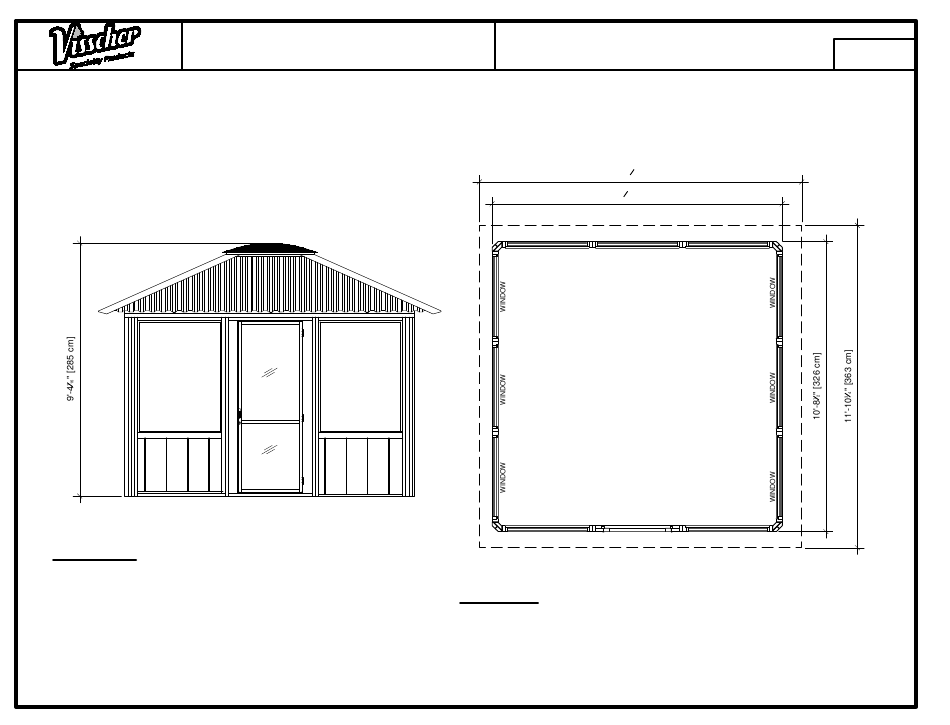

Front Elevation
0097_Jasper_11x11_Instructions_V1.2
INSTRUCTIONS
EN
JASPER
11'-10
3
" [363 cm]
4
10'-8
1
" [326 cm]
2
WINDOW
WINDOW
WINDOW
SINGLE DOOR
Footprint Plan
TOLL FREE/SANS FRAIS: 1-877-795-7423
CODE: 0097
CODE: 0197
WINDOW
WINDOW

Advertisement

loading
Need help?

Need help?

Do you have a question about the JASPER 0097 and is the answer not in the manual?

Questions and answers

Related Manuals for VISSCHER JASPER 0097

Summary of Contents for VISSCHER JASPER 0097

  • Page 1 JASPER INSTRUCTIONS CODE: 0097 CODE: 0197 11'-10 " [363 cm] 10'-8 " [326 cm] WINDOW WINDOW WINDOW WINDOW SINGLE DOOR WINDOW Front Elevation Footprint Plan 0097_Jasper_11x11_Instructions_V1.2 TOLL FREE/SANS FRAIS: 1-877-795-7423...
  • Page 3 PAGE JASPER CODE: 0097 CODE: 0197 PANELS / PANNEAUX 3'-4" 3'-4" 2'-11" 2'-11" 7'-1" 1179 7'-10" 1244 5'-2" *Optional/Optionnel 1570 5'-2" 1970 1971 1743 1747 1571 4'-8" 1675 TRUSS FRAME / FERME DE TOIT 6'-3" 1676 3'-1" 2'-10" 1681 1304 3'-9"...
  • Page 5 JASPER HARDWARE CODE: 0097 CODE: 0197 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) ROBERTSON BIT/ EMBOUT ROBERTSON 157X 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) 1/4" HEX HEAD BIT/ HEXAGONALE DE 1/4 PO 3 1/2" #10 FLAT HEAD (#2 ROBERTSON) 2 1/2"...
  • Page 7 ESTIMATED ASSEMBLY TIME: 6 HOURS IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, PHILLIPS SCREW DRIVER CONTACT YOUR VISSCHER DEALER. FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW. PLEASE HAVE SERIAL NUMBER READY TO ENSURE QUICK SERVICE. KNIFE 0097_Jasper_11x11_Instructions_V1.2...
  • Page 9 Step One THE JASPER ATTACH TOGETHER ONE RIGHT TRUSS FRAME PIECE (DC 1352) AND ONE LEFT TRUSS FRAME PIECE (DC 1351). THE COMPONENTS SHOULD BE FIT AS TIGHTLY TOGETHER AS POSSIBLE. REPEAT TO BUILD A TOTAL OF FOUR TRUSS FRAME LENGTHS. DC-1352 DC-1351 3 1/2"...
  • Page 10 Step Two THE JASPER FLIP THE FOUR TRUSS FRAME LENGTHS OVER AND LAY THEM OUT TO FORM A SQUARE. ATTACH THE CORNERS TOGETHER AS SHOWN IN DIAGRAM 1. FASTEN ALL FOUR CORNERS IN THE SAME FASHION. TRUSS FRAME LENGTH TRUSS FRAME LENGTH TRUSS FRAME LENGTH DIAGRAM 1 THE TRUSS FRAME ASSEMBLY MUST BE SQUARE...
  • Page 11 Step Three THE JASPER ATTACH FOUR TRUSS FRAME BRACES (DC-1304). KEEP THE BRACES TIGHT TO THE BOTTOM PLATE. THIS STEP COMPLETES THE TRUSS FRAME. DC-1304 THE TRUSS FRAME ASSEMBLY MUST REMAIN SQUARE. DOUBLE CHECK CORNER-TO-CORNER MEASUREMENTS ONCE DC-1304 DC-1304 BRACES ARE ATTACHED. MAKE REFERENCE MARKS DC-1304 LAY THE SQUARED TRUSS FRAME ASSEMBLY AT THE EXACT...
  • Page 12 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP ONE OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 13 Step Four THE JASPER ATTACH TWO WALL PANELS (DC 1971) TO EACH CORNER POST (DC 1042). NOTE THE SCREW LOCATIONS IN THE DIAGRAM. WALL PANELS ARE TO BE FLUSH WITH THE OUTSIDE OF THE POST AND FLUSH AT TOP AND BOTTOM. IF YOU WANT THE DOOR TO BE LOCATED TIGHT TO A CORNER, SUBSTITUTE A WALL PANEL FOR THE DOOR PANEL (DC 1970).
  • Page 14 Step Five THE JASPER ATTACH THE REMAINDER WALL PANELS (DC 1971) AND THE DOOR PANEL (DC 1970). CONTINUE THE SAME SCREW PATTERN FROM THE PREVIOUS STEP. WALL PANELS ARE TO BE FLUSH WITH EACH OTHER AND FLUSH AT TOP AND BOTTOM. DC-1971 REFERENCE MARK REFERENCE MARK...
  • Page 15 Step Six THE JASPER LIFT THE TRUSS FRAME ASSEMBLY AND CAREFULLY PLACE IT ON TOP OF THE STRUCTURE. THE OUTSIDE SURFACE OF THE WALLS ARE TO BE FLUSH WITH THE OUTSIDE OF THE TRUSS FRAME ASSEMBLY. SCREW DOWN THROUGH THE PLATE OF THE TRUSS FRAME ASSEMBLY INTO THE TOP OF EACH WALL AND DOOR PANEL.
  • Page 16 Step Seven THE JASPER BUILD THE SKYLIGHT FRAME USING FOUR SKYLIGHT PIECES (DC 1681). IT IS IMPORTANT TO "CHASE" CORNERS AS SHOWN BELOW. 2 1/2" ROBERTSON SCREWS 12 req TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...

  • Page 17: Section View

    Step Eight THE JASPER PLACE SKYLIGHT FRAME ON A FLAT SURFACE. ATTACH COMMON RAFTERS (DC 1675) TO THE SKYLIGHT FRAME, CENTRED ON EACH SIDE. THE BOTTOM EDGE OF THE RAFTERS ARE TO BE FLUSH WITH THE BOTTOM OF THE SKYLIGHT FRAME. DC-1675 DC-1675 FLUSH FLUSH...
  • Page 18 Step Nine THE JASPER FLIP SKYLIGHT FRAME AND RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME. CENTRE THE RAFTERS ON THE TRUSS FRAME. DO NOT FASTEN RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW 0097_Jasper_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
  • Page 19 Step Ten THE JASPER ATTACH HIP RAFTERS (DC 1676). THE BOTTOM EDGE OF THE RAFTER IS TO BE FLUSH WITH THE BOTTOM EDGE OF THE SKYLIGHT FRAME. DC - 1676 SKYLIGHT FRAME ENDS OF RAFTER ARE FLUSH TO THE BOTTOM OF THE SUPPORT SECTION VIEW TOP PLAN VIEW...
  • Page 20 Step Eleven THE JASPER FASTEN LEFT AND RIGHT PANEL SUPPORTS (DC1570 & DC1571) TO THE TRUSS FRAME. DC-1570 DC-1571 DC-1570 DC-1571 FLUSH FLUSH DC-1570 DC-1571 DC-1571 DC-1570 SECTION VIEW DC-1571 DC-1570 2 1/2" ROBERTSON SCREWS 32 req TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...
  • Page 21 Step Twelve THE JASPER SKYLIGHT FRAME DC-1758 DC-1244 RAFTER BLOCK FRONT VIEW DC-1244 FASTEN THE SHORT ROOF STRAPPING (DC 1758) TO THE RAFTERS AND TIGHT TO THE SKYLIGHT FRAME. FASTEN THE LONG ROOF STRAPPING (DC 1244) TO THE RAFTERS AND TIGHT TO THE RAFTER BLOCK. THE ANGLE CUTS ARE TO BE FACE DOWN AND LOCATED AT THE HIP RAFTERS.
  • Page 22 Step Thirteen THE JASPER DETAIL - 1 SECURE THE RAFTERS TO THE TRUSS FRAME. DETAIL - 2 SECURE THE COMMON RAFTERS AS SHOWN IN DETAIL 1. DETAIL - 1 SECURE THE HIP RAFTERS AS SHOW IN DETAIL - 2. DETAIL - 2 3"...
  • Page 23 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP THREE OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 24 Step Fourteen THE JASPER ATTACH CLOSURE TABS (DC 1834) TO THE UNDERSIDE OF THE ROOFING SHEETS. CLOSURE TABS ARE TO BE IN-LINE WITH THE FIRST ROW OF PUNCHED SCREW LOCATIONS. TRIM CLOSURE TABS FOR NARROW ROOF PANELS. DC-1834 CLOSURE TAB DC-1834 ROOFING SHEET SECTION VIEW...
  • Page 25 Step Fifteen THE JASPER LAY ROOFING SHEETS (DC 1835, 1854, 1855, 1856) ON ONE SIDE OF THE ROOF. DC-1853 IMPORTANT: MIDDLE SHEETS ARE TO BE TIGHT TO THE OUTSIDE EDGE OF THE SKYLIGHT FRAME. FASTEN ALL SCREWS PRIOR TO STEPPING ON ROOF. THE OVERHANG IS TO BE EQUAL OVER THE ENTIRE EAVE.
  • Page 26 Step Sixteen THE JASPER ASSEMBLE THE SKYLIGHT (DC 1840, 1841). 2 1/2" HEX HEAD SCREWS 4 req TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...
  • Page 27 Step Seventeen THE JASPER FASTEN FOAM WEATHER GASKET (DC 1850) TO THE PERIMETER OF THE SKYLIGHT ALONG THE INSIDE EDGE. DC-1850 TRIM AS NEEDED TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...
  • Page 28 Step Eighteen THE JASPER FASTEN THE ACRYLIC SKYLIGHT PANEL (DC 1842) TO THE SKYLIGHT FRAME. CAREFULLY PEEL PROTECTIVE COATING OFF BOTH SIDES OF THE ACRYLIC PANEL ALIGN THE PRE-DRILLED HOLES OF THE ACRYLIC WITH THE PRE-DRILLED HOLES OF THE SKYLIGHT FRAME. SCREWS MUST BE CENTRED IN HOLES THE ACRYLIC PANEL EXPANDS AND CONTRACTS AT A DIFFERENT RATE THAN THE SKYLIGHT FRAME.
  • Page 29 Step Nineteen THE JASPER COMPLETELY FASTEN THE ACRYLIC PANEL TO THE SKYLIGHT FRAME USING THE PRE-DRILLED HOLES. SCREWS MUST BE CENTRED IN HOLES THE ACRYLIC PANEL EXPANDS AND CONTRACTS AT A DIFFERENT RATE THAN THE SKYLIGHT FRAME. IF THE SHANK OF THE SCREW IS TIGHT AGAINST THE ACRYLIC PANEL, CRACKING WILL OCCUR.
  • Page 30 Step Twenty THE JASPER PLACE THE SKYLIGHT ASSEMBLY INTO POSITION ON TOP OF THE SKYLIGHT FRAME. FASTEN THE SKYLIGHT ASSEMBLY TO THE SKYLIGHT FRAME FROM THE INSIDE. USE THREE SCREWS ON-ANGLE PER SIDE. SECTION VIEW 1 1/2" ROBERTSON SCREWS 12 req TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...
  • Page 31 Step Twenty-one THE JASPER LAY ROOFING SHEETS (DC 1835, 1854, 1855, 1856) ON THE LAST SIDE OF THE ROOF. DC-1853 IMPORTANT: MIDDLE SHEETS ARE TO BE TIGHT TO THE OUTSIDE EDGE OF THE SKYLIGHT FRAME AND BENEATH THE SKYLIGHT FLASHING. FASTEN ALL SCREWS PRIOR TO STEPPING ON ROOF.

  • Page 32: Sealing Tape

    Step Twenty Two THE JASPER CAREFULLY PEEL THE BACKER AND PLACE THE SEALING TAPE (DC-2033) UNDER THE SKYLIGHT FRAME FLASHING AS SHOWN IN DETAIL 1 SEALING TAPE DC - 2033 TOLL FREE: 1-877-795-7423 0097_Jasper_11x11_Instructions_V1.2...
  • Page 33 Step Twenty Three THE JASPER CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC - 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING SHEET AS SHOWN IN DETAIL 1 REPEAT THIS ON ALL FOUR SIDES CENTRED ON JOINT.
  • Page 34 Step Twenty Four THE JASPER PLACE THE METAL HIP CAPS ON EACH CORNER OF THE ROOF AS SHOWN. SCREWS MUST BE FASTENED PLACE EACH CAP SO THAT THE TOP OF THE CAP FITS TIGHT INTO THE CORNER OF THROUGH THE TOP RIBS OF THE THE SKYLIGHT FRAME UNDER THE SKYLIGHT FLASHING.
  • Page 35 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP SEVEN OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 36 Step Twenty-three THE JASPER ASSEMBLE AND ATTACH THE DOOR HANDLE AND LATCH (DC 2008) TO THE DOOR. USE THE HARDWARE PACK PROVIDED. INSERT THE THUMB-BUTTON INTO THE HANDLE. INSERT THE FLAT METAL BAR INTO THE THUMB BUTTON. SLIDE THE SPRING OVER THE FLAT METAL BAR. PRESS THIS ASSEMBLY AGAINST THE DOOR AT THE THREE HOLES FIT THE LATCH TO THE OPPOSITE SIDE OF THE DOOR.
  • Page 37 Step Twenty Six THE JASPER INSTALL SCREEN FRAMES (DC 1747) INTO THE WALL PANELS. TURN CLIPS TO LOCK THE SCREEN FRAME IN PLACE. 0097_Jasper_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
