VISSCHER GRANADA Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
0226_Granada_AC_14x14_Instructions_V2.0
INSTRUCTIONS

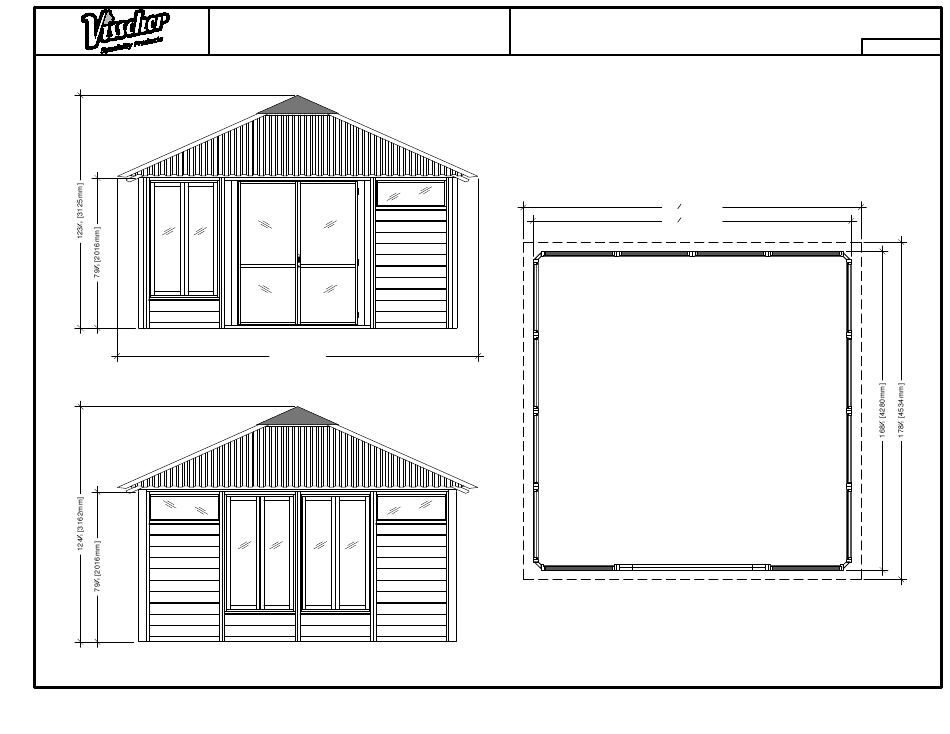

191 [4851mm]
EN
GRANADA
178
1
[4534mm]
2
168
1
[4280mm]
2
DOUBLE DOOR
TOLL FREE: 1-877-795-7423
CODE: 0226

Advertisement

loading
Need help?

Need help?

Do you have a question about the GRANADA and is the answer not in the manual?

Questions and answers

Related Manuals for VISSCHER GRANADA

Summary of Contents for VISSCHER GRANADA

  • Page 1 GRANADA INSTRUCTIONS CODE: 0226 [4534mm] [4280mm] 191 [4851mm] DOUBLE DOOR 0226_Granada_AC_14x14_Instructions_V2.0 TOLL FREE: 1-877-795-7423...
  • Page 3 PHILLIPS SCREW DRIVER PHILLIPS SCREW DRIVER ESTIMATED ASSEMBLY TIME: 8 HOURS IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, CONTACT YOUR VISSCHER DEALER. FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW. KNIFE KNIFE PLEASE HAVE SERIAL NUMBER READY TO ENSURE QUICK SERVICE.
  • Page 5 PAGE GRANADA CODE: 0226 PANELS / PANNEAUX 29 3 4 30 7 8 70 3 4 2406 96 1 16 2408 47 1 2 2410 47 1 2 2411 1416 PASSIVE ACTIVE 2140 2421 2422 48 13 16 2513 77 1 8...
  • Page 7 PAGE GRANADA CODE: 0226 ROOFING / TOITURE 2188 2186 2184 2185 2187 2189 0226_Granada_AC_14x14_Instructions_V2.0 TOLL FREE: 1-877-795-7423 MEASUREMENTS ARE APPROXIMATE MESURES SONT APPROXIMATIVES...
  • Page 9 GRANADA HARDWARE CODE: 0226 ROBERTSON BIT/ 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) EMBOUT ROBERTSON 231X 1/4" HEX HEAD BIT/ 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) EMBOUT A TETE HEXAGONALE DE 1/4 PO 3 1/2" #10 FLAT HEAD (#2 ROBERTSON) 2 1/2"...
  • Page 11 STEP 1 GRANADA ATTACH TOGETHER TRUSS FRAME PIECES (DC 1351, 1354 & 1355) THE COMPONENTS SHOULD FIT AS TIGHTLY TOGETHER AS POSSIBLE. REPEAT THIS TO BUILD A TOTAL OF FOUR TRUSS FRAME LENGTHS. DC-1355 DC-1354 DC-1351 3 1/2" ROBERTSON SCREWS 40 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 12 STEP 2 GRANADA FLIP THE FOUR TRUSS FRAME LENGTHS OVER AND LAY THEM OUT TO FORM A SQUARE. ATTACH THE CORNERS TOGETHER AS SHOWN IN DIAGRAM 1. FASTEN ALL FOUR CORNERS IN THE SAME FASHION. DIAGRAM 1 THE TRUSS FRAME ASSEMBLY MUST BE SQUARE MEASURE THE TRUSS FRAME TO VERIFY SQUARENESS.
  • Page 13 STEP 3 GRANADA ATTACH FOUR TRUSS FRAME BRACES (DC 1304). KEEP THE BRACES TIGHT TO THE BOTTOM PLATE. THIS STEP COMPLETES THE TRUSS FRAME. DC-1304 THE TRUSS FRAME ASSEMBLY MUST REMAIN SQUARE. DOUBLE CHECK CORNER-TO-CORNER MEASUREMENTS ONCE BRACES ARE ATTACHED.
  • Page 14 STEP 4 GRANADA LAY THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) FLAT ON THE GROUND. DC-2086 DC-2087 TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 15 STEP 5 GRANADA PLACE THE LEFT DOOR UPRIGHT (DC 2081) ON TOP OF THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. DC-2081 FLUSH FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 16 STEP 6 GRANADA PLACE THE RIGHT DOOR UPRIGHT (DC 2099) ON TOP OF THE HEADER (DC 2086) AND THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. FLUSH DC-2099 FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 17 STEP 7 GRANADA CONTINUE TO FASTEN THE HEADER (DC 2086) AND THRESHOLD (DC 2087) TO THE LEFT AND RIGHT UPRIGHTS (DC 2081, DC 2099) USING 2 1/2" SCREWS AT THE LOCATIONS SHOWN. FLUSH OUTSIDE OF DOOR TOP OF DOOR FRAME...
  • Page 18 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP ONE OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 19 STEP 8 GRANADA ATTACH WALL PANELS (DC 2421 and/or 2422) OR DOOR PANEL ASSEMBLY TO EACH CORNER POST (DC 1039). NOTE THE SCREW LOCATIONS IN THE DIAGRAM. WALL PANELS ARE TO BE FLUSH WITH THE INSIDE OF THE POST AND FLUSH AT TOP AND BOTTOM.
  • Page 20 STEP 9 GRANADA USING 2 1/2" PANHEAD ROBERTSON SCREWS ATTACH THE REMAINDER WALL PANELS (DC 2120) AND THE DOOR PANEL. CONTINUE THE SAME SCREW PATTERN FROM THE PREVIOUS STEP. WALL PANELS ARE TO BE FLUSH WITH EACH OTHER AND FLUSH AT TOP AND BOTTOM.
  • Page 21 STEP 10 GRANADA OPEN THE BOX LABELED DC 2140 AND LOCATE THE PASSIVE DOOR. ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. PASSIVE DOOR HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 22 STEP 11 GRANADA LOCATE THE ACTIVE DOOR. ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE ACTIVE DOOR PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 23 STEP 12 GRANADA LOCATE THE DOOR HANDLE (DC 2386) AND ASSEMBLE THE LOCK ORIENTATE FLAT SURFACES REMOVE KEY FROM LOCK ASSEMBLY FLAT SURFACES TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 24 STEP 13 GRANADA ASSEMBLE AND ATTACH THE DOOR HANDLE AND LATCH (DC 2386) TO THE ACTIVE (RIGHT) DOOR. USE THE HARDWARE PACK PROVIDED. INSERT THE 2 13/16" SQUARE SPINDLE INTO THE HANDLE. TIGHTEN THE SET SCREW WITH THE ALLEN KEY...
  • Page 25 STEP 14 GRANADA SLIDE THE TWO 1-3/4" CARRIAGE BOLTS THROUGH THE TWO HOLES OF THE PASSIVE LEFT DOOR FROM THE OUTSIDE IN. SLIP THE STRIKE PLATE (DC 2387) OVER THE ENDS OF THE BOLTS. TIGHTEN THE STRIKE PLATE TO THE DOOR WITH WASHERS AND NUTS...

  • Page 26: Door Alignment

    STEP 15 GRANADA DOOR ALIGNMENT LATCH ALIGNMENT TO ADJUST AND ALIGN THE DOORS, USE THE BLACK PLASTIC SHIMS AS PROVIDED LOOSEN THE NUTS FOUND AT THE STRIKE PLATE (DC 2387). MOVE THE STRIKE PLATE (DC 2387) LEFT OR RIGHT UNTIL WORK ON ONE HINGE AT A TIME THE DOORS CLOSE FIRMLY.
  • Page 27 STEP 16 GRANADA INSTALL FILLER STRIPS FOR PANEL JOINTS UNWRAP THE FILLER STRIPS (DC 2069). DC-2069 SLIDE ONE FILLER STRIP IN EACH PANEL JOINT. THE FILLER STRIPS WILL SIT LOOSE IN THE JOINTS. DC-2069 DC-2069 DC-2069 DC-2069 TOLL FREE: 1-877-795-7423...
  • Page 28 STEP 17 GRANADA LIFT THE TRUSS FRAME ASSEMBLY AND CAREFULLY PLACE IT ON TOP OF THE STRUCTURE. THE OUTSIDE SURFACE OF THE WALLS ARE TO BE FLUSH WITH THE OUTSIDE OF THE TRUSS FRAME ASSEMBLY. SCREW DOWN THROUGH THE PLATE OF THE TRUSS FRAME ASSEMBLY INTO THE TOP OF EACH WALL AND DOOR PANEL.

  • Page 29: Section View

    STEP 18 GRANADA PLACE PEAK FRAME (DC 1186) ON A FLAT SURFACE. ATTACH COMMON RAFTERS (DC 2406) TO THE PEAK FRAME (DC 1186), CENTRED ON EACH SIDE. THE BOTTOM EDGE OF THE RAFTERS ARE TO BE FLUSH WITH THE BOTTOM OF THE PEAK FRAME.
  • Page 30 STEP 19 GRANADA PLACE THE COLLAR TIES (DC 2513) TOGETHER AS SHOWN AND ATTACH EACH COLLAR TIE TO NEXT 2 11/16" FROM THE END WITH 2 1/2" HEX HEAD SCREWS AS SHOWN. DC-2513 2 11 DC-2513 16 " TOP PLAN VIEW 2 11 16 "...
  • Page 31 STEP 20 GRANADA ATTACH THE COLLAR TIE ASSEMBLY WITH FOUR 2 1/2" HEX HEAD SCREWS THOUGH EACH COLLAR TIE INTO EACH COMMON RAFTER, AS SHOWN IN THE DETAIL VIEW. DC-2513 DC-2513 SECTION VIEW DC-2513 LINE UP FLUSH 2 1/2" HEX HEAD SCREWS 16 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 32 STEP 21 GRANADA FLIP FRAME AND RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME. SQUARE THE RAFTERS TO THE TRUSS FRAME. DO NOT FASTEN RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW TOLL FREE: 1-877-795-7423...
  • Page 33 STEP 22 GRANADA ATTACH HIP RAFTERS (DC 2408). THE BOTTOM EDGE OF THE RAFTER IS TO BE FLUSH WITH THE BOTTOM EDGE OF THE PEAK FRAME. DO NOT SECURE THE RAFTERS TO THE TRUSS FRAME AT THIS TIME. RAFTER 2x6 PEAK FRAME...
  • Page 34 STEP 23 GRANADA ATTACH THE FOUR LEFT (DC 2411) AND FOUR RIGHT (DC 2410) JACK RAFTERS TO THE HIP RAFTERS AS SHOWN. PLACE THE JACK RAFTERS SO THEY LINE UP WITH THE HIP RAFTER, AS SHOWN IN DETAIL VIEW. DC-2410...
  • Page 35 STEP 24 GRANADA ATTACH ALL THE RAFTERS TO THE TRUSS FRAME FROM THE OUTSIDE OF THE GAZEBO. AS SHOWN IN SECTION DETAIL. BEFORE YOU ATTACH THE COMMON RAFTERS MAKE SURE THAT THE 45 [1143mm] 45 [1143mm] RAFTERS ARE POSITIONED IN THE CORRECT PLACE AS SHOWN. THE COMMON RAFTERS SHOULD BE CENTRED FROM THE CORNER ON THE SIDES.
  • Page 36 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP THREE OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 37 STEP 25 GRANADA FASTEN THE SHORT ROOF STRAPPING (DC 1440), TO THE RAFTERS AND TIGHT TO THE SKYLIGHT FRAME. FASTEN THE MID STRAPPING PIECES (DC 1442, 1443 & DC 1444) TO THE RAFTERS. PLACE THE BOTTOM TWO STRAPPING PIECES (DC-1449 & DC-1450) AT THE BOTTOM OF THE ROOF.
  • Page 38 STEP 26 GRANADA FASTEN THE HIP COVERS (DC 2359) TO THE STRAPPING AND PANEL SUPPORTS. ALIGN THE HIP COVER SO IT IS CENTRED ON THE RAFTER AND THE BOTTOM JUST TOUCHES THE OUTSIDE OF THE PANEL SUPPORT, AS SHOWN. DC-2359...
  • Page 39 STEP 27 GRANADA FASTEN HIP RAFTER EXTENSION (DC 2119) TO TRUSS FRAME ASSEMBLY. REPEAT THIS STEP ON ALL FOUR HIP RAFTERS. HIP RAFTER STRAPPING 2 1/2" ROBERTSON SCREWS 16 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 40 STEP 28 GRANADA ATTACH CLOSURE TABS (DC 1834) TO THE UNDERSIDE OF THE ROOFING SHEETS. CLOSURE TABS ARE TO BE IN-LINE WITH THE FIRST ROW OF PUNCHED SCREW LOCATIONS. TRIM CLOSURE TABS FOR NARROW ROOF PANELS. DC-1834 CLOSURE TAB DC-1834...
  • Page 41 STEP 29 GRANADA FASTEN THE ROOFING SHEETS (DC 2184, 2185, 2186, 2187, 2188 & 2189) TO THE ROOF STRUCTURE USING THE 1" ROOF SCREWS THROUGH THE PRE-PUNCHED HOLES. REPEAT THIS STEP ON ALL FOUR SIDES DC-2185 DO NOT OVERTIGHTEN SCREWS...

  • Page 42: Sealing Tape

    STEP 30 GRANADA CAREFULLY PEEL THE BACKER AND PLACE THE SEALING TAPE (DC 2033) ON TOP OF THE ROOFING SHEET. SEALING TAPE DC-2033 TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 43 STEP 31 GRANADA CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC - 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING...
  • Page 44 STEP 32 GRANADA PLACE THE PEAK CAP ASSEMBLY (DC 2278) INTO POSITION ON TOP OF THE FRAME. FASTEN THE PEAK CAP ASSEMBLY TO THE FRAME FROM THE INSIDE. USE THREE SCREWS ON-ANGLE PER SIDE. SECTION VIEW 1 1/2" ROBERTSON SCREWS 12 req TOLL FREE: 1-877-795-7423 0226_Granada_AC_14x14_Instructions_V2.0...
  • Page 45 STEP 33 GRANADA PLACE THE METAL HIP CAPS (DC 1416) ON EACH CORNER OF THE ROOF AS SHOWN. PLACE EACH CAP SO THAT THE TOP OF THE CAP FITS TIGHT INTO THE CORNER OF THE SKYLIGHT FRAME UNDER THE SKYLIGHT FLASHING. MAKE SURE THAT THE CAP IS SITTING CENTRED ON THE HIP, THEN ATTACH IT THROUGH THE ROOFING SHEET AND INTO THE STRAPPING.
  • Page 46 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP THREE AND FOUR OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 47 STEP 34 GRANADA DETERMINE WHICH SIDE OF THE WINDOW YOU WOULD LIKE THE BI-FOLD WINDOW PANELS TO COLLAPSE TO. OPEN THE WINDOW ALL THE WAY TO ONE SIDE. WHEN THE WINDOW IS COMPLETELY OPEN SLIDE THE NYLON STOPPERS IN THE FRAME TIGHT AGAINST THE STATIONARY SIDE OF THE WINDOW AND TIGHTEN THE SET SCREW.
