INSTRUCTIONS
BARCELONA
11'-10
3
" [363 cm]
4
10'-8
1
" [326 cm]
2

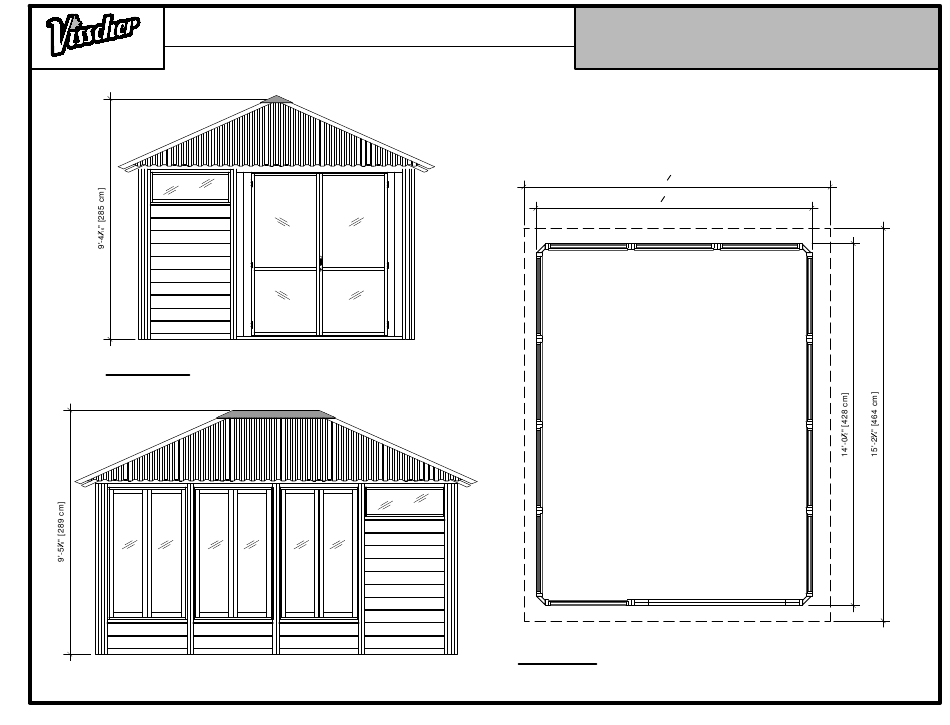

Front Elevation
DOUBLE DOOR
Footprint Plan
EN
TOLL FREE: 1-877-795-7423
0225_BarcelonaAC_Instructions_V4.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the BARCELONA and is the answer not in the manual?

Questions and answers

Related Manuals for VISSCHER BARCELONA

Summary of Contents for VISSCHER BARCELONA

  • Page 1 INSTRUCTIONS BARCELONA 11'-10 " [363 cm] 10'-8 " [326 cm] Front Elevation DOUBLE DOOR Footprint Plan TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 3 ESTIMATED ASSEMBLY TIME: 8 HOURS PHILLIPS SCREW DRIVER IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, CONTACT YOUR VISSCHER DEALER. FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW. KNIFE PLEASE HAVE SERIAL NUMBER READY TO ENSURE QUICK SERVICE.
  • Page 5 PAGE BARCELONA CODE: 0225 PANELS / PANNEAUX 29 3 4 30 7 8 93 5 8 2541 1465 44 5 16 2546 46 7 8 2545 PASSIVE ACTIVE 86 11 2140 2421 2422 2542 20 5 8 2069 2111 77 1 8...
  • Page 7 PAGE BARCELONA CODE: 0225 ROOFING / TOITURE 11' SIDE 1868 1866 1867 1869 14' SIDE 2162 2160 2164 2161 2163 0225_BarcelonaAC_Instructions_V4.0 TOLL FREE/SANS FRAIS: 1-877-795-7423 MEASUREMENTS ARE APPROXIMATE MESURES SONT APPROXIMATIVES...
  • Page 9 HARDWARE - QUINCAILLERIE BARCELONA ROBERTSON BIT/ EMBOUT ROBERTSON 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) 1/4" HEX HEAD BIT/ HEXAGONALE DE 1/4 PO 237X 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) 3 1/2" #10 FLAT HEAD (#2 ROBERTSON) INSTRUCTION MANUAL /...
  • Page 11 STEP 1 BARCELONA ATTACH TOGETHER TRUSS FRAME PIECES (DC 2191, 2192) THE COMPONENTS SHOULD BE FIT AS TIGHTLY TOGETHER AS POSSIBLE. REPEAT THIS TO BUILD A TOTAL OF TWO SHORT TRUSS FRAME LENGTHS. DC-2192 DC-2195 DC-2194 ATTACH TOGETHER TRUSS FRAME PIECES (DC 2191, 2194, 2195)
  • Page 12 STEP 2 BARCELONA FLIP THE FOUR TRUSS FRAME LENGTHS OVER AND LAY THEM OUT TO FORM A RECTANGLE. ATTACH THE CORNERS TOGETHER AS SHOWN IN DIAGRAM 1. FASTEN ALL FOUR CORNERS IN THE SAME FASHION. SHORT TRUSS FRAME LENGTH LONG TRUSS FRAME LENGTH...
  • Page 13 STEP 3 BARCELONA ATTACH FOUR TRUSS FRAME BRACES (DC 1304). KEEP THE BRACES TIGHT TO THE BOTTOM PLATE. THIS STEP COMPLETES THE TRUSS FRAME. DC-1304 DC-1304 THE TRUSS FRAME ASSEMBLY MUST REMAIN SQUARE. DOUBLE CHECK CORNER-TO-CORNER MEASUREMENTS ONCE BRACES ARE ATTACHED.
  • Page 14 STEP 4 BARCELONA LAY THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) FLAT ON THE GROUND. DC-2086 DC-2087 TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 15 STEP 5 BARCELONA PLACE THE LEFT DOOR UPRIGHT (DC 2081) ON TOP OF THE DOOR HEADER (DC 2086) AND DOOR THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. DC-2081 FLUSH FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 16 STEP 6 BARCELONA PLACE THE RIGHT DOOR UPRIGHT (DC 2099) ON TOP OF THE HEADER (DC 2086) AND THRESHOLD (DC 2087) ATTACH THE DOOR TO THE HEADER AND THRESHOLD USING 2 1/2" SCREWS. FLUSH DC-2099 FLUSH 2 1/2" ROBERTSON SCREWS 4 req TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 17 STEP 7 BARCELONA CONTINUE TO FASTEN THE HEADER (DC 2086) AND THRESHOLD (DC 2087) TO THE LEFT AND RIGHT UPRIGHTS (DC 2081, DC 2099) USING 2 1/2" SCREWS AT THE LOCATIONS SHOWN. FLUSH TOP OF DOOR OUTSIDE OF DOOR FRAME...
  • Page 18 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP ONE OF THE 11' BAY INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 19 STEP 8 BARCELONA ATTACH WALL PANELS (DC 2421 and/or 2422) OR DOOR PANEL ASSEMBLY TO EACH CORNER POST (DC 1039). NOTE THE SCREW LOCATIONS IN THE DIAGRAM. WALL PANELS ARE TO BE FLUSH WITH THE INSIDE OF THE POST AND FLUSH AT TOP AND BOTTOM.
  • Page 20 STEP 9 BARCELONA USING 2 1/2" PANHEAD ROBERTSON SCREWS ATTACH THE REMAINDER WALL PANELS (DC 2136, 2122) AND THE DOOR PANEL ASSEMBLY. CONTINUE THE SAME SCREW PATTERN FROM THE PREVIOUS STEP. REFERENCE MARK WALL PANELS ARE TO BE FLUSH WITH EACH OTHER AND FLUSH AT TOP REFERENCE MARK AND BOTTOM.
  • Page 21 STEP 10 BARCELONA OPEN THE BOX LABELED DC 2140 AND LOCATE THE PASSIVE DOOR. ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. PASSIVE DOOR HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 22 STEP 11 BARCELONA LOCATE THE ACTIVE DOOR. ORIENT THE DOOR UPRIGHT SO THE LARGE PANE OF GLASS IS ON TOP OF THE SMALL PANE OF GLASS. HAVE ON PERSON SUPPORT THE WEIGHT OF THE DOOR, WHILE THE SECOND PERSON ALIGNS THE HINGES WITH THE ACTIVE DOOR PRE-PUNCHED HOLES FOUND ON THE DOOR FRAME.
  • Page 23 STEP 12 BARCELONA LOCATE THE DOOR HANDLE (DC 2386) AND ASSEMBLE THE LOCK ORIENTATE FLAT SURFACES REMOVE KEY FROM LOCK ASSEMBLY FLAT SURFACES TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 24 STEP 13 BARCELONA ASSEMBLE AND ATTACH THE DOOR HANDLE AND LATCH (DC 2386) TO THE ACTIVE (RIGHT) DOOR. USE THE HARDWARE PACK PROVIDED. INSERT THE 2 13/16" SQUARE SPINDLE INTO THE HANDLE. TIGHTEN THE SET SCREW WITH THE ALLEN KEY...
  • Page 25 STEP 14 BARCELONA SLIDE THE TWO 1-3/4" CARRIAGE BOLTS THROUGH THE TWO HOLES OF THE PASSIVE LEFT DOOR FROM THE OUTSIDE IN. SLIP THE STRIKE PLATE (DC 2387) OVER THE ENDS OF THE BOLTS. TIGHTEN THE STRIKE PLATE TO THE DOOR WITH WASHERS AND NUTS...

  • Page 26: Door Alignment

    STEP 15 BARCELONA DOOR ALIGNMENT LATCH ALIGNMENT TO ADJUST AND ALIGN THE DOORS, USE THE BLACK PLASTIC SHIMS AS PROVIDED LOOSEN THE NUTS FOUND AT THE STRIKE PLATE (DC 2387). MOVE THE STRIKE PLATE (DC 2387) LEFT OR RIGHT UNTIL WORK ON ONE HINGE AT A TIME THE DOORS CLOSE FIRMLY.
  • Page 27 STEP 16 BARCELONA INSTALL FILLER STRIPS FOR PANEL JOINTS UNWRAP THE FILLER STRIPS (DC 2069). DC-2069 SLIDE ONE FILLER STRIP IN EACH PANEL JOINT. THE FILLER STRIPS WILL SIT LOOSE IN THE JOINTS. DC-2069 DC-2069 DC-2069 DC-2069 TOLL FREE: 1-877-795-7423...
  • Page 28 STEP 17 BARCELONA LIFT THE TRUSS FRAME ASSEMBLY AND CAREFULLY PLACE IT ON TOP OF THE STRUCTURE. THE OUTSIDE SURFACE OF THE WALLS ARE TO BE FLUSH WITH THE OUTSIDE OF THE TRUSS FRAME ASSEMBLY. SCREW DOWN THROUGH THE PLATE OF THE TRUSS FRAME ASSEMBLY IT IS RECOMMENDED TO HAVE ONE WALL SCREWED FROM THE PANEL UP INTO THE TOP OF EACH WALL AND DOOR PANEL.

  • Page 29: Section View

    STEP 18 BARCELONA PLACE THE RIDGE BEAM SUPPORT ASSEMBLY (DC 2171) ON THE GROUND WITH THE SERIAL NUMBER TAG FACING UP. ATTACH THE COMMON RAFTERS (DC 2556) TO THE RIDGE BEAM (DC 2171) BY INSERTING THE RAFTER INSIDE THE METAL BRACKET AS SHOWN. USE 2 1/2" PAN HEAD SCREWS TO FASTEN THE RAFTER TO THE PEAK SUPPORT.
  • Page 30 STEP 19 BARCELONA FLIP THE RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME AS SHOWN IN SECTION VIEW. CENTRE THE RAFTERS ON THE TRUSS FRAME. DO NOT SCREW RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 31 STEP 20 BARCELONA FASTEN HIP RAFTER EXTENSION (DC 2111) TO HIP RAFTERS (DC 2557) REPEAT THIS STEP ON ALL FOUR HIP RAFTERS. FLUSH DC-2111 DC-2557 SECTION VIEW DC-2557 DC-2111 TOP PLAN VIEW 1 1/2" ROBERTSON SCREWS 16 req TOLL FREE: 1-877-795-7423...
  • Page 32 STEP 21 BARCELONA PLACE HIP RAFTERS (DC 2557) IN PLACE AS SHOWN IN SECTION DETAIL AND TOP VIEW. PLACE RAFTER INSIDE METAL BRACKET AS SHOWN. ATTACH EACH HIP RAFTER WITH THREE 2 1/2" PAN HEAD SCREWS THROUGH THE PRE-DRILLED HOLES ON THE BRACKET INTO THE HIP RAFTER AS SHOWN.
  • Page 33 STEP 22 BARCELONA FASTEN HIP RAFTER EXTENSION (DC 2112) TO HIP RAFTER ASSEMBLY (DC 2111) REPEAT THIS STEP ON ALL FOUR HIP RAFTERS. DC-2557 DC-2111 DC-2112 TOP PLAN VIEW 2 1/2" ROBERTSON SCREWS 24 req TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 34 STEP 23 BARCELONA FASTEN LEFT RIGHT AND MIDDLE PANEL SUPPORTS (DC2177, DC2178 & DC2179) TO THE TRUSS FRAME. DC-2178 DC-2179 DC-2179 DC-2178 FLUSH DC-2177 DC-2177 FLUSH DC-2177 DC-2178 DC-2179 DC-2178 DC-2179 SECTION VIEW DC-2179 DC-2178 2 1/2" ROBERTSON SCREWS 38 req TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 35 STEP 24 BARCELONA PLACE THE ROOF STRAPPING ON TOP OF THE ROOF RAFTERS AS SHOWN. DC-2170 PLACE THE 2x8 TOP STRAP ASSEMBLY PIECE (DC 2170) AT THE PEAK OF THE ROOF. PLACE THE PIECE SO THAT IT IS CENTRED ON THE RAFTERS.
  • Page 36 STEP 25 BARCELONA PLACE THE ROOF STRAPPING ON TOP OF THE ROOF RAFTERS AS SHOWN. PLACE THE MID STRAPPING (DC 2541) AND BOTTOM STRAPPING PIECES (DC 2546). CENTRE ON THE RAFTERS AND FASTEN USING 2 1/2" SCREWS. REPEAT THIS FOR TWO 11' SIDES OF THE ROOF.
  • Page 37 STEP 26 BARCELONA DETAIL - 2 DETAIL - 1 SECURE THE RAFTERS TO THE TRUSS FRAME. SECURE THE COMMON RAFTERS AS SHOWN IN DETAIL 1. DETAIL - 1 SECURE THE HIP RAFTERS AS SHOW IN DETAIL - 2. DETAIL - 2 3"...
  • Page 38 STEP 27 BARCELONA FASTEN THE HIP COVERS (DC 2358) TO THE STRAPPING AND PANEL SUPPORTS. ALIGN THE HIP COVER SO IT IS CENTRED ON THE RAFTER AND THE BOTTOM JUST TOUCHES THE OUTSIDE OF THE PANEL SUPPORT, AS SHOWN. FASTEN THROUGH THE HIP CAP COVER INTO THE PANEL SUPPORTS AND TOP STRAPPINGS...
  • Page 39 STEP 28 BARCELONA FASTEN A COLLAR TIE (DC 2173) ACROSS TWO COMMON RAFTERS. PUSH THE COLLAR TIE TIGHT TO THE STRAPPING AND FASTEN USING 2 1/2" ROBERTSON SCREWS. THE COLLAR TIE SHOULD BE LEVEL AND SPAN EVENLY ACROSS BOTH COMMON RAFTERS REPEAT THIS STEP FOR THE SECOND COLLAR TIE.
  • Page 40 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP THREE OF THE 11' INSTRUCTIONS OR STEP FIVE OF THE 14' INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 41 STEP 29 BARCELONA ATTACH CLOSURE TABS (DC 1834) TO THE UNDERSIDE OF THE ROOFING SHEETS. CLOSURE TABS ARE TO BE IN-LINE WITH THE FIRST ROW OF PUNCHED SCREW LOCATIONS. TRIM CLOSURE TABS FOR NARROW ROOF PANELS. DC-1834 CLOSURE TAB DC-1834...
  • Page 42 STEP 30 BARCELONA PLACE FOUR ROOFING SHEETS ON THE ROOF STRAPS AS SHOWN. LAY THE PIECES OUT EVENLY. PLACE THE SHEETS SO THAT THEY EVENLY OVERHANG THE BOTTOM OF THE ROOF AND LEAVE ROUGHLY 1/2" REVEAL ON THE TOP STRAP AS SHOWN IN DETAIL 1 MAKE SURE YOU HAVE ALL FOUR PIECES IN PLACE WITH AND EQUAL OVERHANG OVER THE THE WHOLE EDGE OF THE EAVE.
  • Page 43 STEP 31 BARCELONA PLACE FIVE ROOFING SHEETS ON THE ROOF STRAPS AS SHOWN. LAY THE PIECES OUT EVENLY. PLACE THE SHEETS SO THAT THEY EVENLY OVERHANG THE BOTTOM OF THE ROOF AND LEAVE ROUGHLY 1/2" REVEAL ON THE TOP STRAP AS SHOWN IN DETAIL 1...

  • Page 44: Sealing Tape

    STEP 32 BARCELONA CAREFULLY PEEL THE BACKER AND PLACE THE SEALING TAPE (DC 2033) ON TOP OF THE ROOFING SHEET. SEALING TAPE DC-2033 TOLL FREE: 1-877-795-7423 0225_BarcelonaAC_Instructions_V4.0...
  • Page 45 STEP 33 BARCELONA CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC - 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING...
  • Page 46 STEP 34 BARCELONA PLACE THE METAL HIP CAPS (DC 1465) ON EACH CORNER OF THE ROOF AS SHOWN. PLACE EACH CAP ON TOP OF THE HIP OF THE ROOF. MAKE SURE THAT THE CAP IS SITTING CENTRED ON THE HIP, THEN ATTACH IT TO THE ROOF WITH ONE 1"...
  • Page 47 STEP 35 BARCELONA PLACE THE RIDGE CAP (DC 2172) AT THE VERY TOP OF THE ROOF OVER TOP OF THE ENDS OF THE HIP FLASHING. AS SHOWN. SECURE THE RIDGE CAP WITH SCREWS ON EACH SIDE THROUGH THE CAP AND INTO THE ROOFING.
  • Page 48 OPTIONAL BAY KIT IF YOU HAVE PURCHASED AN OPTIONAL BAY WALL KIT FOR YOUR OUTDOOR STRUCTURE, PLEASE MOVE ON TO STEP SEVEN OF THE INSTRUCTIONS PROVIDED WITH THE BAY KIT AT THIS TIME.
  • Page 49 STEP 36 BARCELONA DETERMINE WHICH SIDE OF THE WINDOW YOU WOULD LIKE THE BI-FOLD WINDOW PANELS TO COLLAPSE TO. OPEN THE WINDOW ALL THE WAY TO ONE SIDE. WHEN THE WINDOW IS COMPLETELY OPEN, SLIDE THE NYLON STOPPERS IN THE FRAME TIGHT AGAINST THE STATIONARY SIDE OF THE WINDOW AND TIGHTEN THE SET SCREW.
