OUTPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
Number of outputs
Output type / Disconnection type
Rated current per output
Maximum load per output
Different phases connection
Short-circuit protection
Overload protection
Connection method
Cable cross-section
Outputs per common
Maximum response time
Mechanical lifetime (min. cycles)

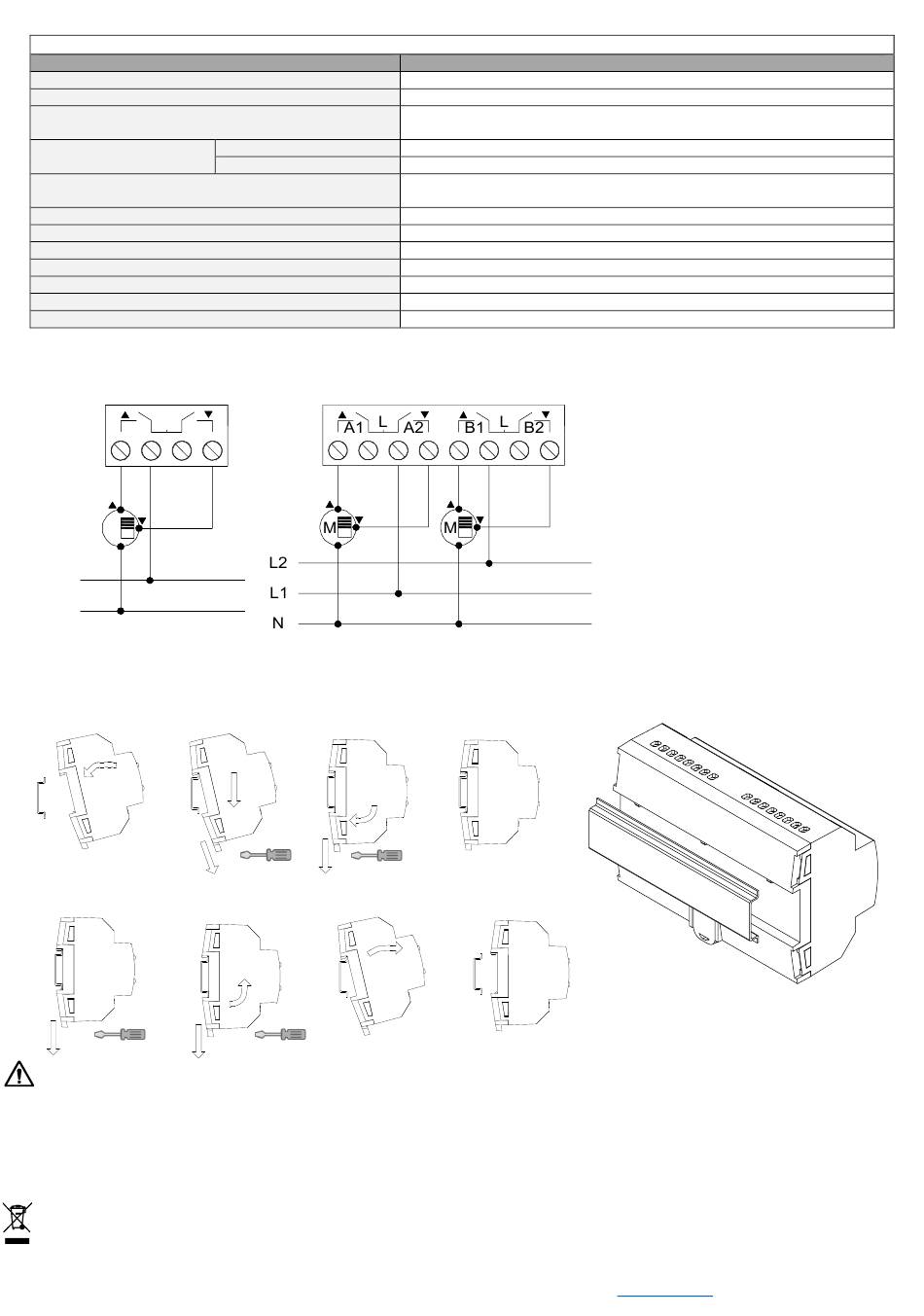

WIRING DIAGRAMS
Figure 2: Wiring example (from left to right): one shutter on channel A
and two shutters on channels A and B with different phases.
Attaching MAXinBOX SHUTTER 8CH v3 to DIN rail:
Removing MAXinBOX SHUTTER 8CH v3 from DIN rail:
SAFETY INSTRUCTIONS AND ADDITIONAL NOTES
• Installation should only be performed by qualified professionals according to the laws and regulations applicable in each country.
• Do not connect the mains voltage nor any other external voltage to any point of the KNX bus; it would represent a risk for th e entire
KNX system. The facility must have enough insulation between the mains (or auxiliary) voltage and the KNX bus or the wires of other
accessories, in case of being installed.
• Once the device is installed (in the panel or box), it must not be accessible from outside.
• Keep the device away from water (condensation over the device included) and do not cover it with clothes, paper or any other material
while in use.
• The WEEE logo means that this device contains electronic parts and it must be properly disposed of by following the instructi ons at
https://www.zennio.com/en/legal/weee-regulation.
• This device contains software subject to specific licences. For details, please refer to https://zennio.com/licenses.
© Zennio Avance y Tecnología S.L.
Resistive
Inductive
Edition 1
DESCRIPTION
8 shutter channels
Potential-free outputs through bistable relays / Micro-disconnection
AC 8(4) A @ 250 VAC (2000 VA)
DC 5 A @ 30 VDC (150 W)
2000 W
1000 VA
Possibility of connecting different phases. It is not allowed to connect power
supplies of different order, SELV with NO SELV, in the same block.
NO
NO
Screw terminal block (0.5 Nm max.)
1.5-4 mm² (IEC) / 26-10 AWG (UL)
2
15 ms
1 000 000
Further information
⚠ In order to ensure the expected status of
the relays, please check that the device is
connected to the KNX bus before energizing
the power circuit.
Figure 3: Mounting MAXinBOX SHUTTER
8CH v3 on DIN rail
