Summary of Contents for Blaze B600

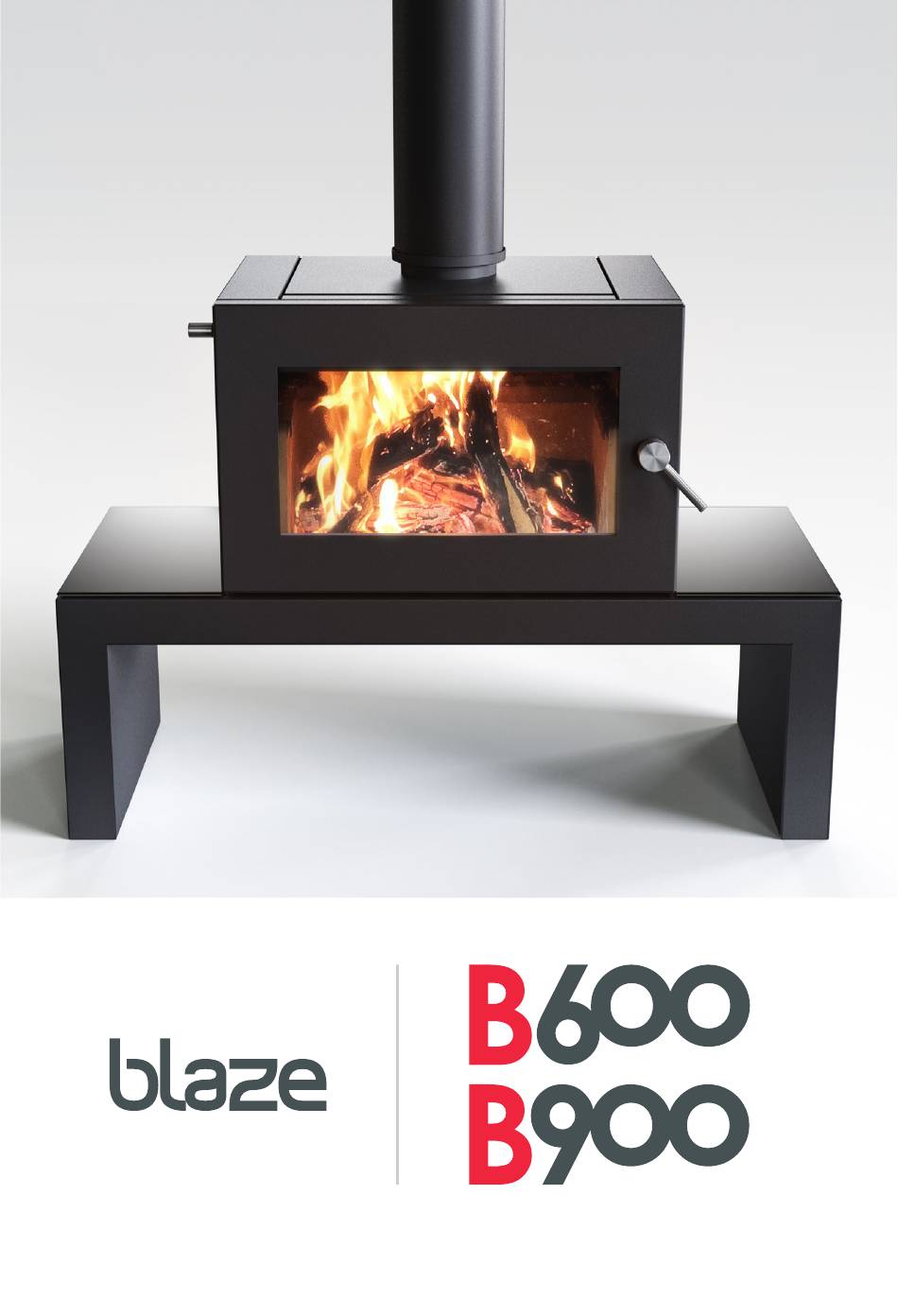

- Page 1 INSTALLATION INSTRUCTIONS Contemporary Styled Wood Heaters...
- Page 2 BLAZE B600/B900 Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA. BLAZE B605/B905 VERSION 1.0...
-
Page 3: Table Of Contents
12. Technical Drawings ....14 12.1. B600 ......14 12.2. -
Page 4: Important Information
Do not use if the compartment is not secure. WE RECOMMEND THAT THE INSTALLATION OF Dispose of used button batteries immediately and YOUR BLAZE WOOD HEATER BE CARRIED OUT BY A safely. Flat batteries can still be dangerous. QUALIFIED INSTALLER. -
Page 5: Assembling The Heater
ASSEMBLING THE HEATER “10. Relocating the Blanking Plates” for details. To fit the glass panels on top of the base, refer to This Blaze heater will arrive in two parts, the firebox body and the base unit representing the B600/ section “11. Installing the Glass Panels” for details. B900 or the B605/B905. INSTALLING THE HEATER 2.1. B600/B900 3.1. POSITIONING THE HEATER... - Page 6 3.1.1. B600/B900 STANDARD INSTALLATION 3.1.2. B600/B900 CORNER INSTALLATION COMBUSTIBLE WALL B600 B600 STANDARD INSTALLATION CORNER INSTALLATION SINGLE REAR SOLID CASING/ SINGLE REAR FLUE SHIELD/ FLUE SHIELD DECROMESH SOLID CASING/DECROMESH Side - S1 425mm 425mm Corner - C1 150mm Side – S2 756mm 756mm Corner – C2 511mm Rear –...
- Page 7 3.1.3. B605/B905 (MIDDLE) STANDARD INSTALLATION 3.1.4. B600/B905 (MIDDLE) CORNER INSTALLATION COMBUSTIBLE WALL B605 (MIDDLE) B605 (MIDDLE) STANDARD INSTALLATION CORNER INSTALLATION SINGLE REAR SOLID CASING/ SINGLE REAR FLUE SHIELD/ FLUE SHIELD DECROMESH SOLID CASING/DECROMESH Side - S1 171mm 171mm Corner - C 150mm Side – S2...
- Page 8 3.1.5. B605/B905 (LEFT) STANDARD INSTALLATION 3.1.6. B605/B905 (RIGHT) STANDARD INSTALLATION COMBUSTIBLE WALL COMBUSTIBLE WALL B605 (LEFT) B605 (RIGHT) STANDARD INSTALLATION STANDARD INSTALLATION SINGLE REAR SOLID CASING/ SINGLE REAR SOLID CASING/ FLUE SHIELD DECROMESH FLUE SHIELD DECROMESH Side - S1 425mm 425mm Side - S1 Side –...
-
Page 9: Floor Protector (Hearth)
3.2. FLOOR PROTECTOR (HEARTH) 3.1.8. B600/B905 (L/R) CORNER INSTALLATION Unless the heater will be standing on a heat resistant floor such as concrete slab with slate or tiles, it will be necessary to provide a floor protector (hearth). The dimensions given on the previous pages (“3.1. Positioning the Heater”) are the minimum required for the floor protector to extend beyond the firebox door opening. It must extend no less than 300mm in front of the door opening, no less than 200mm either side of the door opening, and extend under the heater. -
Page 10: Reducing Clearances To Combustibles
The 490 mm half round stainless steel For example: inner reflector supplied with heater must be fitted inside the decro-mesh Side wall clearance for the B600 is 425 mm. or solid outer flue shield. A 12mm gapped shield on the wall with a factor The manufacturer’s decro-mesh of 0.40. ‘locating ring’ must be used to Calculate: - 425 mm x 0.40 = 170 mm. This is the... -
Page 11: Fitting Flue Seal
Place the locating ring above the flue OUTER CASING NO spigot (resting on the top plate) and LESS THAN 25MM CLEARANCE TO then place the first length of 150mm COMBUSTIBLES STAINLESS active flue into the spigot. With the STEEL COWL 490mm inner shield fitted inside the decro-mesh or solid outer shield, slide FLASHING the shielding over the active flue. Locate the bottom of the decromesh or solid outer shield and inner shield SECURING ANGLES inside the locating ring. -
Page 12: Installing The Baffle Plate
INSTALLING THE BAFFLE PLATE INSTALLING THE FIRE BRICKS The baffle plate should be installed before Place the bricks into the firebox as shown in the installing the fire bricks. diagrams below for the B600/B605 and B900/B905. Once bricks are in, fit the retainer over the top to Place the baffle inside the firebox with the hold them in place. slotted fold directed downwards and at B600/B605: the rear of the firebox (refer to following diagram for correct orientation). ● Two full size (220 x 175 x 25) and one (220 x 140 x 25) along the back. -
Page 13: Relocating The Fan Assembly
RELOCATING THE FAN ASSEMBLY 10. RELOCATING THE BLANKING PLATES In the B605 & B905 models, the fan assembly is The B605 & B905 has two blanking plates which located in the centre of the base unit by default. block out a sliver of light that can be seen If choosing to install the body on either side of the between the firebox body and the glass panel. -
Page 14: Installing The Glass Panels
11. INSTALLING THE GLASS PANELS B600 & B900 – Glass Location Place glass inset 3mm from each side of the base. Slide glass back until it butts with the base rear face. REAR FACE GLASS B605 & B905 – Glass Location... -
Page 16: Technical Drawings
12. TECHNICAL DRAWINGS 12.1. B600 556.9 751.4 LEFT FRONT... -
Page 17: B605
12.2. B605 556.9 1170 LEFT FRONT 1170 LEFT CONFIGURATION 1170 RIGHT CONFIGURATION... -
Page 18: B900
12.3. B900 596.9 851.4 LEFT FRONT... -
Page 19: B905
12.4. B905 596.9 1320 LEFT FRONT 1320 LEFT CONFIGURATION 1320 RIGHT CONFIGURATION... - Page 20 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 554 155 General & Sales Enquiries: flame.care@glendimplex.com.au Technical Service: flame.support@glendimplex.com.au www.glendimplex.com.au...
