Blaze B520 Operating Instructions Manual

Contemporary and stylish
Hide thumbs Also See for B520:
Table of Contents

Advertisement

Quick Links

Operating Instructions
Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA
Contemporary and Stylish
Keep instructions in a safe place for future reference
Do not throw away
B520
B820
Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B520 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blaze B520

Summary of Contents for Blaze B520

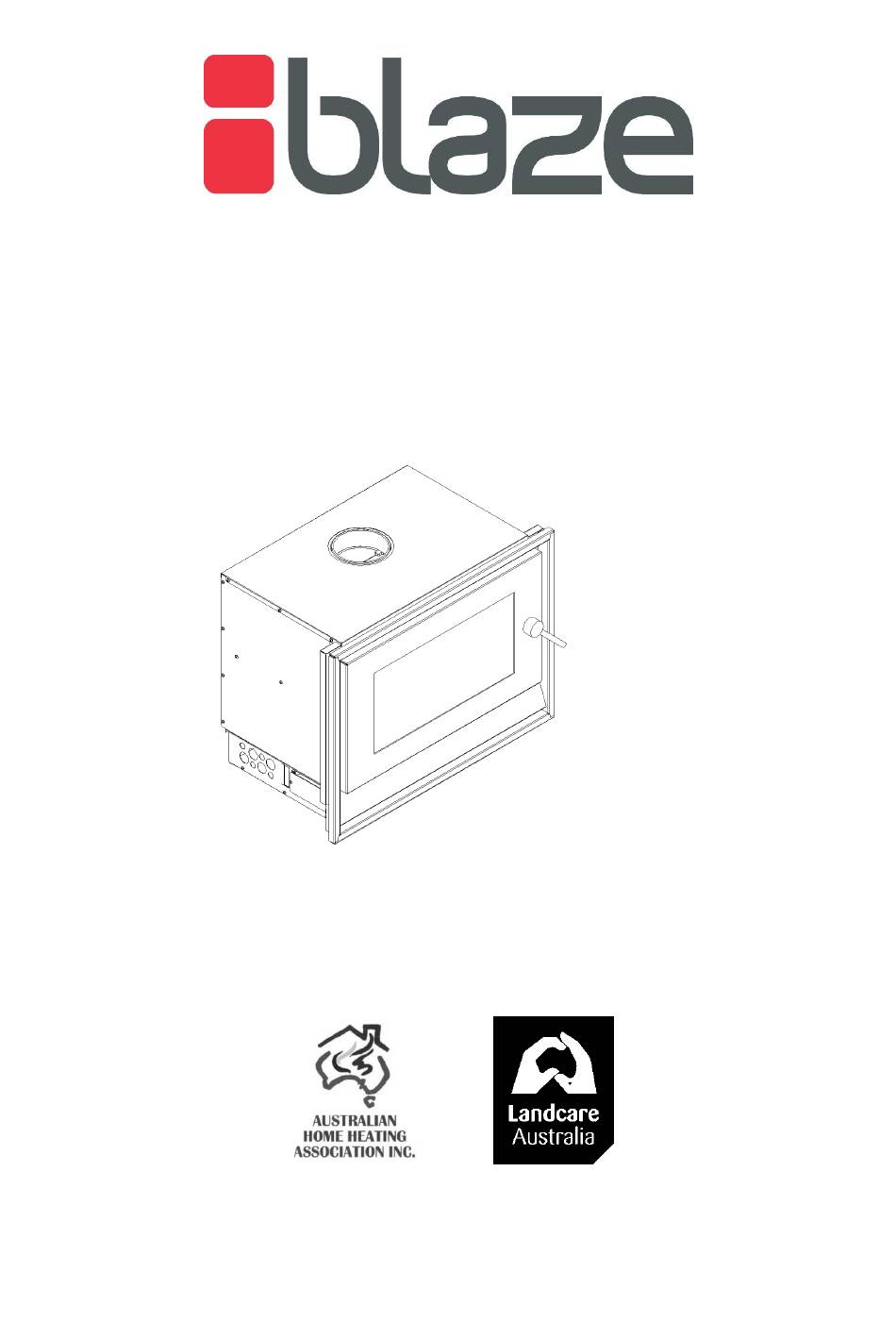

  • Page 1 Operating Instructions Contemporary and Stylish B520 B820 Keep instructions in a safe place for future reference Do not throw away Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA Revision A...

  • Page 2: Table Of Contents

    OPERATING ............... 1 THE OPERATING INSTRUCTIONS IN THIS MANUAL APPLY 1.1. INTRODUCTION ............1 TO THE BLAZE B520 AND B820 INSERT WOOD HEATER MODELS. 1.2. USING THE APPLIANCE FOR THE FIRST TIME ... 2 THEY HAVE BEEN TESTED FOR EMISSIONS AND 1.3.

  • Page 3: Using The Appliance For The First Time

    1.3. RECOMMENDED FUELS  The B520 and B820 models feature a single air control system Burn only seasoned hardwood timber with a moisture designed to introduce oxygen to the base of the fire. The air content of less than 20%.

  • Page 4: Burning Tips

     1.6. BURNING TIPS Running the appliance with the door open will not produce maximum heating in the room as it will draw a lot of already warmed air out of the room.  Fuel Quality Do not overload firebox with fuel. ...

  • Page 5: Flue/Chimney Fire

    1.8. FLUE/CHIMNEY FIRE 1.11. TROUBLESHOOTING TIPS If a flue/chimney fire occurs: Glass in door blackening  Shut air slide control fully to smother the fire.  Do not use the appliance after a flue fire until an This can have several possible causes: accredited installer has assessed the cause and any ...

  • Page 6: Replacing The Baffle Plate

    The frequency used by the fan remote control can be changed if interferences are experienced in the home. Unplug the power lead before proceeding. B820 Baffle Plate (B520 has no front fold) Remote Receiver Frequency The remote control receiver has four tiny switches on the side, as seen in the photo below.

  • Page 7: Replacing The Fan Assembly

    Remote Receiver Location To access the remote control receiver, remove the steel box from underneath the unit: 1) Remove the fan cover with an M5 hex key. 2) Remove the steel box screw with an M4 hex key, allowing you to pull the steel box out. 3) Remove the steel box lid screws with a Philips head screwdriver.

  • Page 8: Replacing Door Glass

    2.10. REPLACING THE DOOR SEAL Hinge plate This task may be easier with the door removed from the appliance and laid horizontally on a work-bench. 1) Remove any remains of the old seal from the door. 2) Clean out the groove in the door that the seal was bedded in, using a flat-end screw driver or equivalent.

  • Page 9: Replacement Spare Parts List

    2.12. REPLACEMENT SPARE PARTS LIST Firebricks B520 6 @ 220mm x 175mm x 25mm 1 @ 220mm x 140mm x 25mm 3 @ 220mm x 85mm x 25mm B820 10 @ 270mm x 175mm x 25mm Baffle Plate B520 480mm x 6mm...
  • Page 12 Glen Dimplex Australia Pty Ltd 1340 Ferntree Gully Road, Scoresby Victoria 3179 Australia T: 1300 556 816 | F: 1800 058 900 Email: sales@glendimplex.com.au...
