Installation Instructions
Contemporary and Stylish
B100
Pecan Engineering Pty Limited proudly supports the activities of Landcare Australia through its membership of the AHHA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blaze B100

Summary of Contents for Blaze B100

  • Page 1: Installation Instructions

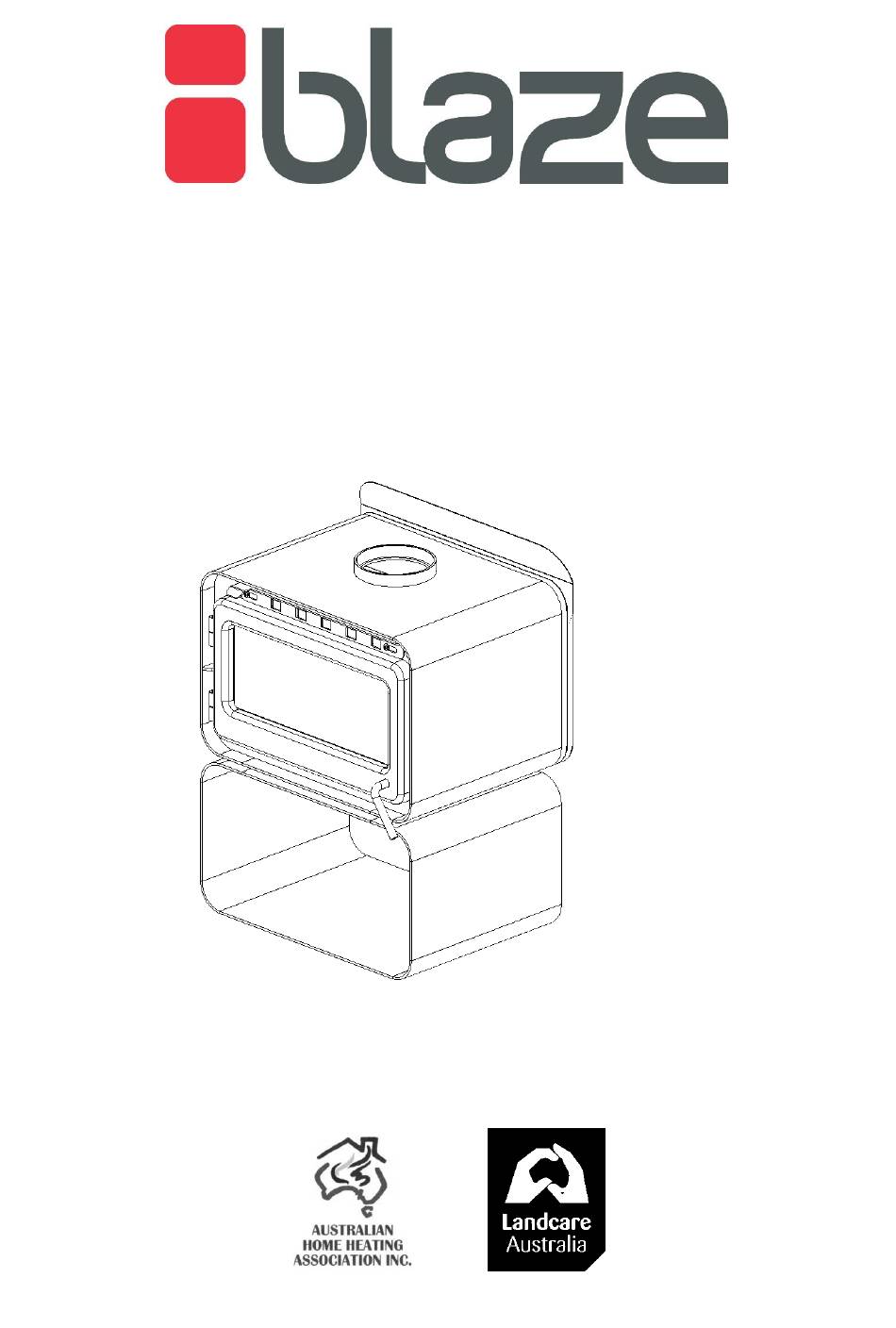

    Installation Instructions Contemporary and Stylish B100 Pecan Engineering Pty Limited proudly supports the activities of Landcare Australia through its membership of the AHHA...

  • Page 2: Table Of Contents

    Check local building regulations before installing the appliance. TECHNICAL DRAWINGS ……………………………….. 7 All Blaze wood heaters have been tested to ensure that they will meet the appropriate safety Standard requirements if the instructions in this manual are followed. As the safety and...

  • Page 3: Assembling The Heater

    2. ASSEMBLING THE HEATER 3. INSTALLING THE HEATER This Blaze B100 heater will arrive with the firebox body Positioning the Heater secured to the wood box. First review the necessary minimum clearances specified below before considering where to position the heater. These clearances can be greater if desired.

  • Page 4: Reducing Clearances To Combustibles

    For example: required for the floor protector to extend beyond the firebox Side wall clearance for the B100 is 700mm. door opening. It must extend no less than 300 mm in front of the door opening, no less than 200mm either side of the door A 12mm gapped shield on the wall with a factor of 0.40.

  • Page 5: Installing The Flue

     Depending on the supplier, decro-mesh can be one of 5. INSTALLING THE FLUE three sizes – 200 mm, 7 ¾ inch, or 8 inch diameter. The decro-mesh ring will fit the two smaller diameters but The flue system used when installing the heater MUST comply not the 8 inch.

  • Page 6: Installing The Baffle Plate

    6. INSTALLING THE BAFFLE PLATE 8. INSTALLING THE FIRE BRICKS The baffle plate should be installed before installing the fire 1) Place lower brick retainers in base of firebox, bricks. centralised and against rear of the firebox. 2) Place three bricks along the back. 1) Place the baffle inside the firebox with the trapezium 3) Place two medium size bricks along each side.

  • Page 7: Technical Drawings

    12. TECHNICAL DRAWINGS Pecan Engineering Pty Limited 13 Acorn Road, Dry Creek South Australia 5094 T: (08) 8349 8332 | F: (08) 8260 6643 Email info@pecan-eng.com.au...
