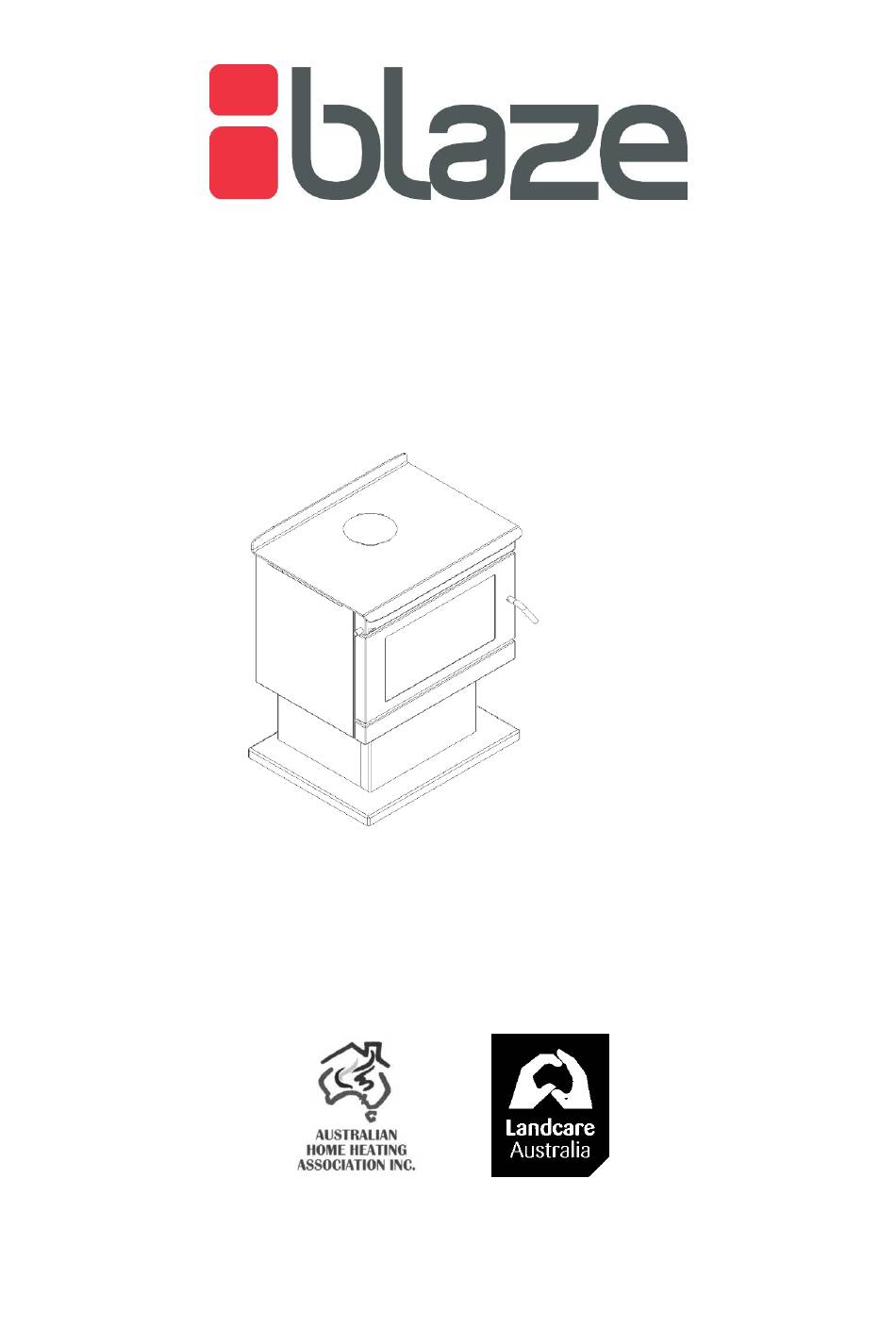

- Page 1 Operating Instructions Contemporary and Stylish B500 B800 Keep instructions for future reference Glen Dimplex Australia proudly supports the activities of Landcare Australia through its membership of the AHHA Revision B...
-
Page 2: Table Of Contents
1. OPERATING OPERATING ............... 1 THE OPERATING INSTRUCTIONS IN THIS MANUAL APPLY 1.1. INTRODUCTION ............1 TO THE BLAZE B500 AND B800 FREE STANDING WOOD HEATER MODELS. 1.2. GENERAL OPERATION ..........2 THEY HAVE BEEN TESTED FOR EMISSIONS AND 1.2.1. -
Page 3: General Operation
20%. Newly cut wood should be allowed to dry/season for 12 The B500 and B800 models feature a single air control system to 18 months before use. designed to introduce oxygen to the base of the fire. The air... -
Page 4: Burning Tips
1.7. BURNING TIPS Running the appliance with the door open will not produce maximum heating in the room as it will draw a lot of already warmed air out of the room. Fuel Quality Do not overload firebox with fuel. ... -
Page 5: Flue/Chimney Fire
1.9. FLUE/CHIMNEY FIRE 1.12. TROUBLESHOOTING TIPS If a flue/chimney fire occurs: Glass in door blackening Shut air slide control fully to smother the fire. Do not use the appliance after a flue fire until an This can have several possible causes: accredited installer has assessed the cause and any ... -
Page 6: Maintenance And Servicing
1) Remove brick retainer, bricks and ash from the fire box. 2) Replace with new bricks 3) Refit the brick retainer. B500 Two full size (220 x 175 x 25) and one (220 x 140 x 25) along the back. -
Page 7: Replacing The Baffle Plate
Installed the B800 baffle in the same method as described for 5) Once the baffle has cleared the front support pins, it can the B500. Refer to image below for orientation of baffle plate be removed from the firebox. within the firebox). -
Page 8: Replacing The Ash Plate
2.4. REPLACING THE ASH PLATE 2.6. ADJUSTING THE DOOR The ash plate protects the front of the firebox below the door Over time the screws securing the door hinge plate to the opening from the hot coal bed and fire. heater may loosen resulting in the door dropping, i.e. -
Page 9: Replacing The Door Seal
2.9. DOOR HANDLE ADJUSTMENT Adhesive glass seal Glass retainer Over time, the door seal can become compressed resulting in a less than adequate seal between the door and the front edge of the firebox. If wood burns unusually fast even with the air slide shut, it may mean that there is an air leak around the door. -
Page 10: Replacement Spare Parts List
2.10. REPLACEMENT SPARE PARTS LIST Firebricks B500 6 @ 220mm x 175mm x 25mm 1 @ 220mm x 140mm x 25mm 3 @ 220mm x 85mm x 25mm B800 10 @ 270mm x 175mm x 25mm Baffle Plate B500 490mm x 230mm x 8mm... - Page 12 Glen Dimplex Australia Pty Ltd 8 Lakeview Drive, Scoresby Victoria 3179 Australia T: 1300 556 816 | F: 1800 058 900 Email: sales@glendimplex.com.au...
