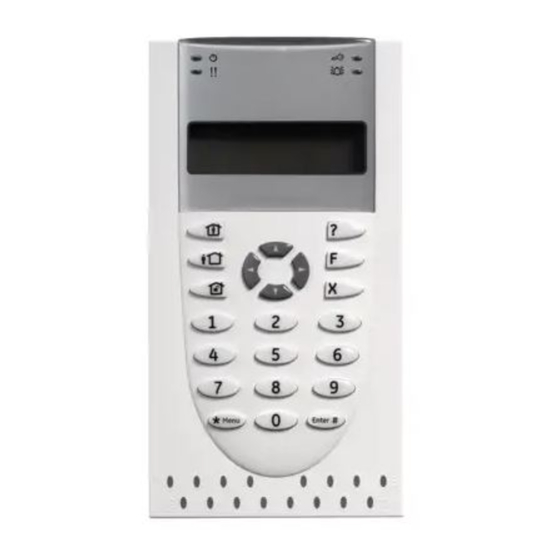

Axon x700 Control Panel
User Manual
P/N R466-5644-EN • REV B • ISS 29NOV23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axon x700 and is the answer not in the manual?

Questions and answers

Related Manuals for Aritech Axon x700

Summary of Contents for Aritech Axon x700

  • Page 1 Axon x700 Control Panel User Manual P/N R466-5644-EN • REV B • ISS 29NOV23...
  • Page 2 WARNING! Fire alarm and smoke detection products used with Axon x700 systems are intended solely for convenience and should not be used as life safety products. The combination does not meet requirements set by law for life safety products or for use as fire detection systems.
  • Page 3 This link will guide you to the EMEA regional contact page. On this page you can request your login to the secured web portal where all manuals are stored. https://firesecurityproducts.com/en/contact Contact information firesecurityproducts.com or www.aritech.com.

  • Page 5: Table Of Contents

    Performing a walk test 16 Problems that can occur 17 Mobile Application 18 The Axon x700 menu 19 How the menu option sections are organised in this manual 19 Option availability 19 Accessing menu 20 Axon x700 Control Panel User Manual...
  • Page 6 Shunting zones 22 Panel status 23 Settings 24 Door control 27 Service 28 Common key sequences 32 Common key sequences for LCD keypad 32 Common key sequences for keypad without LCD 33 Function keys 34 Axon x700 Control Panel User Manual...

  • Page 7: Important Information

    Important note This manual provides information for all Axon x700 control panels in all variations. “Axon x700 control panel” refers to any variant of the Axon x700 control panels, unless specifically stated otherwise. List of panel variants •...
  • Page 8 Axon x700 Control Panel User Manual...

  • Page 9: Keypads And Readers

    Yellow flashing: general alert (EN 50131) Alarm LED Red on: alarm condition active LCD display Displays messages  / Up Scroll up in the menus Change value Delete Show help ? / Help Scroll text (ATS113x only) Axon x700 Control Panel User Manual...
  • Page 10 Green On: System is ready to set Green flashing: Entry / exit time active Blue flash: Valid card presented / Access granted Off: Not ready to set / Armed display active (27) Action key For future use Axon x700 Control Panel User Manual...
  • Page 11 Figure 4: ATS118x readers Figure 5: ATS1190/ATS1192 readers Figure 6: ATS1197 reader with keypad Figure 7: ATS1151/ATS1156 readers Axon x700 Control Panel User Manual...
  • Page 12 • Dual LED is lit red when any associated area is set. • Area 1 LED is on when any associated area is set. Area LEDs 2 to 16 are not used. Axon x700 Control Panel User Manual...

  • Page 13: Using Your Pin And/Or Card To Access The System

    Using your PIN and/or card to access the system You need a PIN and/or a card to use the Axon x700 system. A PIN is a unique number having between 4 and 10 digits. The manager of the security system has set up your user account with a PIN and/or card details.

  • Page 14: Duress

    (for example, forced to unset the system), this function lets you do so while at the same time activating the system duress facility. However, your Axon x700 system must be programmed to use this function.

  • Page 15: Door Access

    If programmed, it is possible to get access through a particular door using the keypad or the reader assigned to the door. Provide an allowed key sequence indicated in “Common key sequences” on page 32. Axon x700 Control Panel User Manual...

  • Page 16: Set And Unset The System

    Normally, you will hear a beeper during the time allowed to leave the building. Make sure you know which route to take when leaving the premises. Axon x700 Control Panel User Manual...

  • Page 17: The Time Limit When Unset

    So, before setting, make sure that all doors and windows are properly closed. If a zone is open when you try to set, you get the message: CHECK SYSTEM Devices open All the active zones are listed: 1 Zone active Zone 1 Axon x700 Control Panel User Manual...
  • Page 18 Inhibited zones and faults If there are inhibited faults or zones, it is necessary to confirm information about it. WARNING Inhibited All the inhibited zones and faults are listed: Inhibited Zone 1 Battery fault Inhibited Axon x700 Control Panel User Manual...

  • Page 19: Set Areas Via Lcd Keypad

    3. If prompted, choose areas. See “Areas displayed during set and unset” on page 13 for more information. If there are inhibited or isolated zones in selected areas, they are listed on the display. Axon x700 Control Panel User Manual...

  • Page 20: Unset Areas Via Lcd Keypad

    2. Exit the premises using the designated entry/exit route. The exit tone switches off. When an area is set, its LED lights up red. If programmed, after a delay the armed display is engaged, and LEDs are extinguished. Axon x700 Control Panel User Manual...

  • Page 21: Unset Areas Via Keypad Without Lcd

    If the areas assigned to your PIN are displayed, any of those areas that are set (or unset) will be listed. Depending on the keypad model and its settings, areas are shown as a list or a symbolic line. For example: 0> 1 * Office — or — Axon x700 Control Panel User Manual...
  • Page 22 Area group list If you are authorized to set or unset area groups, these will be displayed instead of single areas. Set or unset area groups the same way as described for areas above. Axon x700 Control Panel User Manual...

  • Page 23: What To Do When There Is An Alarm

    When programmed, the central station is contacted automatically by the system. Who to contact when an alarm occurs Contact the manager of your security system when an alarm occurs. Axon x700 Control Panel User Manual...

  • Page 24: Viewing An Alarm

    The system lists all zones still to be tested. The manager of the alarm system must inform users which zones must be tested to pass the walk test. Axon x700 Control Panel User Manual...

  • Page 25: Problems That Can Occur

    The keypad is locked after a wrong PIN is entered three or more times. When you press a key on a locked keypad, it beeps seven times. After 2 minutes the keypad becomes available again. Axon x700 Control Panel User Manual...

  • Page 26: Mobile Application

    Mobile Application Advisor Advanced Pro mobile application allows users to monitor and control your Axon x700 security system via TCP/IP using a smartphone running Android or iOS operating system. Note: Your control panel must be connected to the Ethernet or to the Internet (for example, via GPRS connection).

  • Page 27: The Axon X700 Menu

    The Axon x700 menu The Axon x700 system uses a menu structure to present the various options and commands available. The availability of these depends on system configuration and on the permissions in your user group. You may not always see all the items described in this manual.

  • Page 28: Accessing Menu

    Press Enter or Right to enter the selected one Show help Press Help Display a description of the selected menu entry (if available) Exit a menu option Press Left or Clear Exit the menu option Axon x700 Control Panel User Manual...

  • Page 29: Zone Options

    The active zones are listed one by one. 1. Press the Up and Down buttons to scroll through the zones. 2. To inhibit the selected zone, press Enter. The confirmation is displayed: 1>Zone 1 Inhibited Axon x700 Control Panel User Manual...

  • Page 30: Shunting Zones

    2. Press the zone number, or use Enter to select a zone. 3. Change the zone state using Up and Down. 4. Confirm the changes by pressing Enter. 5. Press Clear twice to exit programming. Axon x700 Control Panel User Manual...

  • Page 31: Panel Status

    1 View open zones: Displays zones that are not in normal state. The top line shows the zone that is not in normal state. The bottom line shows the zone status. • 2 Alarms: Displays and lets you to acknowledge pending alarms. • 3 Faults: Displays active faults. Axon x700 Control Panel User Manual...

  • Page 32: Settings

    < If you are allowed, you can change your PIN using Change PIN menu. The PIN policy in the Axon x700 system can be configured in one of the following ways: ❑ PINs are generated by the system. The user can request a new PIN generation, but PINs cannot be entered manually or edited.
  • Page 33 The SMS reporting menu lets you enable or disable SMS reporting to you. This option is editable only if you belong to a user group that has SMS reporting privilege enabled. 5.2.5 SMS control Axon x700 Control Panel User Manual...
  • Page 34 System manager will provide you with the list of SMS commands you can use. Note: SMS control for a user is disabled after 10 attempts to perform an unauthorized SMS command. See SMS Control Reference Manual for more information. Axon x700 Control Panel User Manual...

  • Page 35: Door Control

    4 Door disable: Disable a specific door. This makes access for all users denied. • 5 Door enable: Enable a disabled door. Select a command, then select a door from the door list, and press Enter. Axon x700 Control Panel User Manual...

  • Page 36: Service

    Press Enter Otherwise, there still is a list of untested zones. Contact the installer if you are unable to pass the walk test. See also “Performing a walk test” on page 16 for more information. Axon x700 Control Panel User Manual...
  • Page 37 The menu allows you to configure and remove push notifications for your smartphone. Note: The panel menu does not allow you to add notifications. You can add notifications only using a smartphone application. 8.5.4.1.n Select notification 1>Name Notification 1 Axon x700 Control Panel User Manual...
  • Page 38 4 System: Engineer reset, Service, Local programming, RFU events, Auto CS test, Isolation • 5 Video: Picture memory full, Picture deleted, Picture taken • 6 Fault: Ethernet link, Communication, Fuse, Power and internal faults and restores • 7 Access: Access denied, access granted Axon x700 Control Panel User Manual...
  • Page 39 8.5.4.1.n.6 Delete notification 6 Delete notif. >Cancel< Use the menu to remove the selected push notification from the system. To remove the notification, select OK and press Enter again. The notification is deleted. Axon x700 Control Panel User Manual...

  • Page 40: Common Key Sequences

    Part set with card and PIN Partset, card, PIN, Enter ❑ Card, PIN, Partset ❑ Door access Door access with PIN PIN, Enter ❑ Door access with card Card ❑ Door access with card and PIN Card, PIN, Enter Axon x700 Control Panel User Manual...

  • Page 41: Common Key Sequences For Keypad Without Lcd

    ❑ Unset Unset with PIN Off, PIN, On ❑ ❑ PIN, Off ❑ Unset with card Card ❑ Off, card ❑ Unset with card and PIN Off, card, PIN, On ❑ Card, PIN, Off Axon x700 Control Panel User Manual...

  • Page 42: Function Keys

    Action [1] ❑ ❑ ❑ ❑ F1 (F + 1) ❑ F2 (F + 2) ❑ F3 (F + 3) ❑ F4 (F + 4) [1] Functionality and availability must be defined by the manager. Axon x700 Control Panel User Manual...
