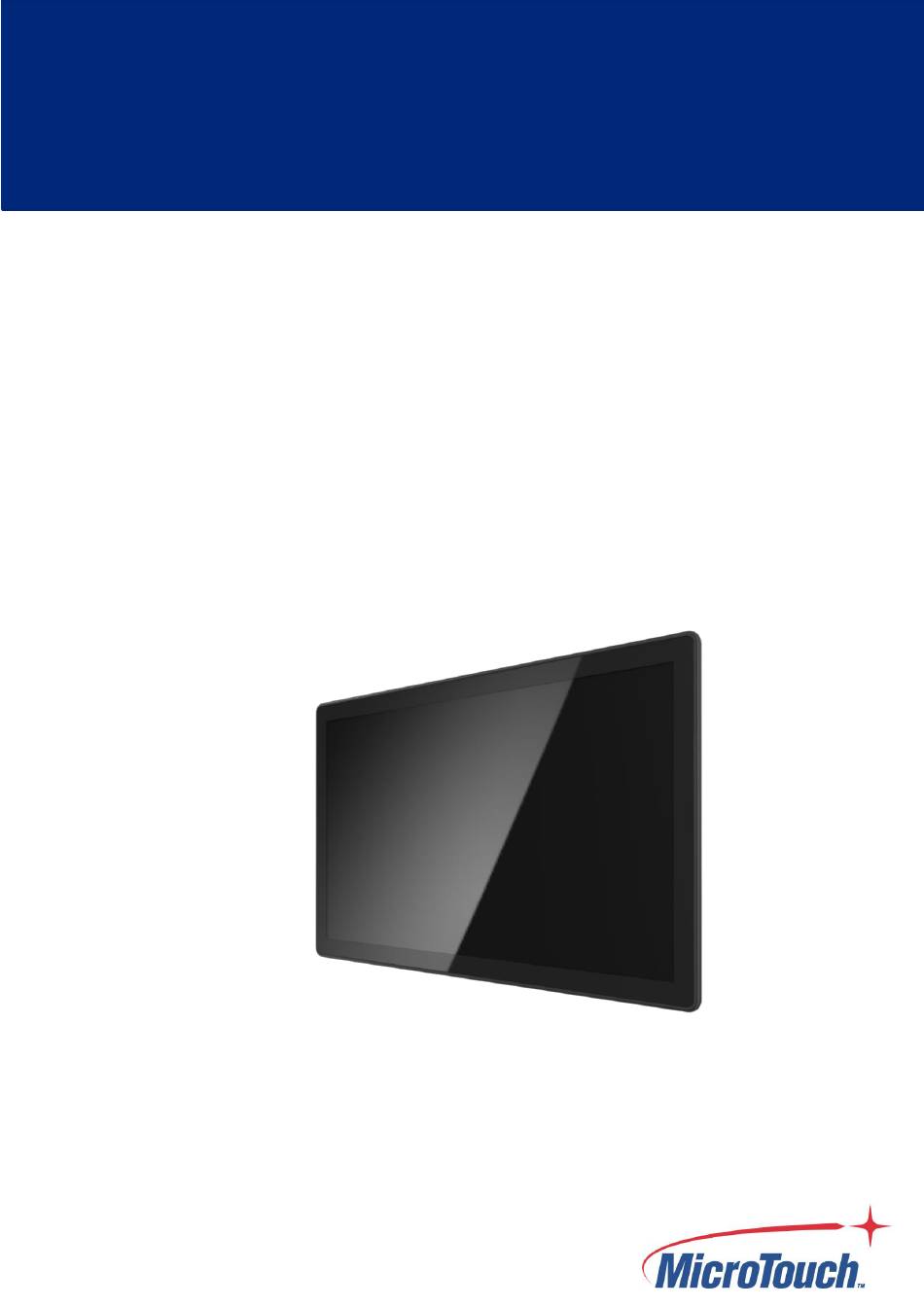

- Page 1 User Manual OF-240P-A1 Open Frame Touch Monitor...
- Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
- Page 3 Compliance Information For FCC (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe B selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
- Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
- Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
-
Page 7: Table Of Contents
Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ..................... 10 1.5.2 Video Signal Connector ................... 10 1.6 Package Overview ....................12 Chapter 2 ........................ -
Page 8: Chapter 1
Chapter 1 Product Introduction... -
Page 9: Overview
1.1 Overview The OF-240P-A1 series is a 24” touchscreen monitor that builds to withstand commercial grade open frame monitor, with stylish thin cable management bracket and versatile design OF-240P-A1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage. -
Page 10: Block Diagram
1.4 Block Diagram... -
Page 11: Interface Connectors
1.5 Interface Connectors 1.5.1 Power Connector The AC/DC converter shall have an IEC320 type male power receptacle for connection to AC mains power. The power cord, exact type to be supplied in the appropriate Option Kit, shall be length of 1.8 0.05 meters, and PC99 compliant. 1.5.2 Video Signal Connector The video signal input via D-type 15-pin female connector. - Page 12 Signal Signal ML_Lane 0(p) Data0 + Signal ground Signal ground ML_Lane 3(n) Data3 - ML_Lane 0(n) Data0 - Signal ground ML_Lane 1(p) Data1 + Signal ground AUX_CH(p) AUX + Signal for Signal ground Auxiliary Channel ML_Lane 1(n) Data1 - Signal ground AUX_CH(n) AUX - Signal for ML_Lane 2(p) Data2 + Auxiliary Channel...
-
Page 13: Package Overview
This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12Vdc, 2.5A minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension nominale de... -
Page 14: Chapter 2
Chapter 2 Product Installation... -
Page 15: About Vesa Mount
2.1 About VESA Mount “VESA Flat Display Mounting Interface The OF-240P-A1 series conform to the Standard” which defines a physical mounting interface for touch monitor, and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit. -
Page 16: About Wall Mount
2.2 About Wall Mount The OF-240P-A1 series support wall mount, and this monitor can be mounted to the wooden or concrete wall with 24xM4 screws diameter with 6mm length and two bracket set on the opposites. 2.2.1 Landscape Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device. - Page 17 Warming! This apparatus is intended to be supported by a Listed Wall Mount Bracket” or the equivalent. Mise en garde! Cet appareil est conçu pour être supporté par un support de fixation mural répertorié ”ou l’équivalent.
-
Page 18: Portrait
2.2.2 Portrait A. The left and right sides B. The Top and bottom sides... -
Page 19: Face Up
2.2.3 Face up Step1: To install bracket on customer’s cabinet. Back side Step2: Assembly OF-240P-A1 into the cabinet and insert screws. Back side Front side... -
Page 20: On-Screen Display
2.3 On-Screen Display Menu off status Menu on status Menu appear Menu disappear/ return to main item ▲ Brightness Main item select up/ Adjust up ▼ Contrast Main item select down/ Adjust down Enter/Select sub-item function Power On/Off Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the five functions in the main menu. - Page 21 Use the "Enter" key to select OSD or Power setting then set at “Lock” by pushing the "UP" or "Down" button. When the "UP" or "Down" button is released, the previous setting will be saved and exit the “Lock/Unlock” menu automatically. To Unlock the OSD / Power menu buttons, please follow the instructions below.(Please note: the monitor has to be turned ON with a valid signal pre-set)Press and hold the “Menu”...
-
Page 22: Osd Function Description
2.3.1 OSD Function Description Item Content Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. NA Up/Down Moving screen image vertical position to up or down. -
Page 23: Timing Table Chart
2.3.2 Timing Table Chart Polarity H-Freq. Bandwidth Mode Resolution (KHz) (MHz) VGA 720x400 70Hz 31.47 28.322 VGA 640x480 60Hz 31.47 25.175 MAC 640x480 66Hz 32.24 VESA 640x480 72Hz 37.86 31.5 VESA 640X480 75Hz 37.5 31.5 VESA 800x600 56Hz 35.16 VESA 800x600 60Hz 37.88 VESA 800x600 75Hz 46.88... -
Page 24: Edid Data
2.3.3 EDID Data DP/HDMI The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. This configuration shall contain the 256-byte EDID file as specified by VESA EDID Standard. The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. -
Page 25: Dimension
2.4 Dimension 2.4.1 Front View 2.4.2 Side View... -
Page 26: Rear View
2.4.3 Rear View... -
Page 27: Appendix
Appendix... - Page 28 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：OF-240P-A1 Type designation (Type) ：OF-240P-A1 Equipment name：Touch LCD Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead...
