  • Page 1 User Manual OF-100P-A1 Open Frame Touch Monitor...
  • Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 FCC/ IC Statement This device complies with Part 15 of the FCC Rules and Canadian ICES-003/NMB-003 regulation. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 5 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...

  • Page 6: Table Of Contents

    Table of Contents Chapter 1 ........................6 1.1 Overview ........................7 1.2 Feature ........................7 1.3 Specifications ......................7 1.4 Block Diagram......................8 1.5 Interface Connectors ....................9 1.5.1 Power Connector ....................9 1.5.2 Video Signal Connector ..................9 1.6 Package Overview ....................11 Chapter 2 ........................

  • Page 7: Chapter 1

    Chapter 1 Product Introduction...

  • Page 8: Overview

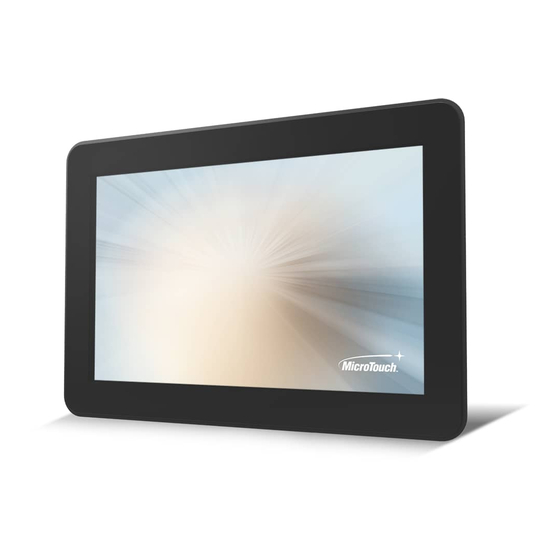

    1.1 Overview The OF-100P-A1 series is a 10” touchscreen monitor that builds to withstand commercial grade open frame monitor, with stylish thin cable management bracket and versatile design OF-100P-A1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage.

  • Page 9: Block Diagram

    1.4 Block Diagram Standard 1.1 Refer to 1.5.2...

  • Page 10: Interface Connectors

    1.5 Interface Connectors 1.5.1 Power Connector The AC/DC converter shall have an IEC320 type male power receptacle for connection to AC mains power. The power cord, exact type to be supplied in the appropriate Option Kit, shall be length of 1.8  0.05 meters, and PC99 compliant. 1.5.2 Video Signal Connector The video signal input via D-type 15-pin female connector.
  • Page 11 Signal Signal ML_Lane 0(p) Data0 + Signal ground Signal ground ML_Lane 3(n) Data3 - ML_Lane 0(n) Data0 - Signal ground ML_Lane 1(p) Data1 + Signal ground AUX_CH(p) AUX + Signal for Signal ground Auxiliary Channel ML_Lane 1(n) Data1 - Signal ground AUX_CH(n) AUX - Signal for ML_Lane 2(p) Data2 + Auxiliary Channel...
  • Page 12 1.5.3 Signal Connector Description USB Connector (Plug) Supply Voltage Ground Connection USB Signal USB Signal...

  • Page 13: Package Overview

    1.6 Package Overview LCD Display Power Cord DC Power Supply OSD Key pad DP cable VGA cable USB cable (A to B) Brackets Screw...
  • Page 14 This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12Vdc, 1.0A minimum, Tma = 50 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension nominale de...

  • Page 15: Chapter 2

    Chapter 2 Product Installation...

  • Page 16: About Vesa Mount

    2.1 About VESA Mount “VESA Flat Display Mounting Interface The OF-100P-A1 series conform to the Standard” which defines a physical mounting interface for touch monitor and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit.
  • Page 17 2.2 About Wall Mount The OF-100P-A1 series support wall mount and this monitor can be mounted to the wooden or concrete wall with 8xM4 screws diameter with 6mm length and two bracket set on the opposites. 2.2.1 Landscape Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device.

  • Page 18: Portrait

    2.2.2 Portrait A. The left and right sides B. The Top and bottom sides...

  • Page 19: Face Up

    2.2.3 Face Up Step1: Attach Bracket 1 to Assembly OF-100P-A1 with included screws. Step2: Attach Bracket 2 on customer’s cabinet with included screws Step3: Attach Step1 to Step2 with included screws.

  • Page 20: On-Screen Display

    2.3 On-Screen Display The OF-100P-A1 series provide RJ45 port for connecting with OSD remote key. And the following is OSD key function table: OSD Key Menu off status Menu on status Menu appear Menu disappear/ return to main item ▲...
  • Page 21 Use the "Enter" key to select OSD or Power setting then set at “Lock” by pushing the "UP" or "Down" button. When the "UP" or "Down" button is released, the previous setting will be saved and exit the “Lock/Unlock” menu automatically. To Unlock the OSD / Power menu buttons, please follow the instructions below.(Please note: the monitor has to be turned ON with a valid signal pre-set)Press and hold the “Menu”...

  • Page 22: Osd Function Description

    2.3.1 OSD Function Description ITEM CONTENT Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. Horizontal size The screen image horizontal dot clock adjustment.

  • Page 23: Timing Table Chart

    2.3.2 Timing Table Chart Polarity H-Freq. Band Width Mode Resolution (KHz) (MHz) － － 640x480 60 Hz 31.47 25.175 ＋ ＋ 800x600 60 Hz 37.88 － － 1024x768 60 Hz 48.363 － ＋ 1280x800 60 Hz 49.702 83.5 Note: If input H-display >1280 pixel or V-display>800 lines or V-Sync >60Hz, then OSD shall display warning out of range.

  • Page 24: Dimension

    2.4 Dimension 2.4.1 Front View 2.4.2 Side View...

  • Page 25: Rear View

    2.4.3 Rear View...

  • Page 26: Appendix

    Appendix...
  • Page 27 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：OF-100P-A1 Type designation (Type) ：OF-100P-A1 Equipment name：Touch LCD Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead...
