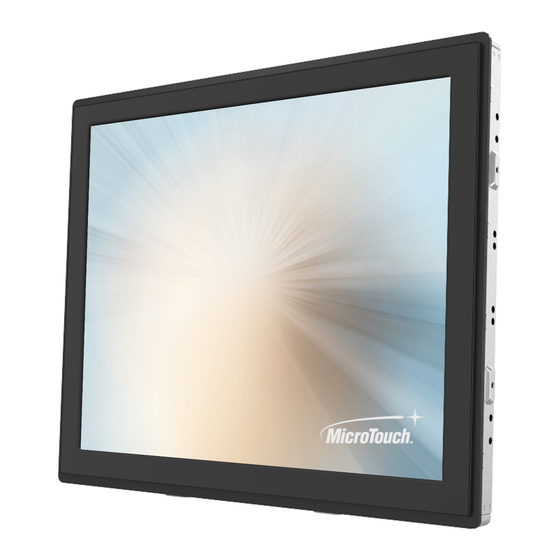

MicroTouch OF-170P-A1 User Manual

Open frame touch monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

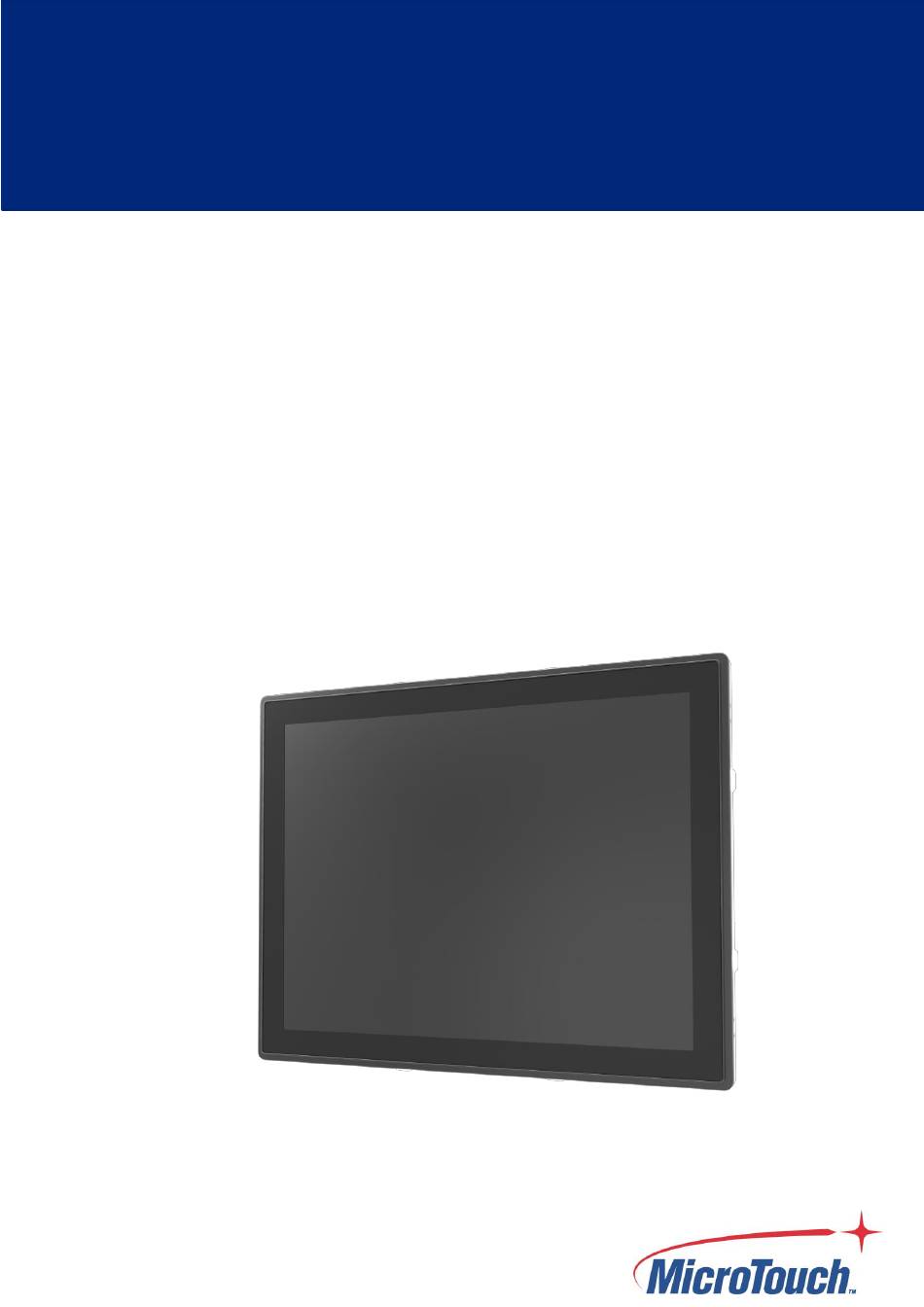

User Manual
Version 2.0 2021/03
OF-170P-A1
Open Frame Touch Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OF-170P-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for MicroTouch OF-170P-A1

Summary of Contents for MicroTouch OF-170P-A1

  • Page 1 User Manual Version 2.0 2021/03 OF-170P-A1 Open Frame Touch Monitor...
  • Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe B selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................10 1.5 Interface Connectors ....................11 1.5.1 Power Connector ..................... 11 1.5.2 Video Signal Connector ................... 11 1.6 Package Overview ....................14 Chapter 2 ........................

  • Page 8: Chapter 1

    Chapter 1 Product Introduction...

  • Page 9: Overview

    1.1 Overview The OF-170P-A1 series is developed for finance industry or hospitality. The OF-170P-A1 is a 17.0 inches touch display which uses the last touch technology. 1.2 Feature ▪ Support 75mm and 100mm VESA mount ▪ 1280 x 1024 resolution ▪...
  • Page 10 MISE EN GARDE! Risque d'explosion si la batterie est remplacée par un type incorrect. Jetez les piles usages conformément aux instructions.

  • Page 11: Block Diagram

    1.4 Block Diagram...

  • Page 12: Interface Connectors

    1.5 Interface Connectors 1.5.1 Power Connector The DC input power via 2.1mm DC jack. All DC power cables must be latching. 1.5.2 Video Signal Connector Signal Signal GREEN BLUE HSYNC RED_RTN VSYNC GREEN_RTN BLUE_RTN...
  • Page 13 Signal Signal TMDS Data 2- TMDS 3+ TMDS Data 2+ +5V DDC Power TMDS Data 2/4 Shield Gnd (+5, Analog V/H Sync) TMDS 4- Hot Plug Detect TMDS 4+ TMDS Data 0- DDC Clock TMDS Data 0+ DDC Data TMDS Data 0/5 Shield No Connection TMDS Data 5- TMDS Data 1-...
  • Page 14 RJ11 Connector (Remote Key) Signal MENU DOWN SELECT POWER...

  • Page 15: Package Overview

    12Vdc, 3A minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est destiné à être alimenté par un adaptateur secteur homologué ou une source d'alimentation CC, d’une tension nominale de 12Vdc, 3A minimum,...

  • Page 16: Chapter 2

    Chapter 2 Product Installation...

  • Page 17: About Vesa Mount

    2.1 About VESA Mount The OF-170P-A1 series conform to the “VESA Flat Display Mounting Interface Standard” which defines a physical mounting interface for touch monitor, and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit.
  • Page 18 Mise en garde! Sélectionner les vis d’origine de MicroTouch! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm. Utiliser les vis quatre M4 de diamètre avec la longueur appropriée pour monter votre moniteur.

  • Page 19: About Wall Mount

    2.2 About Wall Mount The OF-170P-A1 series support wall mount, and this monitor can be mounted to the wooden or concrete wall with 8 screws and four brackets on the opposites. 2.2.1 Attaching the side Brackets Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device.

  • Page 20: Customer Panel Material

    2.2.2 Customer panel material Wooden wall: Ø4.5mm thru holes for M4 screws w/nuts, or no thru holes, screws for wood4mm. Sheet metal: concealed head threaded studs M4 w/nuts. Warning! This apparatus is intended to be supported by a Listed Wall Mount Bracket” or the equivalent.

  • Page 21: On-Screen Display

    2.3 On-Screen Display Menu off status Menu on status Menu appear Menu disappear/ return to main item Brightness Main item select up/ Adjust up ▲ Contrast Main item select down/ Adjust down ▼  Enter/Select sub-item function Power On/Off 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down”...
  • Page 22 When the OSD Lock function is selected, this indicates that all the buttons except “power” button are now disabled. When the Power Lock function is selected, this indicates that the power key is disabled; user can not to turn off the monitor by "Power" key. To disable the touch function, press “Menu”...

  • Page 23: Osd Function Description

    2.3.1 OSD Function Description ITEM CONTENT Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. Left/Right Moving screen image horizontal position to left or right. Up/Down Moving screen image vertical position to up or down. Horizontal size The screen image horizontal dot clock adjustment.

  • Page 24: Timing Table Chart

    The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. This configuration shall contain the 128-byte EDID file as specified by VESA EDID Standard. Monitor Model name....OF-170P-A1 Manufacturer..... STD Plug and Play ID..STD3082...

  • Page 25: Dimension

    2.4 Dimension 2.4.1 Front View 2.4.2 Side View...

  • Page 26: Rear View

    2.4.3 Rear View...

  • Page 27: Appendix

    Appendix...
  • Page 28 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：OF-170P-A1 Type designation (Type) ：OF-170P-A1 Equipment name：Touch LCD Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead...
