Summary of Contents for MicroTouch OF-150P-A1
- Page 1 User Manual Version 2.0 2021/03 OF-150P-A1 Open Frame Touch Monitor...
- Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
- Page 3 Compliance Information For FCC (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe B selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
- Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
- Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
-
Page 7: Table Of Contents
Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ..................... 10 1.5.2 Video Signal Connector ................... 10 1.6 Package Overview ....................12 Chapter 2 ........................ -
Page 8: Chapter 1
Chapter 1 Product Introduction... -
Page 9: Overview

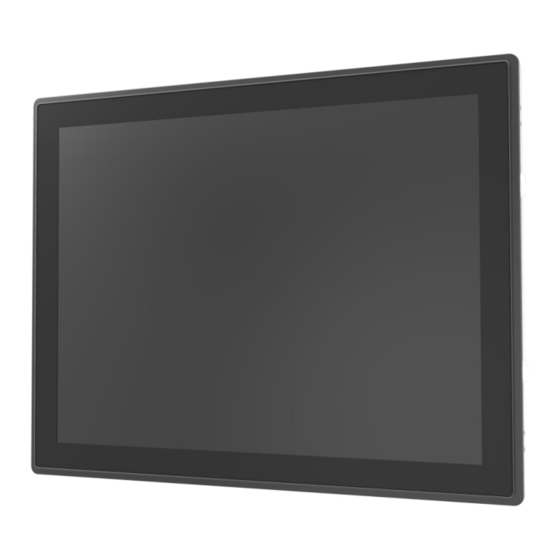

1.1 Overview The OF-150P-A1 series is developed for finance industry or hospitality. The OF-150P-A1 is a 15 inches touch display which uses the last touch technology. 1.2 Feature ▪ Support 75mm VESA mount ▪ 1024 x 768 resolution ▪ Touch type: Projected Capacitive ▪... -
Page 10: Block Diagram
1.4 Block Diagram... -
Page 11: Interface Connectors
1.5 Interface Connectors 1.5.1 Power Connector The AC/DC converter shall have an IEC320 type male power receptacle for connection to AC mains power. The power cord, exact type to be supplied in the appropriate Option Kit, shall be length of 1.8 0.05 meters, and PC99 compliant. 1.5.2 Video Signal Connector Signal Signal... - Page 12 Signal Signal TMDS Data 2- TMDS 3+ TMDS Data 2+ +5V DDC Power TMDS Data 2/4 Shield Gnd (+5, Analog V/H Sync) TMDS 4- Hot Plug Detect TMDS 4+ TMDS Data 0- DDC Clock TMDS Data 0+ DDC Data TMDS Data 0/5 Shield No Connection TMDS Data 5- TMDS Data 1-...
-
Page 13: Package Overview
This product is intended to be supplied by a Listed Power Adapter or DC power source, rated 12Vdc, 2.5A minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est destiné... -
Page 14: Chapter 2
Chapter 2 Product Installation... -
Page 15: About Vesa Mount
2.1 About VESA Mount The OF-150P-A1 series conform to the “VESA Flat Display Mounting Interface Standard” which defines a physical mounting interface for touch monitor, and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit. - Page 16 Mise en garde! Sélectionner les vis d’origine de MicroTouch! La distance entre la surface du couvercle arrière et le bas de l’orifice de la vis est de 8 mm et 18mm. Utiliser les vis M4 de diamètre pour le montage de votre moniteur.
-
Page 17: About Wall Mount
2.2 About Wall Mount The OF-150P-A1 series support wall mount, and this monitor can be mounted to the wooden or concrete wall with 8 screws and four brackets on the opposites. 2.2.1 Attaching the side Brackets Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device. -
Page 18: Customer Panel Material
2.2.2 Customer panel material Wooden wall: Ø4.5mm thru holes for M4 screws w/nuts, or no thru holes, screws for wood4mm. Sheet metal: concealed head threaded studs M4 w/nuts. Warning! This apparatus is intended to be supported by a Listed Wall Mount Bracket” or the equivalent. -
Page 19: On-Screen Display
2.3 On-Screen Display Menu off status Menu on status Menu appear Menu disappear/ return to main item Brightness Main item select up/ Adjust up ▲ Contrast Main item select down/ Adjust down ▼ Enter/Select sub-item function Power On/Off Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down”... - Page 20 When the "UP" or "Down" button is released, the previous setting will be saved and exit the “Lock/Unlock” menu automatically. To Unlock the OSD / Power menu buttons, please follow the instructions below. (Please note: the monitor has to be turned ON with a valid signal pre-set) Press and hold the “Menu”...
-
Page 21: Osd Function Description
2.3.1 OSD Function Description ITEM CONTENT Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Auto Adjust Fine-tune the image to full screen automatically. NA Moving screen image horizontal position to left Left/Right or right. Moving screen image vertical position to up or Up/Down down. -
Page 22: Timing Table Chart
The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. This configuration shall contain the 256-byte EDID file as specified by VESA EDID Standard Monitor Model name....OF-150P-A1 Manufacturer..... STD Plug and Play ID..STD2142... -
Page 23: Dimension
2.4 Dimension 2.4.1 Front View 2.4.2 Side View... -
Page 24: Rear View
2.4.3 Rear View... -
Page 25: Appendix
Appendix... - Page 26 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：OF-150P-A1 Type designation (Type) ：OF-150P-A1 Equipment name：Touch LCD Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead...
