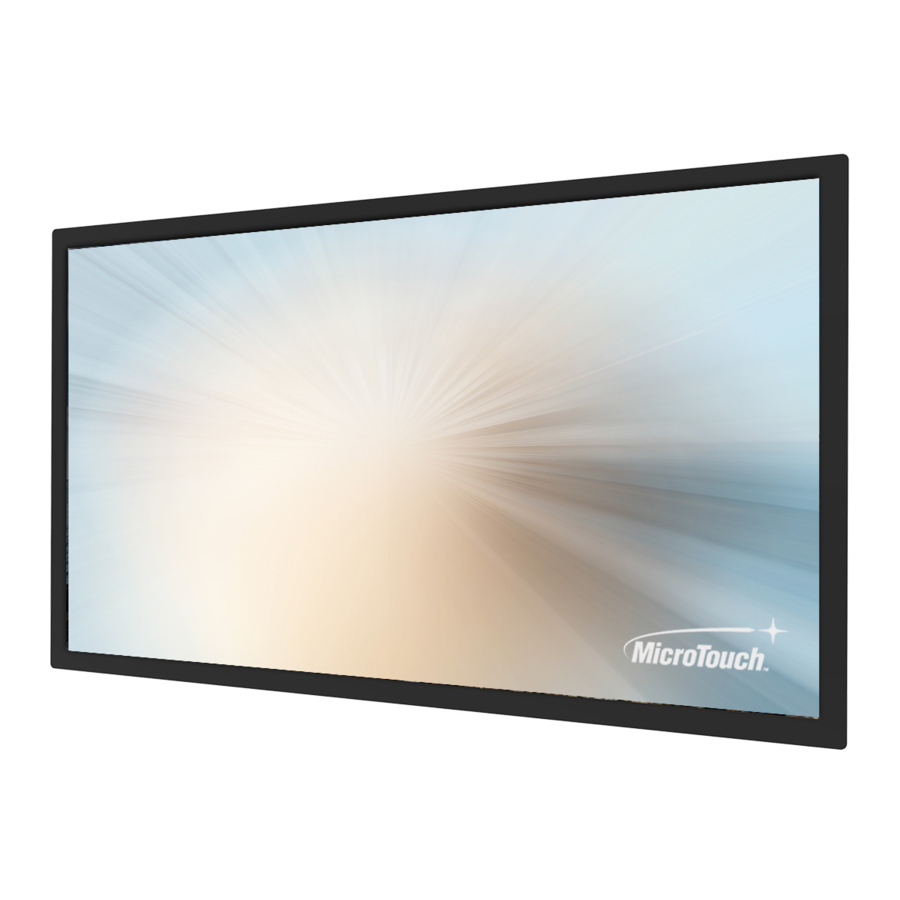

MicroTouch OF-320P-A1 User Manual

Open frame touch monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
OF-320P-A1
Open Frame Touch Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OF-320P-A1 and is the answer not in the manual?

Questions and answers

Related Manuals for MicroTouch OF-320P-A1

Summary of Contents for MicroTouch OF-320P-A1

  • Page 1 User Manual OF-320P-A1 Open Frame Touch Monitor...
  • Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Compliance Information For FCC (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe B selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
  • Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
  • Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...

  • Page 7: Table Of Contents

    Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ..................... 10 1.5.2 Video Signal Connector ................... 10 1.5.3 Signal Connector ....................12 1.6 Package Overview ....................

  • Page 8: Chapter 1

    Chapter 1 Product Introduction...

  • Page 9: Overview

    1.1 Overview OF-320P-A1 series supports landscape or portrait and low power consumption at the maximum consumption of 45W. OF-320P-A1 provides application for Interactive whiteboard and digital signage. 1.2 Feature ▪ VESA mounting holes for various mounting options. ▪ Multilingual OSD user control ▪...

  • Page 10: Block Diagram

    1.4 Block Diagram This section describes the electrical requirements of the monitor. The block diagram in figure 1 illustrates the various electrical sub-systems.

  • Page 11: Interface Connectors

    1.5 Interface Connectors 1.5.1 Power Connector The monitor shall have a power control switch visible and accessible on the bottom of the monitor. The power switch shall be marked with icons per IEC 417, #5009. The operation of the power switch should be programmable thru monitor firmware control.
  • Page 12 HDMI Name Description DATA2+ TMDS Data+ Dat2 shield TMDS Data Shield DATA2- TMDS Data– DATA1 TMDS Data+ Dat1 shield TMDS Data Shield DATA2- TMDS Data– DATA0 TMDS Data+ Dat0 shield TMDS Data Shield DATA0- TMDS Data– clk+ TMDS Clock+ clk shield TMDS Clock Shield clk- TMDS Clock-...

  • Page 13: Signal Connector

    ML_Lane 1(n) Data1 - Signal ground AUX_CH(n) AUX - Signal for ML_Lane 2(p) Data2 + Auxiliary Channel Signal ground Hot Plug ML_Lane 2(n) Data 2 - DP_PWR Return ML_Lane 3(p) Data3 + DP_PWR 1.5.3 Signal Connector USB Connector Name Description USB Power -5V Data - Data +...

  • Page 14: Package Overview

    This product is intended to be supplied by a AC-in Power source, rated 100V~240V, 1.5A 50/60Hz minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information.
  • Page 15 100 V~240 V, 1,5 A 50/60 Hz minimum, Tma = 40 degrés C minimum et l’altitude de l’utilisation = 3048 m minimum. Pour d’autres conseils pour l’installation de la source d’alimentation, communiquer avec MicroTouch pour de plus amples renseignements.

  • Page 16: Chapter 2

    Chapter 2 Product Installation...

  • Page 17: About Vesa Mount

    2.1 About VESA Mount “VESA Flat Display Mounting Interface The OF-320P-A1 series conform to the Standard” which defines a physical mounting interface for touch monitor and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit.

  • Page 18: Install The Vesa Screw

    2.1.1 Install the VESA screw Note: Please install/ dismantle the product when the device is in the shutdown state. Please use M6/8mm screws diameter with to mount your monitor.

  • Page 19: About General Mounting Information

    2.2 About General Mounting Information The following two mounting orientations are supported: Landscape and portrait mode. For optimal touch performance, ensure that the monitor is supported fully and is as flat as possible. 2.2.1 Landscape Top side 2.2.2 Portrait Top side...

  • Page 20: On-Screen Display

    2.3 On-Screen Display The OF-320P-A1 series provide side panel controls. And the following is OSD function table: Menu off status Menu on status MENU Menu appear Menu disappear/ return to main item ▲ Brightness Main item select up/ Adjust up ▼...
  • Page 21 10. Direct input select function Normal: Press and keep pressing “Select” key for 3 seconds, will change to pop up “source select” OSD. Sleep status: Press and keep pressing “Select” key for 1 seconds, will change to pop up “source select” OSD. Please note: When choosing VGA, only VGA signal can wake up monitor.

  • Page 22: Osd Function Description

    2.3.1 OSD Function Description Item Content Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. H-Positon Moving screen image horizontal position to left or right. V-Positon Moving screen image vertical position to up or down. Phase The screen image horizontal dot clock adjustment.

  • Page 23: Timing Table Chart

    2.3.2 Timing Table Chart Polarity H-Freq. Band Width Mode Resolution (KHz) (MHz) 640x480 60Hz 31.47 25.175 800x600 60Hz 37.88 1024x768 60Hz 48.36 1280x720 60Hz 44.77 74.5 1280x1024 60Hz 1366x768 60Hz 47.7 85.38 1680x1050 60Hz 65.2 1920X1080 60Hz 67.5 148.5 2.3.3 EDID Data The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements.

  • Page 24: Dimension

    2.4 Dimension 2.4.1 Front View 2.4.2 Side View...

  • Page 25: Rear View

    2.4.3 Rear View...

  • Page 26: Appendix

    Appendix...
  • Page 27 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：OF-320P-A1 Type designation (Type) ：OF-320P-A1 Equipment name：Touch Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead Mercury...
