Summary of Contents for MicroTouch DT-215P-M1

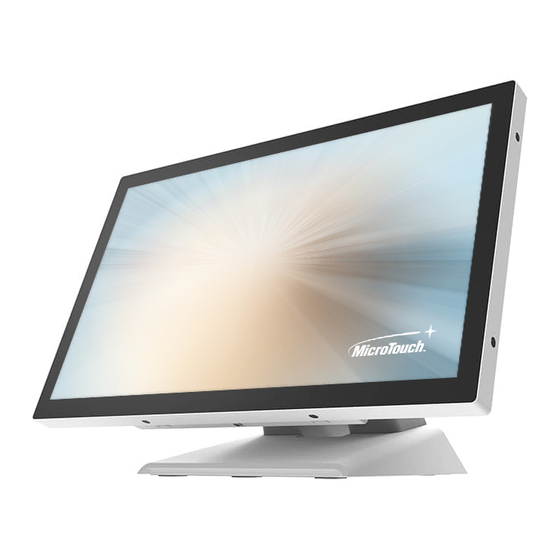

- Page 1 User Manual DT-215P-M1 Medical-Grade Desktop Monitor...
- Page 2 MicroTouch a TES Company. The information in this document is subject to change without notice. MicroTouch TES Company makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
- Page 3 Compliance Information For FCC (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 Renseignements relatifs à la conformité Pour la FCC (États-Unis). Ce matériel a fait l’objet d’essais qui ont déterminé qu’il respectait les limites d’un appareil de classe B selon la partie 15 des règlements de la FCC. Ces limites sont établies pour assurer une protection raisonnable contre les parasites nuisant à...
- Page 5 Usage Notice Warning - To prevent the risk of fire or shock hazards, and do not expose the product to moisture. Warning - Please do not open or disassemble the product as this may cause electric shock. Warning - Power cord shall be connected to a socket-outlet with earthing connection.
- Page 6 Avis d’utilisation Mise en garde — Pour prévenir les risques d’incendie ou d’électrocution, ne pas exposer le produit à l’humidité. Mise en garde — Prière de ne pas ouvrir ou démonter le produit, car cela pourrait entraîner l’électrocution. Mise en garde – Le cordon d’alimentation doit être branché à une prise pourvue d’une mise à...
-
Page 7: Table Of Contents
Table of Contents Chapter 1 ........................7 1.1 Overview ........................8 1.2 Feature ........................8 1.3 Specifications ......................8 1.4 Block Diagram......................9 1.5 Interface Connectors ....................10 1.5.1 Power Connector ..................... 10 1.5.2 Video Signal Connector ................... 10 1.5.3 Signal Connector ....................12 1.6 Package Overview .................... -
Page 8: Chapter 1
Chapter 1 Product Introduction... -
Page 9: Overview
1.1 Overview The DT-215P-M1 series is a 21.5” touchscreen monitor that builds to withstand commercial grade open frame monitor, with stylish thin cable management bracket and versatile design DT-215P-M1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage. -
Page 10: Block Diagram
1.4 Block Diagram... -
Page 11: Interface Connectors
1.5 Interface Connectors 1.5.1 Power Connector The DC power via external 12V Adapter provide it 1.5.2 Video Signal Connector The video signal input via D-type 15-pin female connector. Connector Pin Assignment: Signal GREEN BLUE RED_RTN GREEN_RTN BLUE_RTN HSYNC VSYNC... - Page 12 Display Port(1.2a) Signal Signal ML_Lane 0(p) Data0 + Signal ground Signal ground ML_Lane 3(n) Data3 - ML_Lane 0(n) Data0 - Signal ground ML_Lane 1(p) Data1 + Signal ground AUX_CH(p) AUX + Signal for Signal ground Auxiliary Channel ML_Lane 1(n) Data1 - Signal ground AUX_CH(n) AUX - Signal for ML_Lane 2(p) Data2 +...
-
Page 13: Signal Connector
1.5.3 Signal Connector USB Connector Signal Signal RJ11 Connector (for Remote Key) (option) Signal Signal MENU SELECT POWER DOWN Line-in Connector Signal Signal LEFT LEFT RIGHT RIGHT... -
Page 14: Package Overview
12Vdc, 4A minimum, Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to MicroTouch for further information. Mise en garde! Cet appareil est conçu avec une alimentation de courant CA, d’une tension nominale de 12Vdc, 4A minimum, Tma = 40 degrés C minimum et l’altitude de... -
Page 15: Chapter 2
Chapter 2 Product Installation... -
Page 16: About Vesa Mount
2.1 About VESA Mount The DT-215P-M1 series conform to the “VESA Flat Display Mounting Interface Standard” which defines a physical mounting interface for touch monitor, and corresponding with the standards of touch monitor mounting devices. The VESA mount is located on the back of this unit. -
Page 17: About Wall Mount
2.2 About Wall Mount The DT-215P-M1 series support wall mount, and this monitor can be mounted to the wooden or concrete wall with 8xM4 screws diameter with 6mm length and two bracket set on the opposites. 2.2.1 Landscape Depending on your mounting scheme, alternately, you may use the side brackets to mount your displays onto your wall or device. - Page 18 Warming! This apparatus is intended to be supported by a Listed Wall Mount Bracket” or the equivalent. Mise en garde! Cet appareil est conçu pour être supporté par un support de fixation mural répertorié ”ou l’équivalent.
-
Page 19: Portrait
2.2.2 Portrait A. The left and right sides B. The Top and bottom sides... -
Page 20: Face Up
2.2.3 Face up Step1: Fixed the 4 x L-bracket on the 4-side of DT-215P-M1 Back side Step2: Assembly DT-215P-M1 into the wall hole and insert screws. Back side Front side... -
Page 21: On-Screen Display
2.3 On-Screen Display Menu off status Menu on status Menu appear Menu disappear/ return to main item Brightness Main item select up/ Adjust up ▲ Mute Main item select down/ Adjust down ▼ Enter/Select sub-item function Power On/Off 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down”... - Page 22 When the OSD Lock function is selected, this indicates that all the buttons except “power” button are now disabled. When the Power Lock function is selected, this indicates that the power key is disabled; user can not to turn off the monitor by "Power" key. To disable the touch function, press “Menu”...
-
Page 23: Osd Function Description
2.3.1 OSD Function Description Item Content Default Contrast The monitor luminance level control. Brightness The monitor backlight level control. Moving screen image horizontal position H-Positon to left or right. Moving screen image vertical position to V-Positon up or down. The screen image horizontal dot clock Phase adjustment. -
Page 24: Timing Table Chart
2.3.2 Timing Table Chart Polarity H-Freq. Band Width Mode Resolution (KHz) (MHz) VGA 720x400 70Hz 31.47 28.322 VGA 640x480 60Hz 31.47 25.175 MAC 640x480 66Hz 32.24 VESA 640x480 72Hz 37.86 31.5 VESA 640X480 75Hz 37.5 31.5 VESA 800x600 56Hz 35.16 VESA 800x600 60Hz 37.88 VESA 800x600 75Hz... -
Page 25: Dimension
2.4 Dimension 2.4.1 Front View 2.4.2 Side View... -
Page 26: Rear View
2.4.3 Rear View... -
Page 27: Appendix
Appendix... - Page 28 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：觸控螢幕 型號（型式）：DT-215P-M1 Type designation (Type) ：DT-215P-M1 Equipment name：Touch LCD Monitor 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium Hexavalent Polybrominated Polybrominated Lead...
