Type 067-0599-00
General

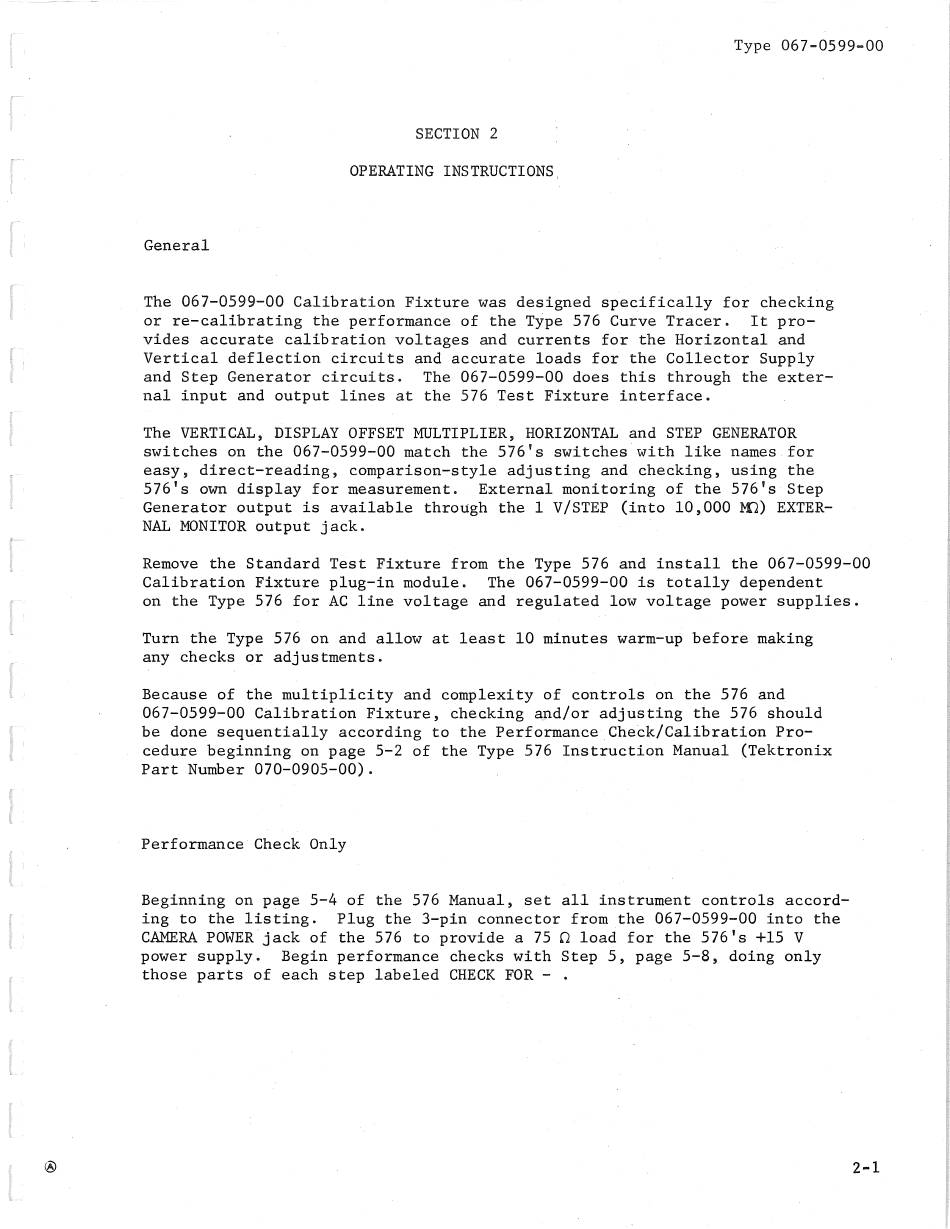

SECTION 2
OPERATING INSTRUCTIONS
The 067-0599-00
Calibration
Fixture
was designed
specifically
for checking
or re-calibrating
the performance
of the Type 576 Curve Tracer.
It pro-
vides
accurate
calibration
voltages
and currents
for the Horizontal
and
Vertical
deflection
circuits
and accurate
loads
for the Collector
Supply
and Step Generator
circuits.
The 067-0599-00
does this
through
the exter-
nal input
and output
lines
at the 576 Test Fixture
interface.
The VERTICAL, DISPLAY OFFSET MULTIPLIER, HORIZONTAL and STEP GENERATOR
switches
on the 067-0599-00
match the 576's
switches
with like
names for
easy,
direct-reading,
comparison-style
adjusting
and checking,
using
the
576's
own display
for measurement.
External
monitoring
of the 576's
Step
Generator
output
is available
through
the 1 V/STEP (into
10,000
m)
EXTER-
NAL MONITOR output
jack.
Remove the Standard
Test Fixture
from the Type 576 and install
the 067-0599-00
Calibration
Fixture
plug-in
module.
The 067-0599-00
is totally
dependent
on the Type 576 for AC line
voltage
and regulated
low voltage
power supplies.
Turn the Type 576 on and allow at least
10 minutes
warm-up before
making
any checks
or adjustments.
Because of the multiplicity
and complexity
of controls
on the 576 and
067-0599-00
Calibration
Fixture,
checking
apd/or
adjusting
the 576 should
be done sequentially
according
to the Performance
Check/Calibration
Pro-
cedure
beginning
on page 5-2 of the Type 576 Instruction
Manual (Tektronix
Part
Number 070-0905-00).
Performance
Check Only
Beginning
on page 5-4 of the 576 Manual,
set
all
instrument
controls
accord-
ing to the listing.
Plug the 3-pin
connector
from the 067-0599-00
into
the
CAMERA POWER jack
of the 576 to provide
a 75
0
load for the 576's
+15 V
power supply.
Begin performance
checks with Step 5, page 5-8,
doing only
those parts
of each step
labeled
CHECK FOR - .
2-1
