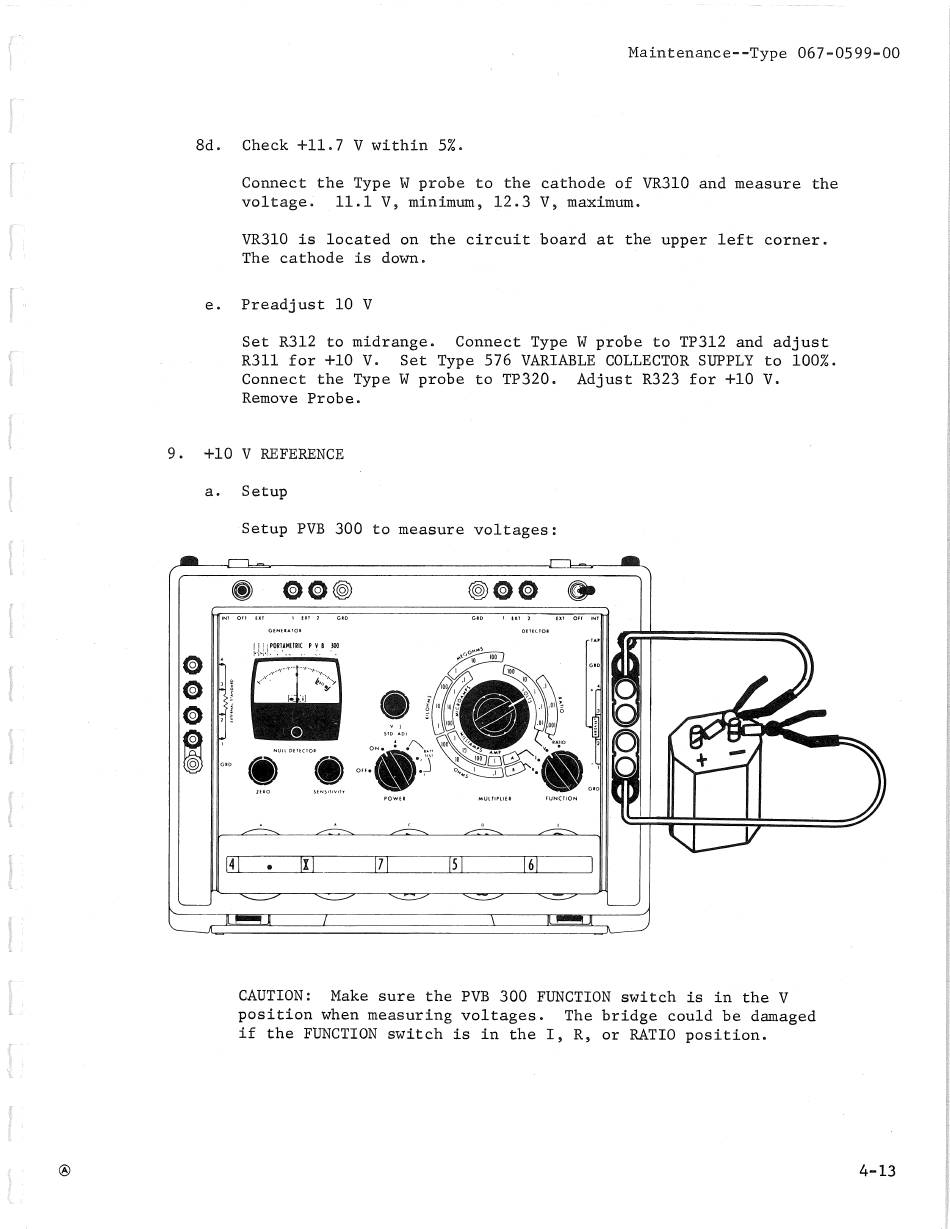

Tektronix 067-0599-00 Manual page 25

®
Maintenance--Type 067-0599-00
8d. Check +11.7 V within 5%.
Connect the Type W probe to the cathode of VR310 and measure the
voltage. 11.1 V, minimum, 12.3 V, ma~imum.
VR310 is located on the circuit board at the upper left corner.
The cathode is down.
e. Preadjust 10 V
Set R312 to midrange. Connect Type W probe to TP312 and adjust
R311 for +10 V. Set Type 576 VARIABLE COLLECTOR SUPPLY to 100%.
Connect the Type W probe to TP320. Adjust R323 for +10 V.
Remove Probe.
9. +10 V REFERENCE
a. Setup
o·
~
J ; v!
~j
v
,!
I
Setup PVB 300 to measure voltages:
GID I UT 1 OT Off INT
DflH.101
'I
- -
SID ADJ J \
O.N
O
!
•;J~;;:
IOO IO
1 ;'•~;.
ffir:St:'i•·",,
''l~ - :
OH• • o-'1- 1 I~-•
' "'s .
\_!/
GOO
POWER FUNCTION
14
I
•
III
11
I
1s I
I
61
CAUTION: Make sure the PVB 300 FUNCTION switch is in the V
position when measuring voltages. The bridge could be damaged
if the FUNCTION switch is in the I, R, or RATIO position.
4-13
