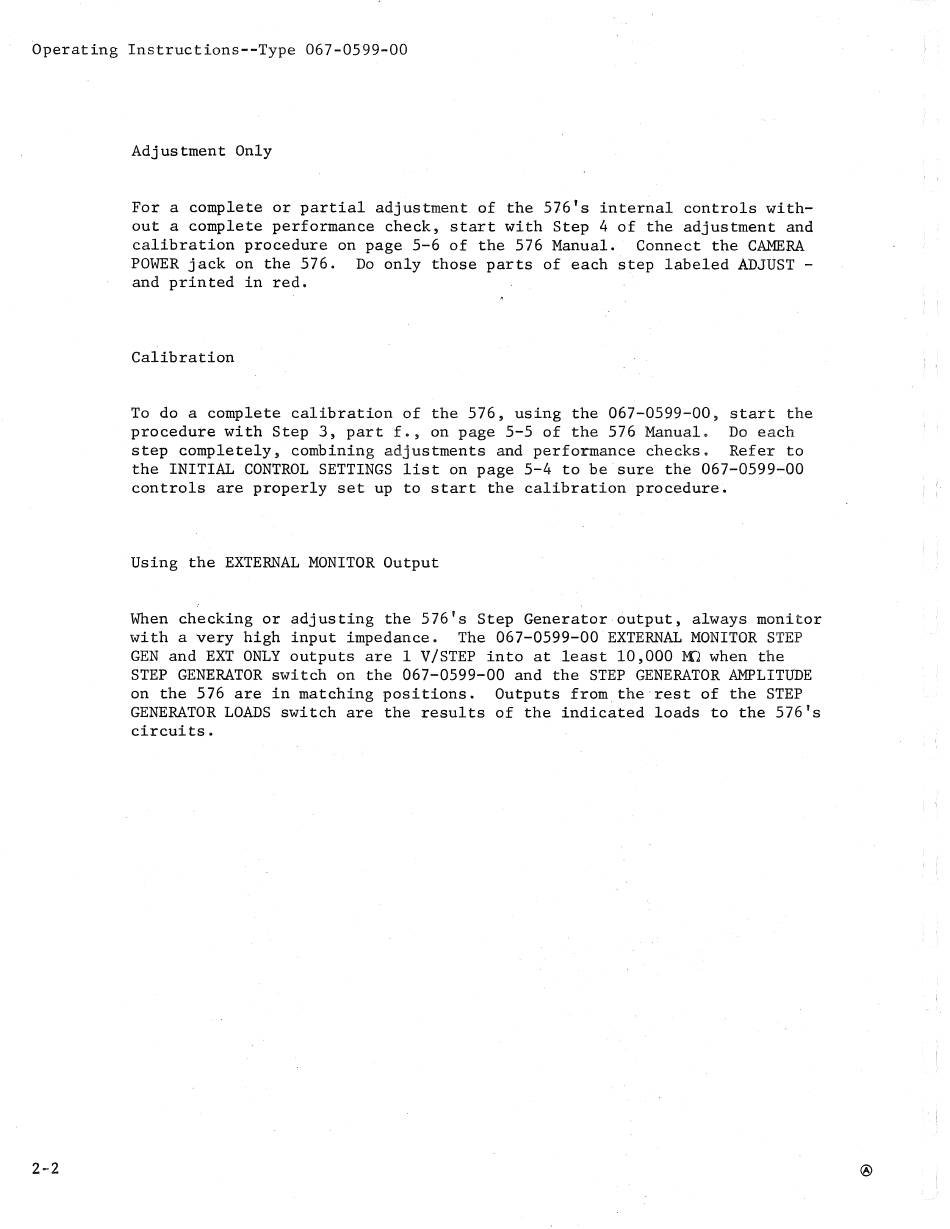

Operating
Instructions--Type
067-0599-00
2-2
Adjustment
Only
For a complete
or partial
adjustment
of the 576's
internal
controls
with-
out a complete
performance
check,
start
with Step 4 of the adjustment
and
calibration
procedure
on page 5-6 of the 576 Manual.
Connect the CAMERA
POWER jack
on the 576.
Do only those parts
of each step
labeled
ADJUST -
and printed
in red.
Calibration
To do a complete
calibration
of the 576, using
the 067-0599-00,
start
the
procedure
with Step 3, part
f.,
on page 5-5 of the 576 Manual.
Do each
step
completely,
combining
adjustments
and performance
checks.
Refer
to
the INITIAL CONTROL SETTINGS list
on page 5-4 to be sure
the 067-0599-00
controls
are properly
set up to start
the calibration
procedure.
Using the EXTERNAL MONITOR Output
When checking
or adjusting
the 576's
Step Generator
output,
always monitor
with a very high input
impedance.
The 067-0599-00
EXTERNAL MONITOR STEP
GEN and EXT ONLY outputs
are 1 V/STEP into
at least
10,000 ill when the
STEP GENERATOR switch
on the 067-0599-00
and the STEP GENERATOR AMPLITUDE
on the 576 are in matching
positions.
Outputs
from the rest
of the STEP
GENERATOR LOADS switch
are the results
of the indicated
loads
to the 576's
circuits.
I
'
j
I
