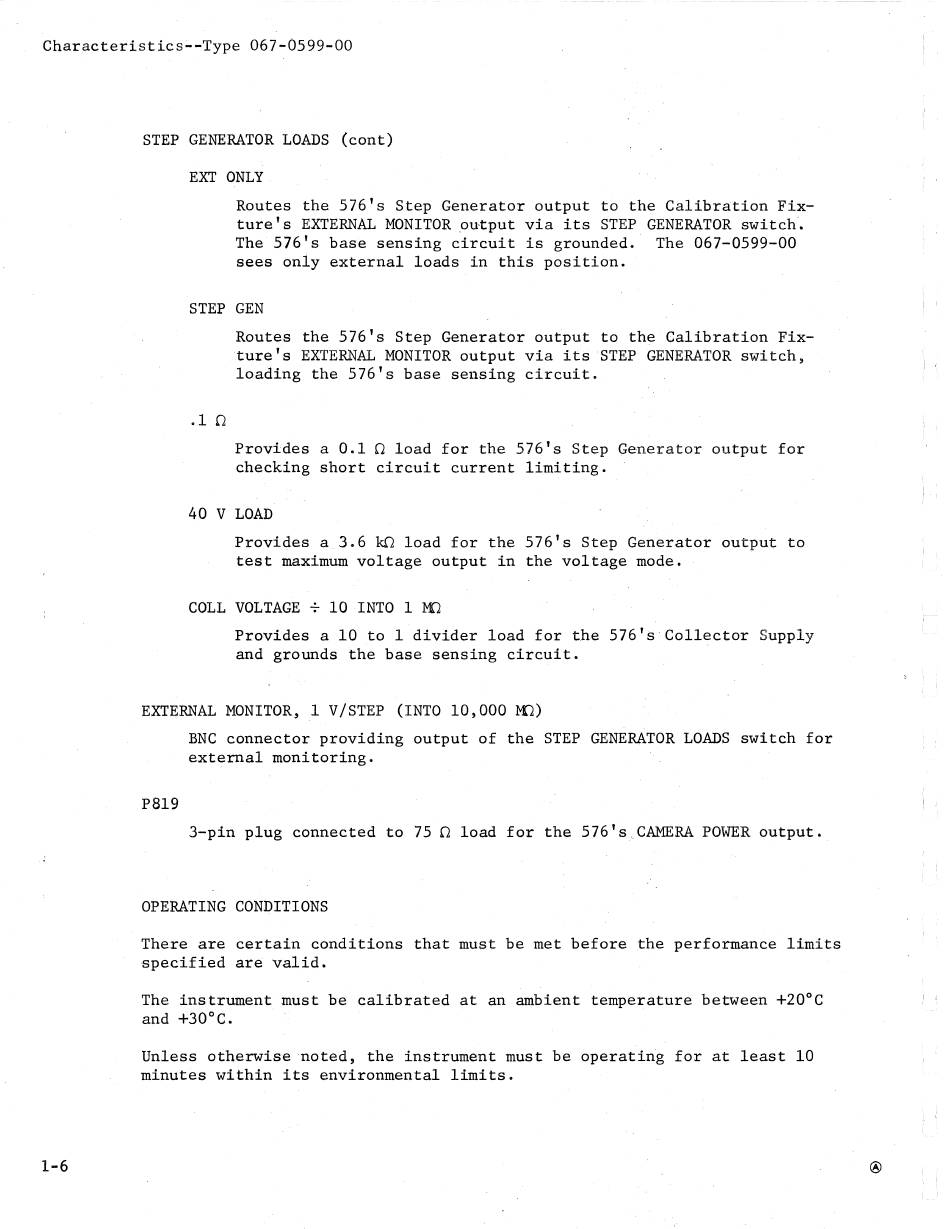

Characteristics--Type 067-0599-00
1-6
STEP GENERATOR LOADS (cont)
EXT ONLY
Routes the 576
1
s Step Generator output to the Calibration Fix-
ture
I
s EXTERNAL MONITOR _ou·tput via its STEP GENERATOR switch.
The 576's base sensing circuit is grounded. The 067-0599-00
sees only external loads in this position.
STEP GEN
. 1 0
Routes the 576's Step Generator output to the Calibration Fix-
ture's EXTERNAL MONITOR output via its STEP GENERATOR switch,
loading the 576's base sensing circuit .
Provides a 0.1
0
load for the 576's Step Generator output for
checking short circuit current limiting.
40 V LOAD
Provides a 3.6
kO
load for the 576's Step Generator output to
test maximum voltage output in the voltage mode.
COLL VOLTAGE+ 10 INTO 1
ill
Provides a 10 to 1 divider load for the 576's·Collector Supply
and grounds the base sensing circuit.
EXTERNAL MONITOR, 1 V/STEP (INTO 10,000
ill)
P819
BNC connector providing output of the STEP GENERATOR LOADS switch for
external monitoring.
3-pin plug connected to 75
0
load for the 576's CAMERA POWER output.
OPERATING CONDITIONS
There are certain conditions that must be met before the performance limits
specified are valid.
The instrument must be calibrated at an ambient temperature between +20°C
and +30°C.
Unless otherwise noted, the instrument must be operating for at least 10
minutes within its environmental limits.
!
