Summary of Contents for Westcott u60-B
- Page 1 QUICK START GUIDE...

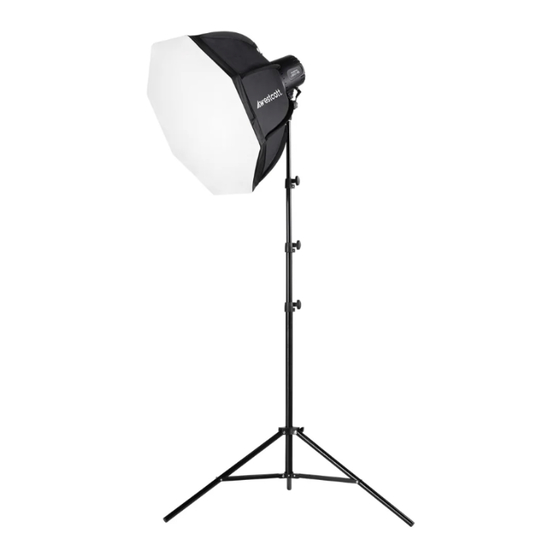

- Page 2 Included Components & Overview u60-B LED Light, Magnetic Collapsible Octabox, Magnetic Diffusion Dome, Remote Control, AC Power Supply & Cable Additional accessories are included with u60-B Kits. See packaging for details.
- Page 3 5. Insert the barrel plug into the power receptacle located on the lower rear portion of the light. 6. Turn the locking nut clockwise to secure to the u60-B. If the locking nut is difficult to turn, the cable’s barrel may not be fully inserted into the u60-B. Gently press the nut towards the u60-B to secure.
- Page 4 1. Allow the u60-B to cool for 5 minutes before adding or removing any modifiers. 2. Grasp the front of the Diffusion Dome and align the dome’s opening with the front of the u60-B. 3. Move the Diffusion Dome closer to the front of the u60-B until the magnetic attraction mounts the modifier to the u60-B.
- Page 5 1. Ensure the u60-B is off. 2. Unplug the AC adapter from the u60-B. 3. Insert the barrel plug of the Westcott D-Tap cable into the power receptacle located on the lower rear portion of the u60-B. 4. Plug the D-Tap connector into the battery.
- Page 6 Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product.
