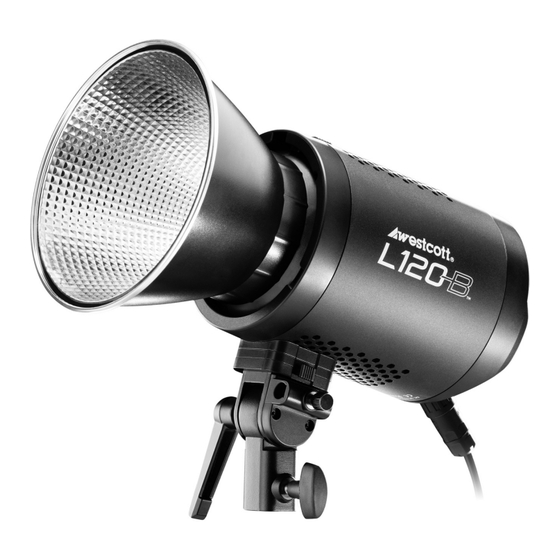

L120-B Bicolor COB
User Manual
v 1.0.0
07/01/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L120-B Bicolor COB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westcott L120-B Bicolor COB

Summary of Contents for Westcott L120-B Bicolor COB

  • Page 1 L120-B Bicolor COB User Manual v 1.0.0 07/01/2024...

  • Page 2: Table Of Contents

    L120-B Bicolor COB Important things to know… Included Components Firmware Updates L120-B COB: Warnings L120-B COB: Overview L120-B COB: LCD Display L120-B COB: Getting Started AC Power Operation DC Power Operation D-Tap Battery L120-B COB: Tilter Bracket Mounting the Tilter Bracket...
  • Page 3 Renaming a Light L120-B COB: Firmware Updates Installing the Firmware Important Firmware Details L120-B COB: Technical Specifications Warranty Information Legal Information...

  • Page 4: L120-B Bicolor Cob

    Please use caution and avoid direct skin contact with the COB LED, surrounding metal components, and accessories after immediate use to avoid serious injury. ● Use only with the Westcott L120-B AC Power Adapter and Cord, the L120-B D-Tap to 2-Pin Power Cable, and 14.4/14.8V D-Tap Batteries.

  • Page 5: L120-B Cob: Overview

    L120-B COB: Overview...

  • Page 6: L120-B Cob: Lcd Display

    L120-B COB: LCD Display...

  • Page 7: L120-B Cob: Getting Started

    L120-B COB: Getting Started AC Power Operation Connect the AC cable to the AC power adapter. 2. Plug the two-prong connector of the cable into a wall outlet. 3. Locate the 2-Pin Power Cable on the AC cable and plug it into the L120-B power port. 4.

  • Page 8: L120-B Cob: Attaching & Removing Modifiers

    L120-B COB: Attaching & Removing Modifiers Connecting a Modifier Ensure that the protective cover has been removed from the front of the L120-B by sliding the modifier release toward the rear of the unit and turn the protective cover counterclockwise. 2.

  • Page 9: Enabling Bluetooth

    Removing a Light Option #1: a. To remove a light from the Westcott StudioLink App, swipe left on the light you would like to remove. b. A red trash can icon will appear to the right of the selected light.
  • Page 10 5. Return to the My Scene Menu, and the new light name will be displayed. L120-B COB: Firmware Updates Installing the Firmware Download the Westcott StudioLink app via the Apple Appstore or Google Play Store. 2. Ensure that the L120-B is on. 3. Open the Westcott StudioLink mobile app.
  • Page 11 L120-B COB: Technical Specifications L120-B: COB Maximum Power Consumption (Watts) Up to 132W Intensity Range 0 - 100% Color Temperature Range 2700 - 6500K Up to 98 TLCI Up to 99 Up to 92 L120-B: AC Power Input AC Requirement 100 to 240 VAC, 50 / 60 Hz 1A max Voltage Output Current...
  • Page 12 Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product.
