Summary of Contents for Westcott L60-B Bicolor COB

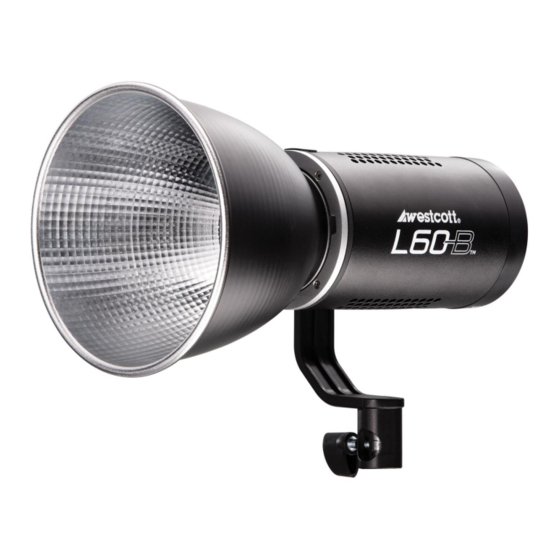

- Page 1 L60-B Bicolor COB User Manual v 1.0.0 9/15/2022...
-
Page 2: Table Of Contents
Contents Contents Important things to know… Included Components Firmware Updates L60-B COB: Warnings L60-B COB: Overview L60-B COB: LCD Display L60-B COB: Getting Started AC Power Operation DC Power Operation L60-B DC Battery Mount D-Tap Battery L60-B COB: Mounting Mounting to a Light Stand Yoke Positioning L60-B COB: Attaching &... -
Page 3: Important Things To Know
NOTE Firmware Updates The L60-B COB is designed to allow for firmware updates over-the-air (OTA) via the free Westcott StudioLink mobile app. The app is available via the Apple App Store and Google Play Store. Future firmware updates may result in performance enhancements, modified menu options, or improved menu layouts. -
Page 4: L60-B Cob: Overview
L60-B COB: Overview... -
Page 5: L60-B Cob: Lcd Display
L60-B COB: LCD Display... -
Page 6: L60-B Cob: Getting Started
L60-B COB: Getting Started AC Power Operation 1. Connect the AC cable to the AC power adapter. 2. Plug the two-prong connector of the cable into a wall outlet. 3. Locate the barrel plug on the AC cable and plug it into the L60-B power port. 4. -
Page 7: L60-B Cob: Attaching & Removing Modifiers
2. When mounting heavier modifiers, we recommend positioning the yoke in the middle of the oval mounting bracket. This will allow for the most secure positioning. NOTE: The L60-B was designed for compatibility with various modifiers. However, the yoke’s positioning, the modifier’s depth, the modifier’s weight & the location of the weight on the modifier could cause the yoke to be unable to maintain the desired position. -
Page 8: Fx Options
L60-B COB: Wireless Control NOTE: App available Winter 2022. Connecting a Light 1. Download the Westcott StudioLink app via the Apple App Store or Google Play Store. 2. Ensure that the L60-B is 3. Open the Westcott StudioLink mobile app. -
Page 9: Connecting Multiple Lights
4. All connected lights will be displayed, and you will have full control over your L60-B lights. Removing a Light 1. Option #1: a. To remove a light from the Westcott StudioLink App, swipe left on the light you would like to remove. trash can b. -
Page 10: Important Firmware Details
Complete, L60-B Restarting, DO NOT UNPLUG.” The L60-B will restart automatically. 20. Press in the Westcott StudioLink App to complete the firmware update. 21. Reconnect your L60-B COB via Bluetooth® after it restarts, utilizing the steps in the section “Connecting a Light.”... -
Page 11: Warranty Information
Warranty Period, at its option and to the extent permitted by law, Westcott will either (1) repair the defect at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product. -
Page 12: Legal Information
(b) damage caused by operating the product outside the permitted or intended uses described by Westcott; (c) a product or part that has been modified to alter functionality or capability without the written permission of Westcott; or (d) cosmetic damage, including but not limited to scratches, dents, and broken plastic.
