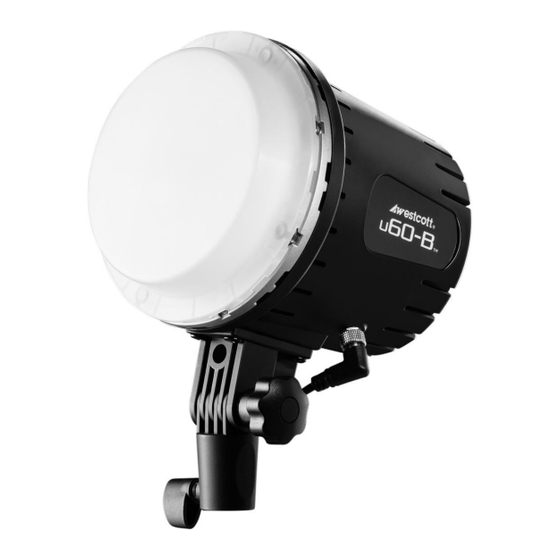

- Page 1 U60-B Bi-color LED User Manual v 1.0 1/01/2024...
-
Page 2: Table Of Contents
Contents Contents ............................1 Components (Included)........................ 2 U60-B: Overview .......................... 3 U60-B: Display ................Error! Bookmark not defined. U60-B: Warnings .......................... 4 Caution ............................4 U60-B: Getting Started ........................ 5 Setting Up the U60-B ........................5 Powering On & Off......................... 5 Adjusting Light Intensity and Color on the Light ................ -
Page 3: Components (Included)
Components (Included) ● U60-B Bi-color LED Light ● U60-B Magnetic Collapsible Octabox ● U60-B Magnetic Diffusion Dome ● U60-B Remote Control ● U60-B AC Power Supply & Cable Additional accessories may be included with U60-B kits. -
Page 4: U60-B: Overview
U60-B: Overview... -
Page 5: U60-B: Warnings
Exercise caution to avoid direct skin contact with the LEDs, surrounding metal components, and accessories immediately after use to prevent serious injury. ● Use only with the Westcott U60-B AC Power Adapter and Cord or 14.4/14.8V D-tap Batteries. Incompatible power sources may compromise performance and safety. ●... -
Page 6: U60-B: Getting Started
U60-B: Getting Started Setting Up the U60-B Loosen the knob closest to the base of the U60-B tilter bracket. Place the U60-B on your preferred light stand or mounting arm, and tighten the knob to secure Loosen the larger knob and adjust the U60-B’s angle to the preferred position. Tighten the knob to secure it in place. -
Page 7: U60-B: Assembly & Mounting The Magnetic Modifiers
U60-B: Assembly & Mounting the Magnetic Modifiers Magnetic Octabox Assembly Face the front of the Octabox downward while grasping the black Octabox adapter ring. While firmly holding the adapter ring, select a single Octabox rib and pull it back until it clicks into position. -
Page 8: Removing An Umbrella Or Umbrella-Based Modifier
Ensure the U60-B is off. Unplug the AC adapter from the U60-B. Insert the barrel plug of the Westcott D-Tap cable into the power receptacle located on the lower rear portion of the U60-B. Plug the D-Tap connector into the battery. -
Page 9: Warranty Information
(b) damage caused by operating the product outside the permitted or intended uses described by Westcott; (c) a product or part that has been modified to alter functionality or capability without the written permission of Westcott; or (d) cosmetic damage, including but not limited to scratches, dents, and broken plastic.
