AKS 4100/4100U
connected to PLC
AKS 4100/4100U
8
Enter menu system
Enter QUICK SETUP
9
© Danfoss | DCS (MWA) | 2016.01
+
+
–
AKS 4100
Unit change at Change between:
distance/level Distance*
readout: Level**
m, cm, mm, in, ft Output (%)***
Output (mA)****
PLC
Active
Analog Input 4-20 mA
14-30 V d.c.
–





*


* DISTANCE is a display option.
** LEVEL is display option.
*** OUTPUT (%) is display option.
**** OUTPUT I (mA) is display option.

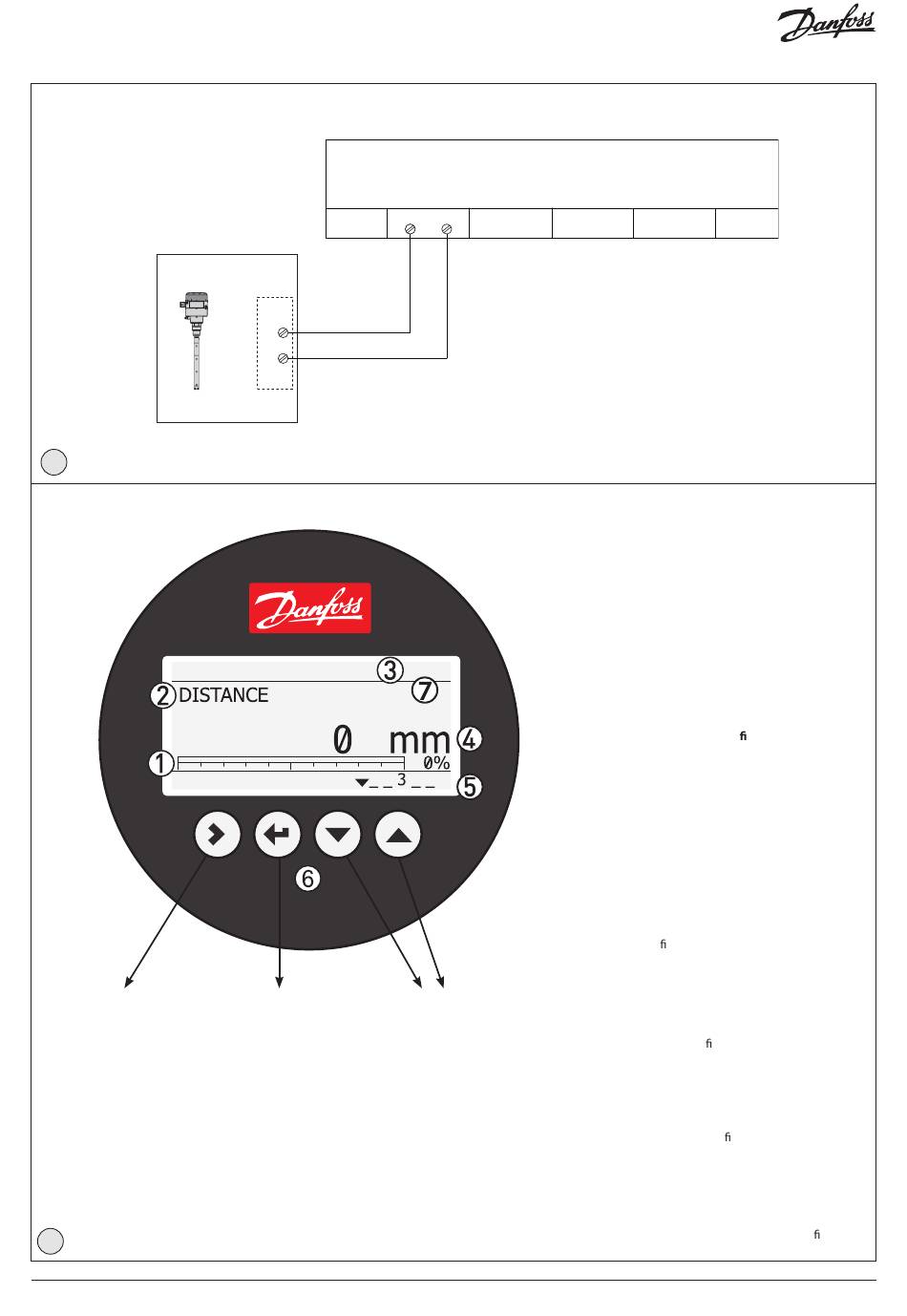

4-20 mA output displayed as bar graph
and in percentage [%]
Measurement name (in this example,
DISTANCE)
Device tag name
Measurement reading and unit
Device status (markers)
Marker 1, 2 and 3 (Error)
Hardware problem; the Signal Converter
hardware is defective. Contact Danfoss.
Marker 4 and 5 (Noti cation)
Depending on the level, the marker is ON or
OFF. Used for Danfoss service information
only.
Keypad buttons
Flashing star indicating unit in operation.
If the display is set to "DISTANCE" the displayed
value will be the distance from the Reference
point to the top surface of the liquid refrige-
rant (see g. 2).
If the display is set to "LEVEL" then the value
displayed will be:
PROBE LENGTH (entered in QUICK SETUP)
– DISTANCE (see g. 2)
Will represent the level of refrigerant,in
percent, scaled (entered in QUICK SETUP)
according to: SCALE 4 mA (0%), SCALE
20 mA (100%) (see g. 2).
Will represent the level of refrigerant,
in 4-20 milliampere, scaled (entered in
QUICK SETUP) according to: SCALE 4 mA
(4 mA), SCALE 20 mA (20 mA) (see g. 2).
DKRCI.PI.SC0.H1.02 | 520H10544 | 3
