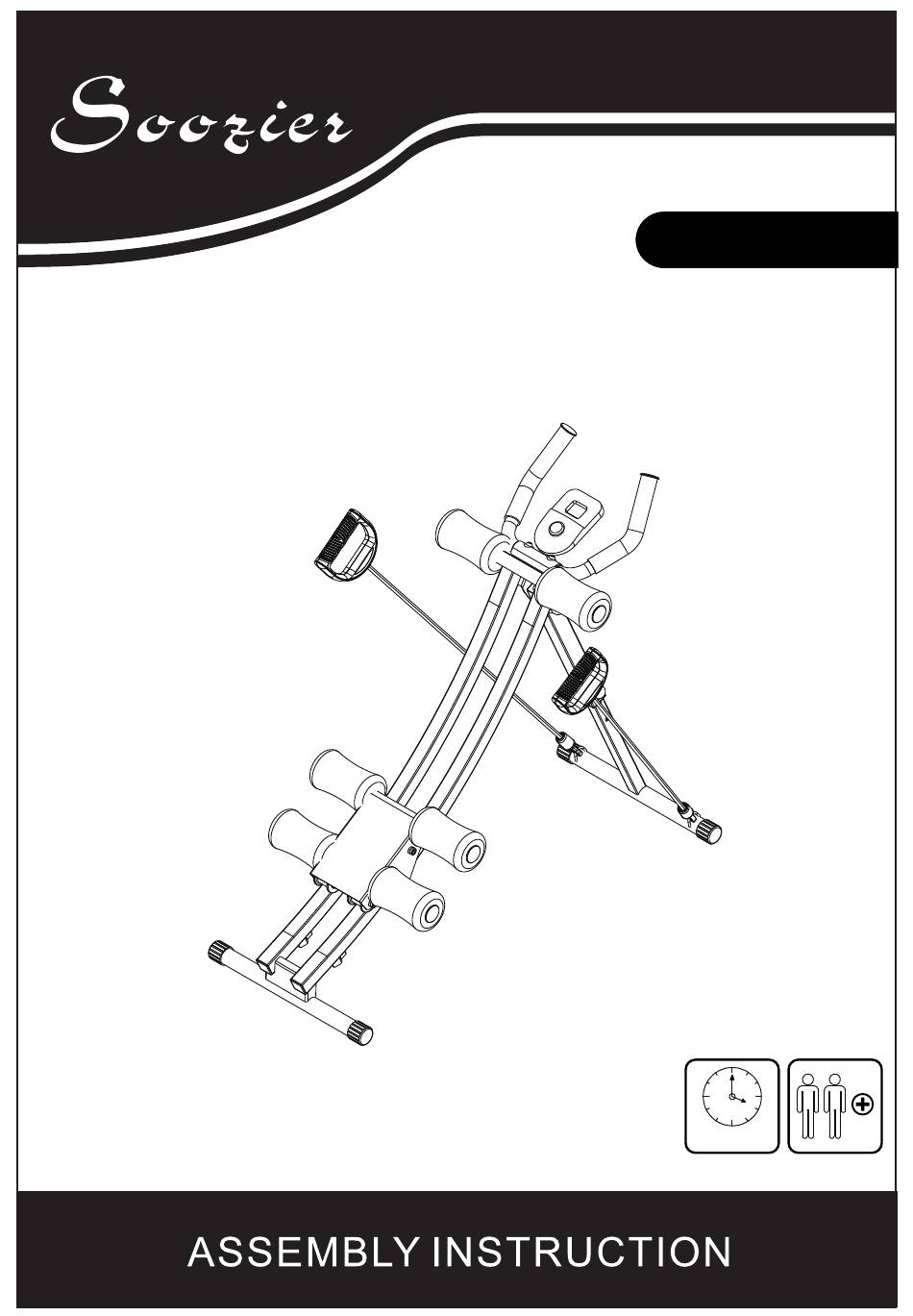

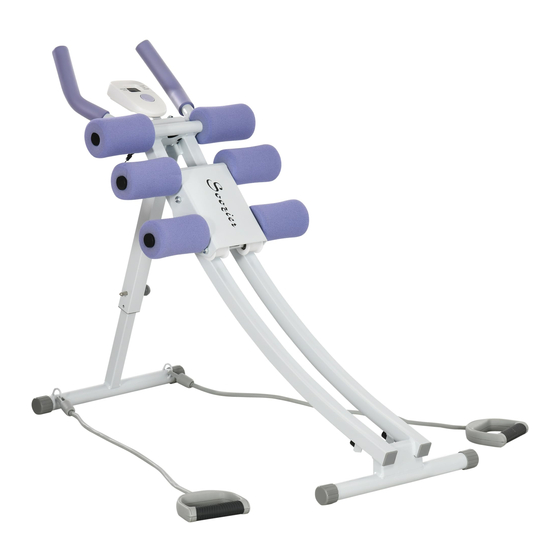

- Page 1 IN220901382V01_US A91-262V00 Foldable Abdominal Trainer Manual *The maximum user weight is 150 Kg. 30MIN IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
- Page 8 PRODUCT ACCESSORIES DRAWING Armrest set Electronic watch group Ropes Slider set Front foot tube set Pulley seat assembly...
-
Page 9: List Of Main Parts
LIST OF MAIN PARTS 1. Main frame set x1 2. Electronic watch x1 4.Foam x6 3. Armrest set x1 5. Pipe plug x6 10. Ropes x2 SCREW, TOOL LIST 8. M8X35 hexagon socket 6. Ball plug x2 7. Arc washer x2 head cap screw x2 9.#5 L-Wrench x1 PARTS LIST... - Page 10 ASSEMBLY INSTRUCTIONS: Assembly Step (1): Install the main frame. 1. Take the main frame and armrest group out of the carton, and pass (8-semi-round head socket head cap bolt) and (7-arc washer) through (3-armrest group) And put it into (1-main frame group), use (9-cross L-shaped wrench) to fix and lock, and finally insert (6-ball plug) (1-main frame group).
- Page 11 Assembly Step (2): Assemble electronic watch, foam, tube plug. 1. Connect the signal cable connector of (2-electronic meter) with the signal cable connector of (1-main rack group), and then insert (2-electronic meter) into (1-Main frame) Inside the electronic watch fixing piece of the main frame. 2.
- Page 12 Assembly Step (3): Assemble the ropes 1. Take out the pull rope (10), align the corresponding holes to install, the completed result is shown in the figure, so far the whole machine is assembled. -12-...
