evertz EQX Unpacking Instructions

Hide thumbs Also See for EQX:

EQX PACKAGING MATERIALS

The instructions provided in this document outline the EQX unpacking procedure. Please review the

following instructions before opening and moving the shipping container. Once the EQX is unpacked,

please refer to the EQX user manual for instructions on installing the router.

The Evertz EQX packaging consists of the following components:

Wooden shipping container (consists of two wooden side panels, one front panel, one back panel

and a wooden top cap)

Pallet

Foam packaging materials

Protective Bags

Unpacking Instructions and EQX User manual

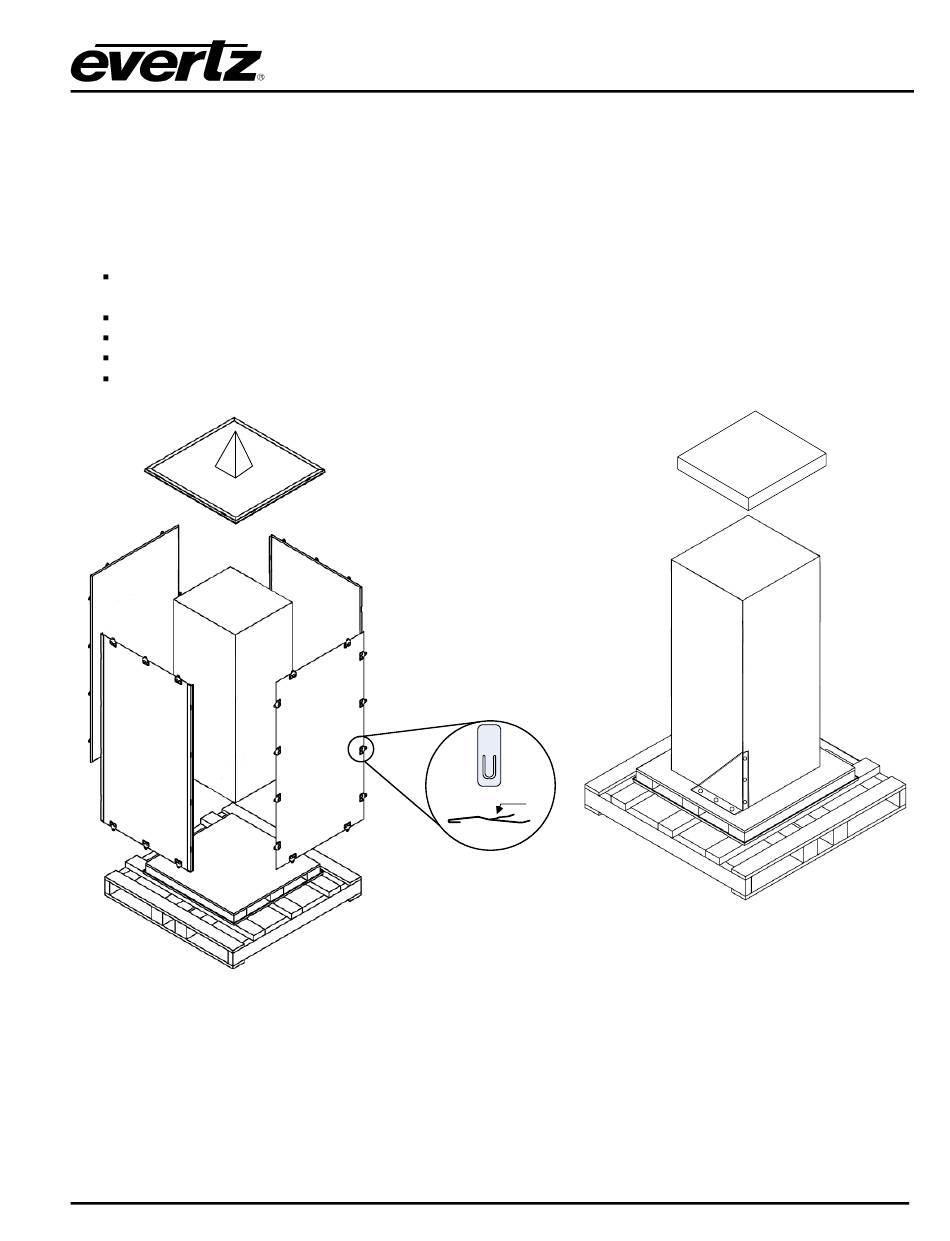

Figure 1-1: EQX Shipping Container

Front View of Clip

Tab

Side View of Clip

Figure 1-2: EQX with Shipping Panels

Revision 1.0

EQX Unpacking Instructions

Foam End

Removed

EQX - 1

Table of Contents

Do you have a question about the EQX and is the answer not in the manual?

Page 1 EQX Unpacking Instructions EQX PACKAGING MATERIALS The instructions provided in this document outline the EQX unpacking procedure. Please review the following instructions before opening and moving the shipping container. Once the EQX is unpacked, please refer to the EQX user manual for instructions on installing the router.
Page 2 The wooden side panels, wooden cap and pallet may have sharp metal edges. There is a cone attached to the top of the EQX shipping container to prevent people from stacking objects on the container. If the cone has been removed or crushed, this may indicate that objects were stacked on the unit.
Page 3 7/16” size wrench to remove the side bolts, and the 9/16” size wrench to remove the bottom bolts. 13. Once the bolts are removed, the EQX can be moved from the pallet and installed in the desired location. Please refer to the EQX user manual for installation and operation instructions.
