Page 1 2022CC2.30EX / BKVC4010 (EN) INSTRUCTION MANUAL IO-CBI-0696 / 8072404 (03.2023 / v5)
Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 9 Installation ......................... 12 Operation ........................... 17 Baking in the oven – practical hints ................23 Test dishes..........................25 Cleaning and maintenance ....................27 Technical data ........................32...
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
Page 5 SAFETY INSTRUCTIONS Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Warning: Ensure that the appliance is switched off before re- placing the lamp to avoid the possibillity of electric shock.
Page 6 SAFETY INSTRUCTIONS ● Always keep children away from the cooker. While in operation direct contact with the cooker may cause burns! ● Ensure that small items of household equipment, including connection leads, do not touch the hot oven or the hob as the insulation material of this equipment is usually not resistant to high temperatures.
Page 7 HOW TO SAVE ENERGY ●Make use of residual heat from the Using energy in a respon- oven. sible way not only saves money but also helps the If the cooking time is greater than 40 minutes environment. So let’s save switch off the oven 10 minutes before the energy! And this is how you end time.
Page 8 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...
Page 9: Description Of The Appliance

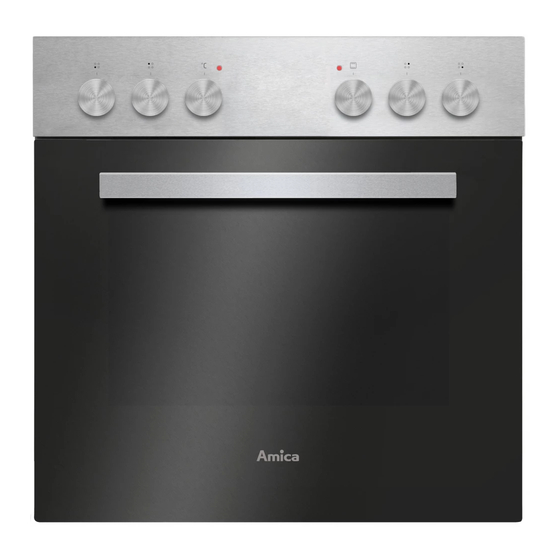

DESCRIPTION OF THE APPLIANCE 3, 4 5, 6 1 Temperature control knob 2 Oven function selection knob 3, 4, 5, 6 Heating zone control knobs 7 Temperatureregulatorsignal light L 8 Cooker operation signal light R 9 Oven door handle 10 Ceramic hob...
Page 10 DESCRIPTION OF THE APPLIANCE Ceramic hob Ø 18 cm Ø 14,5 cm Ø 21 cm Ø 14,5 cm...
Page 11 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate Baking tray* (drying rack) Roasting tray* *optional...
Page 12: Installation
INSTALLATION Making the worktop recess ● The kitchen area should be dry and aired and equipped with efficient ventillation. When installing the cooker, easy access to all control elements should be ensured. This is a Y–type design built–in cooker, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall.
Page 13 INSTALLATION Assembly of the gasket Depending on the model, the seal is already installed at the factory (fig.1) If the seal has not been fitted at the factory, proceed as follows: Before installing the hob in the cut-out worktop, the gasket is to be attached to the back of the hob (pic.
Page 14 INSTALLATION Assembly of the oven: ● Make an opening with the dimensions given in the diagram for the oven to be fitted.(Fig.A) ● Make sure the mains plug is disconnected and then connect the oven to the mains supply. ● Partially insert the oven into the prepared opening and connect the oven to the hob.
Page 15 INSTALLATION Electrical connection Warning! All electrical work should be carried out by a suitably qualified and authorised electrician. No alterations or wilful changes in the electric- ity supply should be carried out. Fitting guidelines The cooker is manufactured to work with three–phase alternating current (400V 3N~50Hz).
Page 16 INSTALLATION CONNECTION DIAGRAM Caution! Voltage of heating elements 230V Caution! In the event of any connection the safety Recommen- wire must be connected to the PE terminal type of connection lead For 230 V earthed one–phase connection, bridges connect 1–2–3 H05VV-F3G4 terminals and 4–5 terminals, safety wire to...
Page 17: Operation
OPERATION Before using the oven for the first time  Remove packaging, clean the interior of the oven and the hob.  Take out and wash the oven fittings with warm water and a little washing–up liq- uid.  Switch on the ventillation in the room or open a window.
Page 18 OPERATION Controlling the heating zones of the ceramic hob. Choice of cookware Choose a pan with a diameter that is at least as large as the heating zone. For roasting tins there is a special widened heating zone of 140x250. Do not use pans with a concave or convex base.
Page 19 OPERATION Zone heating indicator If the temperature of a heating zone exceeds 50°C this is signalled by an indicator which lights up for that zone. When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.
Page 20 OPERATION Oven functions and operation. Oven is off Oven with automatic air circula- Independent oven lighting tion (including a fan and top and Set the knob in this position to light up bottom heaters) the oven interior. The oven can be warmed up using the bottom and top heaters, as well as the grill.
Page 21 OPERATION Bottom heater on Switching on the oven is indicated by two When the knob is set to this position signal lights, R, L, turning on. The R light the oven is heated using only the turned on means the oven is working. If the L bottom heater.
Page 22 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to: ● Set the oven knob to the position marked grill ●...
Page 23: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking ● we recommend using the baking trays which were provided with your cooker; ● it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
Page 24 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including a fan and top and bottom heaters) Type of Type Temperature Level Time dish of heating (min.) 160 - 200 2 - 3 30 - 50 25 - 35 160 - 170 25 - 40 155 - 170...
Page 25: Test Dishes
TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 160 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Baking tray 155 - 170 25 - 40 Small cakes 2 + 4...
Page 26 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) Wire rack 250 (220*) 1,5 - 2,5 White bread toast Wire rack 250 (220*) 2 - 3 Wire rack + 4 - wire rack roasting tray 1st side 10 - 15 Beef burgers...
Page 27: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Caution! The sharp blade should always nance of your cooker you can have a sig- be protected by adjusting the cover (just nificant influence on the continuing fault-free push it with your thumb). Injuries are pos- operation of your appliance.
Page 28 CLEANING AND MAINTENANCE Oven Replacing the halogen bulb in the oven Before replacing the halogen bulb, make ● The oven should be cleaned after every sure the appliance is disconnected from use. When cleaning the oven the lighting the electric mains to avoid a possible should be switched on to enable you to electric shock.
Page 29 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2.
Page 30 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Re- move the inner panel (fig. D,D1). Note! Risk of damage to glass panel mounting. Do not lift the glass panel up but pull it out.
Page 31 OPERATION IN CASE OF EMERGENCY In the event of an emergency, you should: ● switch off all working units of the oven ● disconnect the mains plug ● call the service centre ● some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the service centre check the following points that are presented in the table.
Page 32: Technical Data
TECHNICAL DATA Voltage rating 230/400V~50 Hz Power rating max. 9,1 kW Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm Basic Information: The product meets the requirements of European standards EN 60335- 1; EN60335-2-6. The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1.
