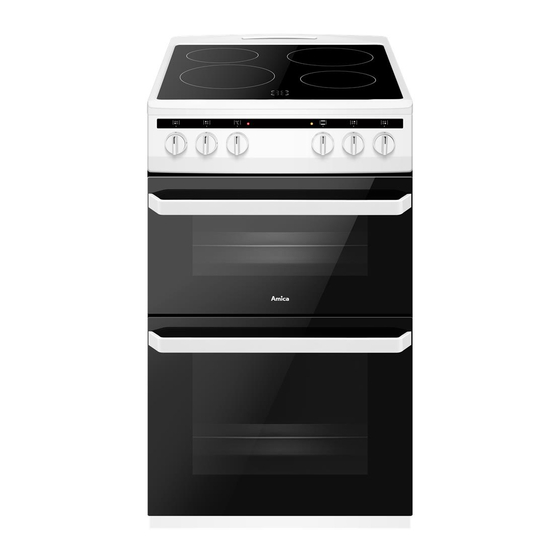

Summary of Contents for Amica AFC5100WH/2
- Page 1 TYPE 508DCE2.10HmOW 508DCE2.10HmOC MODEL AFC5100WH/2 AFC5100SI/2 INSTRUCTION MANUAL ELECTRIC COOKER TWIN CAVITY IO-CFS-1917 / 8510287 (08.2020 V1)
- Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 9 Installation ..........................11 Operation ........................... 13 Baking in the oven – practical hints ................18 Cleaning and maintenance ....................20 Technical data ........................25 Product Fiche ........................26... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... - Page 5 SAFETY INSTRUCTIONS Warning: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock.
- Page 6 SAFETY INSTRUCTIONS Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person. In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
- Page 7 HOW TO SAVE ENERGY Using energy in a respon- Make use of residual heat from the sible way not only saves oven. money but also helps the If the cooking time is greater than 40 environment. So let’s save minutes switch off the oven 10 minutes energy! And this is how you before the end time.
- Page 8 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
-
Page 9: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 3, 4 5, 6 1 Temperature control knob - Main oven 2 Temperature control knob - Top cavity 3, 4, 5, 6 Heating zone control knobs 7 Red thermostat light - Main oven 8 Red thermostat light - Top cavity 9 Yellow operation light 10 Top cavity door 11 Main oven door... - Page 10 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Baking tray Wire Shelf Grill Deflector *All images are for indication only; please refer to your individual unit for actual item.
-
Page 11: Installation
INSTALLATION Installing the cooker Anti-tilt protection CAUTION! You must install the anti-tilt pro- tection. If you do not install it, the appliance The kitchen should be dry and airy and can tilt. have effective ventilation according to the The appliance must be secured by using existing technical provisions. - Page 12 INSTALLATION Electrical connection Warning: This appliance must be earthed. The appliance must be installed by a com- petent electrician using a double pole control unit of 40 Ampere minimum capacity with 3 mm minimum contact separation at all poles. We recommend that the appliance is con- nected by a qualified electrician who is mem- ber of the N.C.E.I.C.
-
Page 13: Operation
OPERATION Before first use Remove packaging, clean the interior of the oven and the hob. Take out and wash the oven fittings with warm water and a little washing–up liquid. Switch on the ventillation in the room or open a window. - Page 14 OPERATION Controlling the heating zones of the ceramic hob. Choice of cookware Choose a pan with a diameter that is at least as large as the heating zone. Do not use pans with a concave or convex base. Always remember to put a proper cover on the pan. We recommend the use of pans with thick, even bases.
- Page 15 OPERATION Zone heating indicator If the temperature of a heating zone exceeds 50°C this is signalled by an indicator which lights up for that zone. When the heating indicator lights up it warns the person using the cooker against touching a hot heating zone.
- Page 16 OPERATION Using top cavity and main oven Important: Always grill with the top cavity door open. Put the Grill Deflector on. Each control knob has a sign above it, with a brightened area denoting the oven it controls. The top cavity control knob has this symbol about it: The main oven control knob has this symbol about it:...
- Page 17 OPERATION Please note: The yellow operation light on the right of the control panel will also illumi- nate when the main oven is in use. Signal lights Yellow operation light Red thermostat light Oven lighting The main oven lamp will be switched on after the temperature has been set by the tempera- ture regulator knob.
-
Page 18: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the accessories which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;... - Page 19 BAKING IN THE OVEN – PRACTICAL HINTS Type of Type Temperature Level Time dish of heating ºC (min.) Muffins 155 - 170 25 - 40 Fish 160 - 180 2 - 3 45 - 60 Beef 160 - 180 120 - 160 Pork 160 - 190 90 - 120...
-
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Caution! The sharp blade should always nance of your cooker you can have a sig- be protected by adjusting the cover (just nificant influence on the continuing fault-free push it with your thumb). Injuries are operation of your appliance. - Page 21 CLEANING AND MAINTENANCE Oven Replacement of the oven light bulb In order to avoid the possibility of an The oven should be cleaned after every electric shock ensure that the appliance use. When cleaning the oven the lighting is switched off before replacing the bulb. should be switched on to enable you to see the surfaces better.
- Page 22 CLEANING AND MAINTENANCE Removing the Top Cavity Door Removing the inner panel 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the grill (fig. B). compartment chamber for cleaning, it is pos- 2.
- Page 23 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat (in the lower section of the door). Re- move the inner panel (fig. D, D1). 4. Clean the panel with warm water with some cleaning agent added. Carry out the same in reverse order to reassemble the inner glass panel.
- Page 24 OPERATION IN CASE OF EMERGENCY Technical assistance In case your oven requires technical assis- tance and/or spare parts, contact the dealer or the authorised technical assistance centre nearest to you. In this case also it is necessary to state all the appliance data on the rating plate, such as: model, serial number, etc, rating plate placed on the back of the oven and on the last page...
-
Page 25: Technical Data
TECHNICAL DATA Model 508DCE2.10HmOW / AFC5100WH/2 508DCE2.10HmOC / AFC5100SI/2 Rated Voltage 230V~ Rated Frequency 50 Hz Power 9800 W Ceramic hob 5800 W Grill 2000 W Main oven 2000 W Ring element 2000 W External Dimensions (W x D x H) 500(W) x 600(D) x 900(H) mm The product meets the requirements of European standards EN 60335- 1;... -
Page 26: Product Fiche
The information in the product data sheet is given in accordance with the Commission delegated Regulation (EU) No 65/2014 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of household ovens and range hoods Supplier name Amica S.A. AFC5100WH/2 AFC5100SI/2 Model identifier 508DCE2.10HmOW... - Page 27 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household ovens AFC5100WH/2 AFC5100SI/2 Model identifier 508DCE2.10HmOW 508DCE2.10HmOC...
- Page 28 Product information given in accordance with Commission Regulation (EU) No 66/2014 supplementing Directive of the European Parliament and Council Directive 2009/125/EC with regard to eco -design requirements for household ovens, hobs and range hoods Household electric hobs AFC5100WH/2 AFC5100SI/2 Model identifier 508DCE2.10HmOW 508DCE2.10HmOC...
- Page 32 Produced by Amica S.A. ul.Mickiewicza 52, 64-510 Wronki, Poland tel. +48 67 25 46 100, fax +48 67 25 40 320 www.amica.pl Serviced by The CDA Group Ltd, Harby Road, Langar, Nottingham, NG13 9HY Email: customer.care@cda.eu Tel: 01949 862012, Fax: 01949 862003...
