Vertiv LIEBERT GXT5-6000IRT5UXL Quick Installation Manual

LIEBERT® GXT5™ UPS
5-6KVA I, 230V IN, 230V OUT
GXT5-5000/6000IRT5UXL
Quick Installation Guide

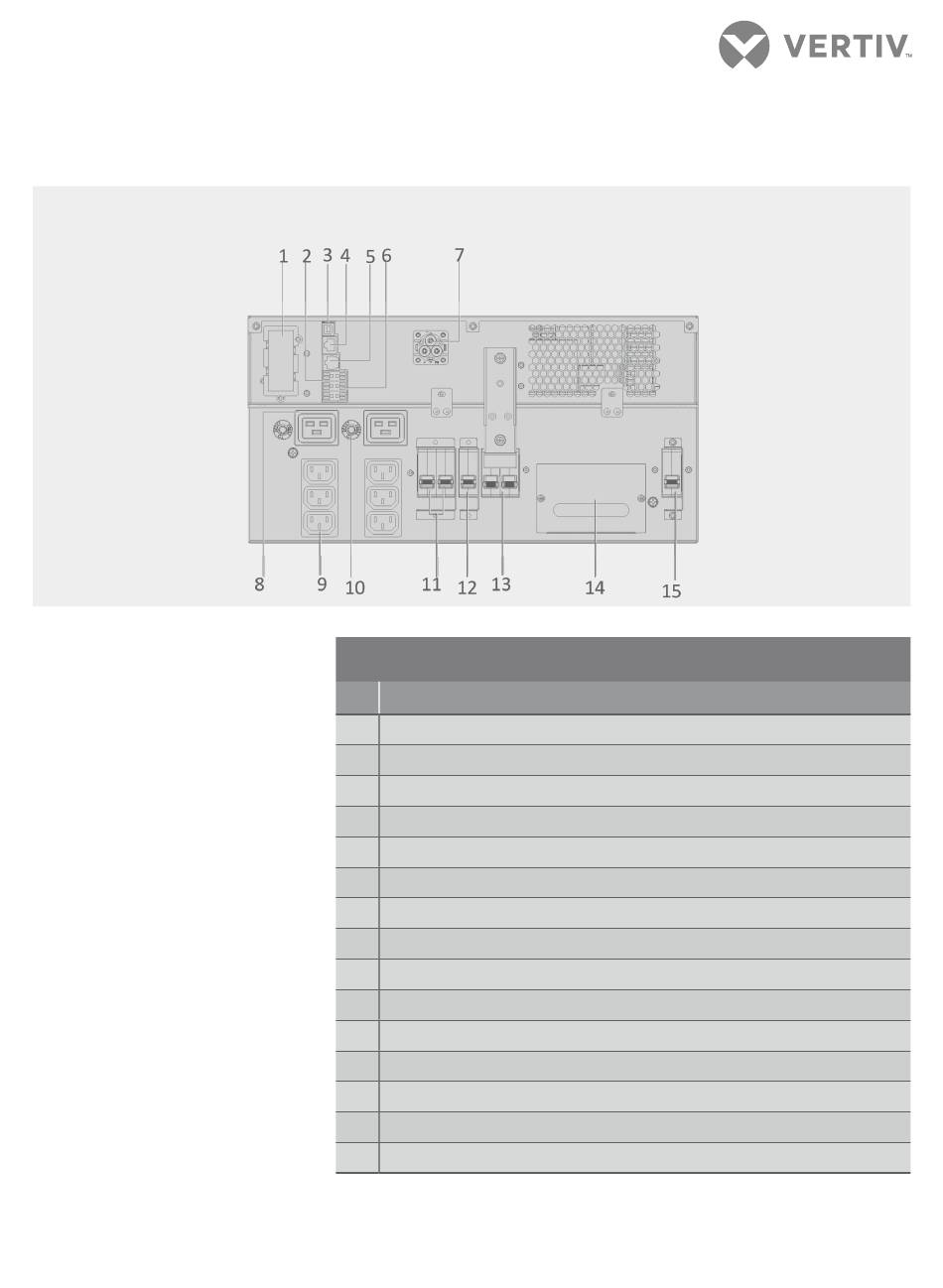

REAR PANEL OF GXT5‑5000/6000IRT5UXL
IMPORTANT: Before installing,
connecting to supply or operating
your Liebert GXT5 UPS, please
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information
refer to the GXT5 User Guide for
your model available at
www.Vertiv.com.

INSTALLATION

1. Inspecting the UPS

Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed and call
our warranty support line for
assistance at 1-800-222-5877
menu option 3, or email at
microups.warranty@vertiv.com.

2. Choosing a location

Install the UPS in a
temperature-controlled
environment that is free of
corrosive and conductive
contaminants. Avoid locations
near heat or water sources and
exposed to direct sunlight.
GXT5 UPS
# Description
1 Liebert® IntelliSlot™ port
2 Terminal-block/Dry-contact communication connectors
3 USB port
4 RS-485 port
5 RS -232 port
6 REPO connector
7 External-battery-cabinet connector
8 C19 output receptacles (x2)
9 Programmable C13 output receptacles (x2)
10 Output circuit breakers (x2)
11 Programmable Output circuit breakers (x2)
12 Output circuit breaker
13 Maintenance-bypass breaker
14 Cable-entry for hard-wire I/O
15 Input circuit breaker
1
