Battery pack:
This symbol indicates the charging status of the RB 1 bat-
tery pack within the WiCo�
The charging symbol appears if the WiCo
- Is connected to a PC via a USB cable
- Is connected to a station via a USB cable
- Is connected to the power supply unit OS 1�0 via a USB
cable
- Is connected to the station via the charger contacts�
Refrigerating
This symbol indicates that the refrigerating function is active�

 indicates active refrigerating process�
Fluid level:
This symbol indicates fluid level�
The red symbol means the fluid is above the maximum
fluid level� Excess fluid should be drained out�
The red symbol means the fluid is below the minimum
fluid level� Please add fluid�

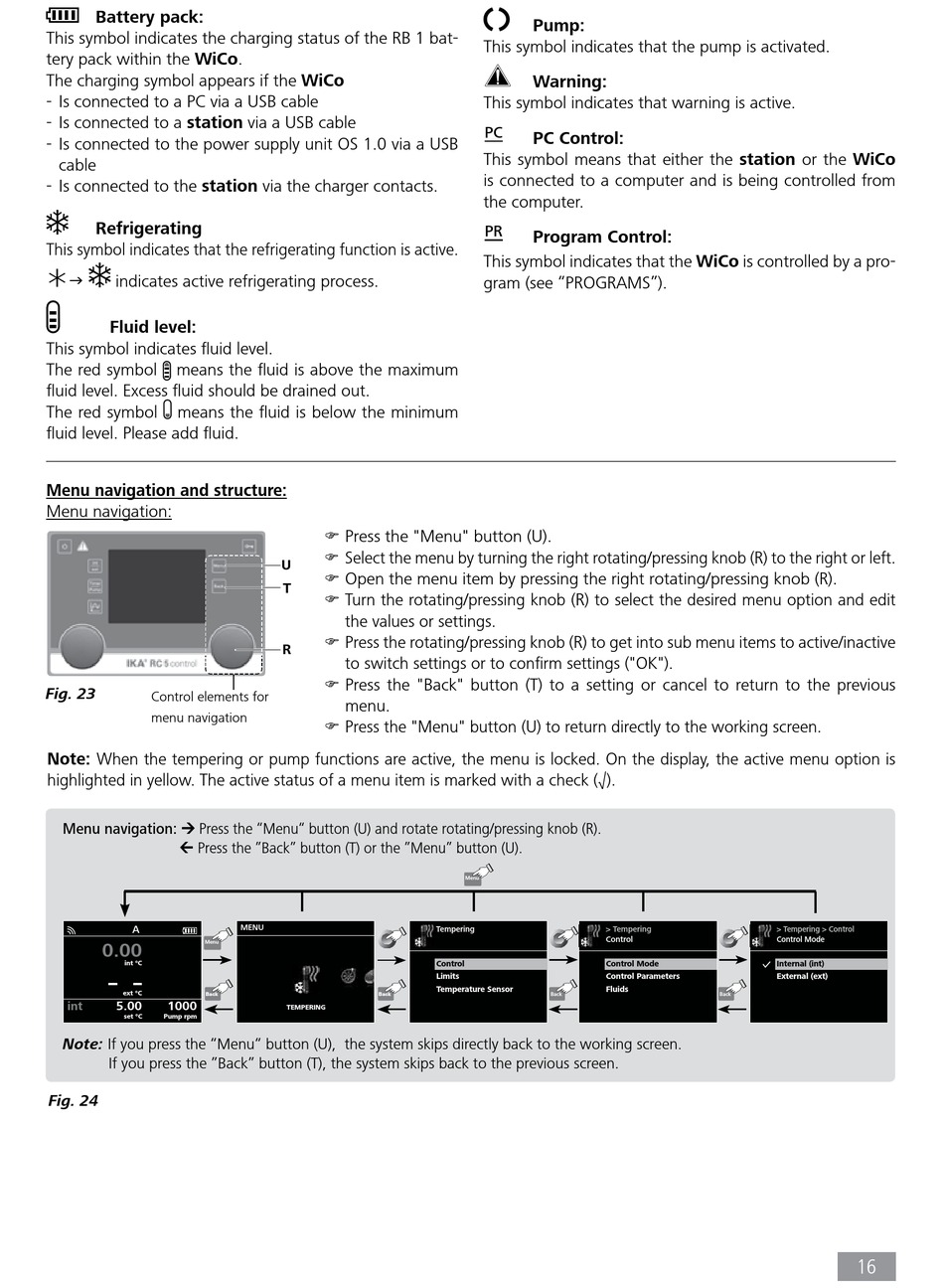

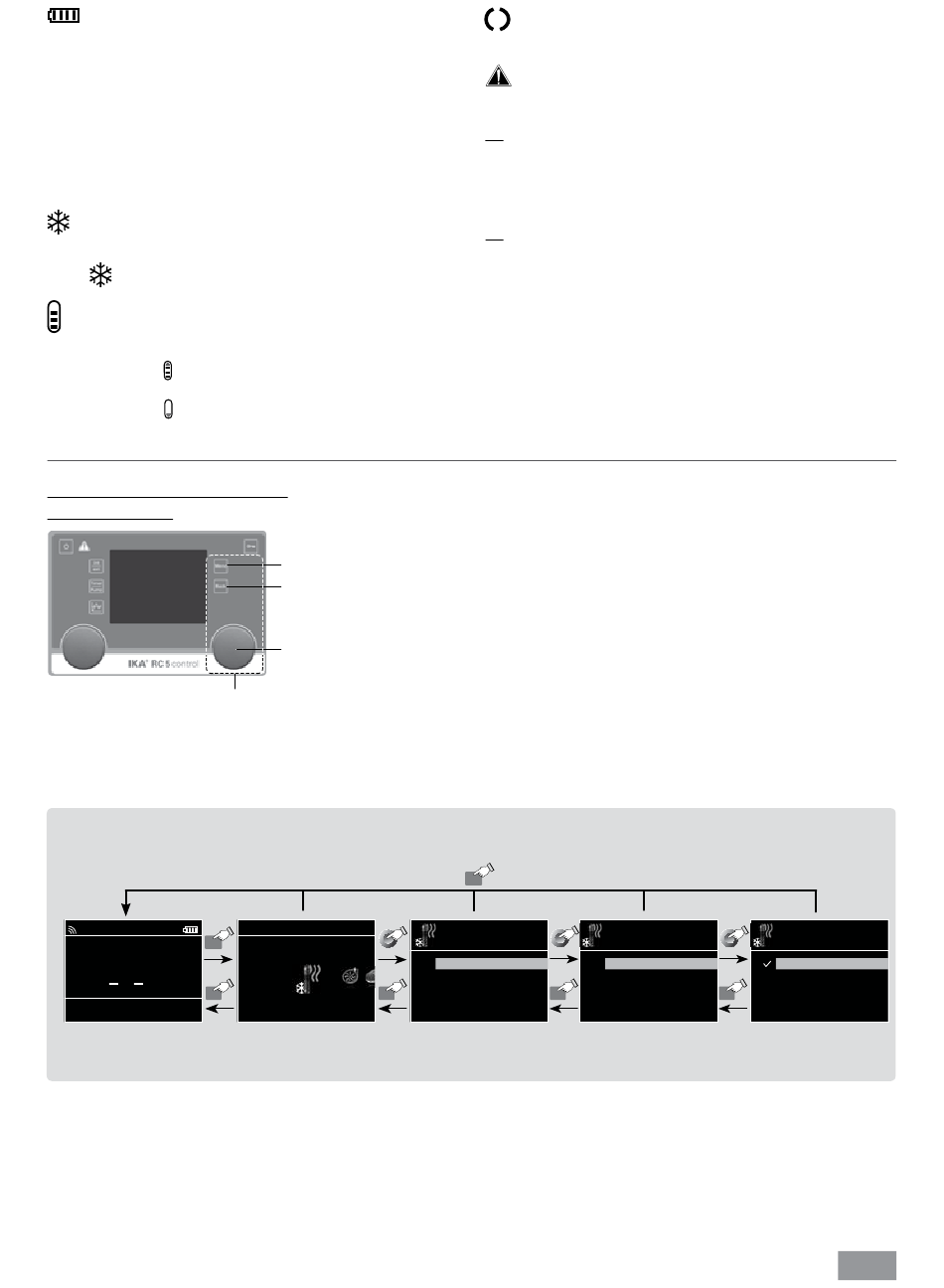

Menu navigation and structure:

Menu navigation:
Fig. 23
Control elements for
menu navigation
Note: When the tempering or pump functions are active, the menu is locked� On the display, the active menu option is
highlighted in yellow� The active status of a menu item is marked with a check (√)�
Menu navigation:  Press the "Menu" button (U) and rotate rotating/pressing knob (R)�
 Press the "Back" button (T) or the "Menu" button (U)�
A
0�00 Menu
int °C
ext °C
Back
int 5�00 1000
set °C Pump rpm
Note: If you press the "Menu" button (U), the system skips directly back to the working screen�
If you press the "Back" button (T), the system skips back to the previous screen�
Fig. 24
Press the "Menu" button (U)�

Select the menu by turning the right rotating/pressing knob (R) to the right or left�

U
Open the menu item by pressing the right rotating/pressing knob (R)�

T
Turn the rotating/pressing knob (R) to select the desired menu option and edit

the values or settings�
Press the rotating/pressing knob (R) to get into sub menu items to active/inactive

R
to switch settings or to confirm settings ("OK")�
Press the "Back" button (T) to a setting or cancel to return to the previous

menu�
Press the "Menu" button (U) to return directly to the working screen�

MENU
Back
TEMPERING
Pump:
This symbol indicates that the pump is activated�
Warning:
This symbol indicates that warning is active�
PC
PC Control:
This symbol means that either the station or the WiCo
is connected to a computer and is being controlled from
the computer�
PR
Program Control:
This symbol indicates that the WiCo is controlled by a pro-
gram (see "PROGRAMS")�
Menu
Tempering > Tempering
Control
Control Control Mode
Limits Control Parameters
Temperature Sensor Fluids
Back
> Tempering > Control
Control Mode
Internal (int)
External (ext)
Back
16
