Note: Before commissioning, make sure that the device has
not been moved for one hour!
Check whether the voltage given on the type plate cor-
responds to the available power voltage�
The socket used must be earthed
(fitted with earth contact)�
If these conditions have been met, the machine is ready
for operation when the power plug is plugged in�
If these conditions are not met, safe operation is not guar-
anteed and the machine could be damaged�
Observe the ambient conditions (temperature, humidity,
etc�) listed under "Technical Data"�

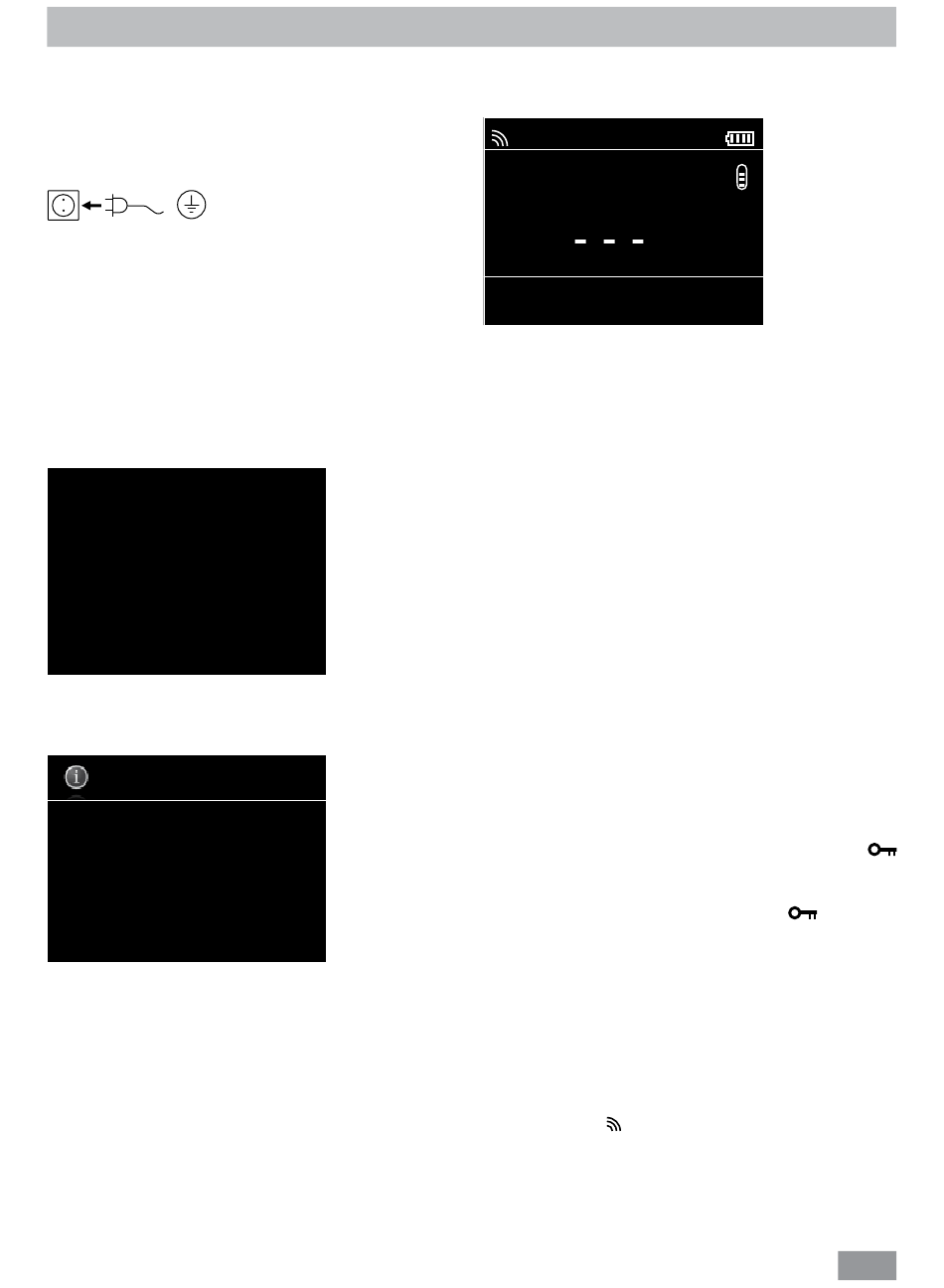

After switching on the power switch of the station, the
screen of the WiCo displays the device designation and
the software version after a beep�
IKA
®
Circulator
RC Control
Version 1.2.008
Fig. 18
After several seconds, screen display the information of
WiCo�
Information
Internal Max:
Internal Min:
External Max:
External Min:
Fluid: H
Fig. 19

Commissioning and operating

40 °C
5 °C
40 °C
5 °C
O (Water)
2
Then the working screen appears and the device is ready
for operation�
A
0�00
int °C
ext °C
int 5�00
set °C
Fig. 20
Change the temperature setting with left knob (P)�
Change the pump speed setting with the right knob (R)�
In standby status, activate the refrigerating function by
pressing the left knob (P)� The pump and fan starts to run
at once� The refrigerating function may delay to start at
maximum 2 minutes�
In working status, press the right knob (R) to stop opera-
tion of the pump� The refrigerating function and the pump
stops�
Note: In standby status, press the right knob (R) to start
the pump function, the refrigerating function will not be
activated�
In working status, press the left knob (P) to stop the refrig-
erating function, the pump keep running�
When the WiCo is switched on without being connected
to the station, the green LED bar (B) and the green Blue-
tooth LED (F) on station lights up�
®
The control elements of the WiCo allow locked by press-
ing the lock button (V) about 2 seconds, so no accidental
changes during operation are possible (lock symbol
appears in the display)�
By pressing lock button (V) about 2 seconds again, the
control elements are released (lock symbol
from the display)�
Note: In an emergency, the device function can be turned
off by pressing the "safe STOP" button (D) at the front of
station� The LED bar (B) changed into red color�
A message appears in the display indicates that the station
was forced off� To restart, press the power switch off and
on again�
If the Bluetooth function of the WiCo is activated, the
®
Bluetooth icon appears on the screen and the user
®
can search the WiCo by pressing the searching button (E)�
Then, a beep is heard�
1000
Pump rpm
disappears
