INSTALLATION QUICK START GUIDE
MULTI SENSOR
INTRODUCTIO

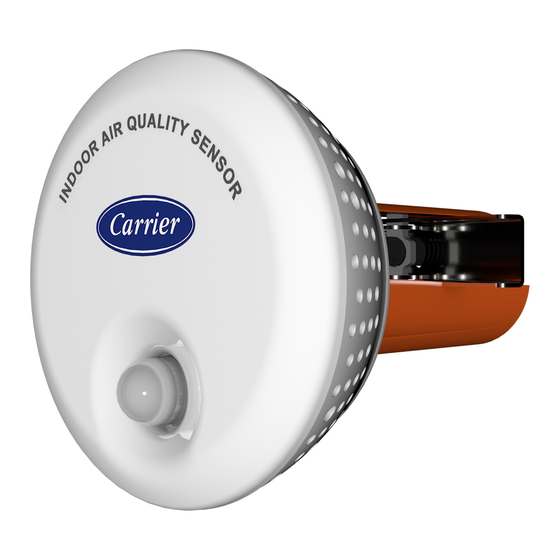

The Multi Sensor possesses a high precision Occupancy, CO2, temperature, and humidity sensor
that is pre-calibrated from the factory. The Multi-Sensor is easily mounted on a wall the grommet
provided. The Multi-Sensor can be daisy-chained using the proprietary 1-wire protocol to
communicate with a master node device such as a SmartNode.
PACKAGE CONTENTS
•
Multi-Sensor
•
Mounting accessories
•
Sensor Bus cable 30ft in length
SPECIFICATIONS
Power
Accuracy
Protection
Communication
Long Term Drift
Mounting
Operating temperature
Storage temperature
(7C-SE-C72X-X)
N
For more information, contact your local Carrier Controls Expert
©2023 Carrier. All Rights Reserved. Cat. No. 11-808-963-01
Scan this QR
code to get a
more detailed
version of the
Installation
3-wire interface powered at 3.3V with a
maximum current limit of 30mA
°
Temperature (typical +/- 1
Humidity (typical +/- 2% RH),
Occupancy @ 8ft height, 100 deg cone angle,
CO2 +/- 75 ppm at 400 ~ 10000 ppm
Protection: IP 20, NEMA Type 1
Pollution grade: 2
Certification: ROHS
Sensor bus for daisy-chained sensor
communication
Humidity < 0.25%RH/yr
Temperature <0.03
0
C/yr
Firmly on the Wall/Ceiling. A torque not
exceeding 0.2Nm is to be used to fix the
device.
Operating Environment: 32°F to 122°F
14°F to 158 °F
Guide
°
F (0.5
C),
