Carrier BACnet BN Series Manual

#N2-BN2110-R2-C – 8/31/23
Overview

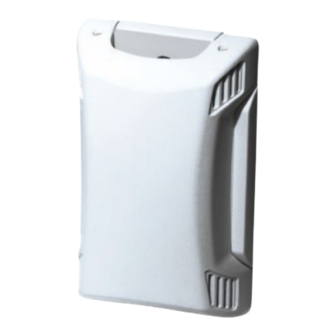

The BN Series Room Temperature and Humidity networked sensors are a cost effective,
single or dual point native BACnet™ or Modbus sensing solution designed to reduce the
need for additional input modules or building management controllers when a limited
number of input points are available. The BN series offers both BACnet™ and Modbus
protocols in one device, providing great flexibility with various systems. The BTL
Certification provides confidence that with third party BACnet™ devices.
Applications: Ambient Air Temperature/Humidity Sensing, Office Buildings, Schools,
Clean Rooms, Pharmaceutical Labs, Hospitals, Data Centers & Retail Stores
The ABN Series BACnet™ sensors are covered by a Two (2) Year Limited Warranty.
Part Numbers
N2-BN2110-R2-C
Specifications
Supply Voltage:
Current Consumption:
Temperature Measurement Range:
Temperature Measurement Accuracy
@ 77ºF (25ºC):
Temperature Calibration Offset:
Temperature Units:
RH Measurement Range:
RH Measurement Accuracy 77ºF (25ºC):
RH Calibration Offset:
Resolution:
Temperature / RH Update Rate:
Communication Protocol:
Sensor Addresses:
Supported Baud Rates:
Parity (Modbus RTU):
Stop Bits (Modbus RTU):
Databits (Modbus RTU):
Maximum Distance:
Catalog No. 11-808-993-01
BACnet™ MS/TP | Modbus RTU Room Temp and Humidity
12 to 36 VDC | 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
25 mA maximum (0.67 VA)
35 to 122ºF (1.5 to 50ºC)
+/- 1.0ºF (+/- 0.5ºC)
+/- 9ºF (+/- 5ºC) (Field Configurable)
ºF (Factory Default), ºC, ºK (Field Configurable)
0 to 100%
+/- 2% from 10 to 90% RH
+/- 10% RH (Field Configurable)
+/- 0.1º | +/- 0.1%
4 seconds
BACnet™ MS/TP or Modbus RTU = Field Selectable; EIA RS-485
0 = Factory Default | 1-127 = Field Selectable
Auto Baud (Factory Default) | 9600, 19200, 38400, 57600, 76800, 115200 (Field
Selectable)
None/Even/Odd = Field Selectable
1 or 2= Field Selectable
8
4000 ft (1219 m)
Specifications subject to change without notice.
Specification
