Carrier HyperSense 7C-HS-C1W-X Installation Manual

INSTALLATION GUIDE
HyperSense

INTRODUCTION

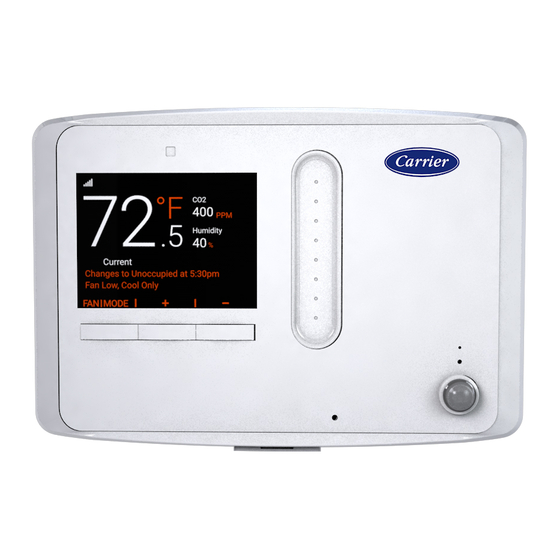

HyperSense is a subset of HyperStat capable of sensing /monitoring and providing a user
interface for the SmartNode it is connected to. Power and communication are achieved
through the 4-wire cable harness; hence, wiring effort is minimal.

PACKAGE CONTENTS

•
HyperSense device
•
Mounting accessories

SPECIFICATIONS

Power
Operating range
Communication
Onboard Sensors
Inputs
Outputs
(7C-HS-C1W-X)
Power Source: 6.5 DC input SmartNode
Temperature 0 to 122°F (-17 to 50°C)
Humidity 20-85% non-condensing.
4-wire interface for RS 485 communication @ 9600 baud and 6.5V
DC, 100mA power source
Temperature range of 32 to 122°F with an accuracy of +/-1°F
Humidity 0 to 100% with an accuracy of 2%
CO2 sensor with a range of 0 – 40,000 ppm, accuracy of +/-30ppm (0 -
5000ppm, 25C).
VOC sensor; Typical Accuracy: 15% of measured value; TVOC: 0 - 60,000
ppb.
Occupancy sensor based on passive infrared (PIR) with detection range of 4m
with 15-degree angle
Light Sensor. Ambient light sensor • <100 LUX resolution • High-accuracy UV
index sensor • Matches erythermal curve
Sound sensor with 40-120dB response for 100Hz to 10KHz
PM2.5, PM10 sensor (optional). Detection range of 0-1000µg/m3 and accuracy
of +/-10µg/m3 (PM2.5, 0-100µg/m3) or +/-25µg/m3 (PM10, 0-
100µg/m3). Maximum long-term mass concentration precision limit drift:
•
0 to 100 µg/m3 ±1.25 µg/m3/year
•
100 to 1000 µg/m3 ±1.25 % mV/year
2 x 10K Type-2 thermistor inputs with 2% accuracy
2 x 0-10V Analog voltage inputs with 2% detection accuracy (2-10V)
Touch slider for temperature control along with 3 mechanical buttons
2.8" 240x320 pixel TFT display
