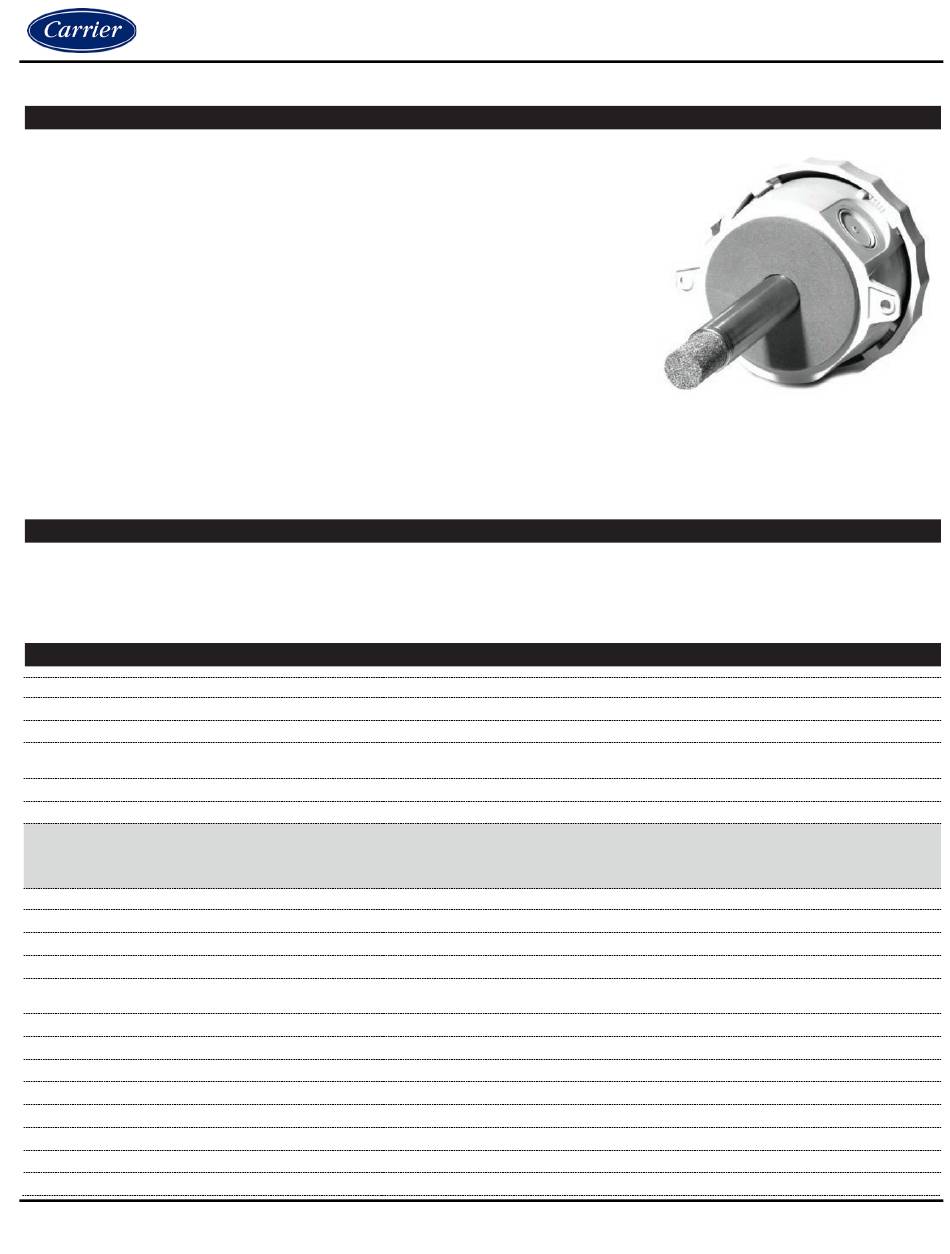

Carrier BN Series Specification

#N2-BN2110-D-4-PB-C – 8/31/23
Overview
The BN Series Temperature and Humidity Duct networked sensors are a cost
effective, single or dual point native BACnet™ or Modbus sensing solution
designed to reduce the need for additional input modules or building management
controllers when a limited number of input points are available. The BN series
offers both BACnet™ and Modbus protocols in one device, providing great
flexibility with various systems. The BTL Certification provides confidence that
these sensors may be used in any new or retrofit installation using a BACnet™
MS/TP controller with third party BACnet™ devices. These sensors incorporate a
conformally coated printed circuit board mounted inside a waterproof enclosure for
long-term reliability. The enclosure features a twist off cover for easy access to the
wiring and internal dip switches for quick setup and installation.
Applications: Monitoring Supply / Discharge / Return Temperature and humidity,
Dehumidification and Humidification Processes, Clean Rooms, Data Centers,
Return Air in Pool Environments, Economizer Control, Air Handlers, Roof Top Units, Process Control Applications
The BN Series BACnet™ sensors are covered by a Two (2) Year Limited Warranty.
Part Numbers
N2-BN2110-D-4-PB-C
Specifications
Supply Voltage:
Current Consumption:
Temperature Measurement Range:
Temperature Measurement Accuracy @ 77ºF
(25ºC):
Temperature Calibration Offset:
Temperature Units:
RH Measurement Range:
RH Measurement Accuracy @ 77ºF
(25ºC): RH Calibration Offset:
Resolution:
Temperature / RH Update Rate:
Communication Protocol:
Sensor Addresses:
Supported Baud Rates:
Parity (Modbus RTU):
Stop Bits (Modbus RTU):
Databits (Modbus RTU):
Maximum Distance:
End of Line Termination Resistance:
Tri-Color Status LED:
Connections | Wire Size:
Transmitter Operating Temperature Range:
Catalog No. 11-808-994-01
Duct RH-Temperature BACnet MSTP Modbus RTU Sensor
12 to 36 VDC / 24 VAC +/- 10%, 50/60 Hz (Reverse Polarity Protected)
25 mA maximum (0.67 VA)
-40 to 176ºF (-40 to 80ºC)
+/- 1.0ºF (+/- 0.5ºC)
+/- 9ºF (+/- 5ºC) (Field Configurable)
ºF (Factory Default), ºC, ºK (Field Configurable)
0 to 100%
+/- 2% from 10 to 90% RH
+/- 10% RH (Field Configurable)
+/- 0.1º | +/- 0.1%
4 seconds
BACnet™ MS/TP or Modbus RTU = Field Selectable; EIA RS-485
0 = Factory Default | 1-127 = Field Selectable
Auto Baud (Factory Default) | 9600, 19200, 38400, 57600, 76800, 115200 (Field
Selectable)
None/Even/Odd = Field Selectable
1 or 2= Field Selectable
8
4000 ft (1219 m)
120 Ohms Termination Resistance (Field Selectable)
Connection Status
Screw Terminal Blocks | 16 AWG (1.31 mm2) to 22 AWG (0.33 mm2)
-40 to 176ºF (-40 to 80ºC)
Specifications subject to change without notice.
