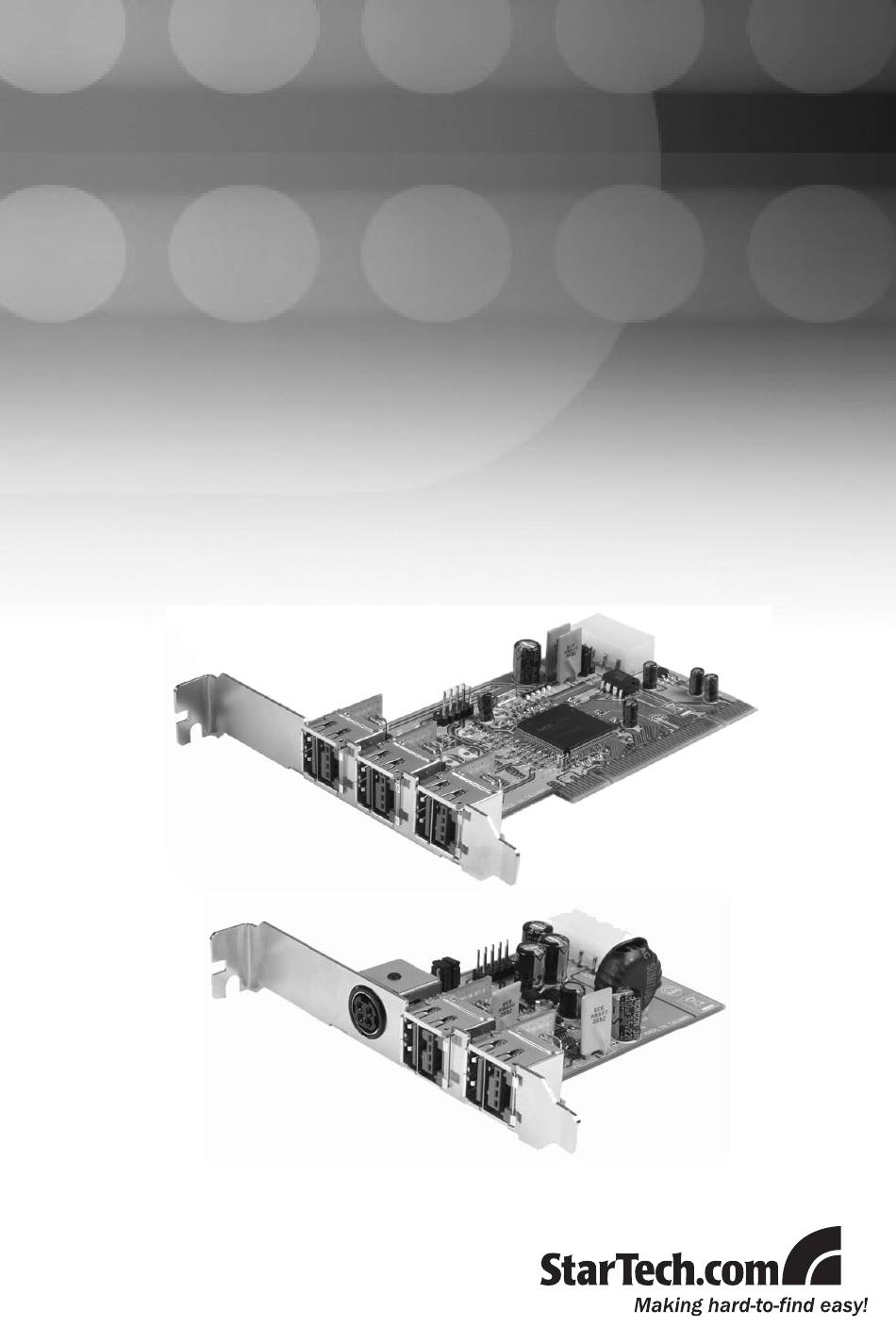

- Page 1 PCI312PUSB/LP & PEX312PUSB/LP PCI/PCIe 12V Powered USB Card PUSBADAP/LP 12V/24V Daughter Card...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-...
-
Page 3: Table Of Contents
Hardware Guide ................2 PCI312PUSB/LP, PEX312PUSB/LP ..........2 Jumper Settings ................2 PUSBADAP/PUSBADAPLP ............3 Hardware Installation ..............4 PCI312PUSB/LP, PEX312PUSB/LP & PUSBADAP/LP ....4 PCI312PUSB/LP or PEX312PUSB/LP Only .......5 PUSBADAP/PUSBADAPLP Only ..........6 Software Installation ..............7 Specifications ................8 Technical Support ................. 9... -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com Powered USB 2.0 Adapter Card (available in both PCI and PCI Express formats as well as Standard and Low Profile). Now, adding Powered USB capability to a computer has never been easier! Fully compatible with USB1.1 OHCI and USB2.0 ECHI specifications, the... -
Page 5: Hardware Guide
Instruction Manual Hardware Guide PCI312PUSB/LP, PEX312PUSB/LP USB Ports 4, 5 (for Expansion) JP2: +12V Selector J5: AUX Power J1~J3: External JP1: Powered USB Ports (x3) +5V Selector Jumper Settings JP1 (+5V Selector) Settings Default: The USB2.0 Bus Power is supplied by the motherboard PCI slot (DC+5V supplied from PCB) The USB2.0 Bus Power is supplied by the AUX... -
Page 6: Pusbadap/Pusbadaplp
Instruction Manual Jumper Settings - Cont’d JP2 (+12V Selector) Settings Default: The 12V power source of the Powered USB connectors are supplied by the PCI slot into which the card is installed The 12V power source of the Powered USB con- nectors are supplied by the AUX power connector (J5). -
Page 7: Hardware Installation
The power source of the 24V-keyed Powered USB connector is supplied from the external Power DIN input connector, in this case, a 24V AC adapter will be required. Please see http://www.startech.com for more information. Hardware Installation PCI312PUSB/LP, PEX312PUSB/LP & PUSBADAP/LP... -
Page 8: Pci312Pusb/Lp Or Pex312Pusb/Lp Only
If JP2 has been set to EXT, the PUSBADAP will draw power through the External Input Power DIN Connector, and will require an external power source (see http://www.startech.com for accessories). Once both cards have been properly positioned, and the necessary link has been made between them, close the computer case and power on the computer. -
Page 9: Pusbadap/Pusbadaplp Only
Instruction Manual Locate an empty PCI/PCI Express slot and remove the metal bracket covering the accompanying empty port/socket. Position the card above the open PCI/PCI Express slot, ensuring that the card is properly aligned with the slot. Insert the card firmly into the slot, distributing force evenly across the length of the board, then fasten the metal bracket to the computer case (using the screw removed in step #2, if necessary). -
Page 10: Software Installation
For Windows 98SE or Windows ME installations, however, driver instal- lation is required. To install the drivers necessary for PCI312PUSB/LP or PEX312PUSB/LP to function properly: With the host computer powered on, insert the Driver CD that accompanied your purchase of PCI312PUSB/PCI312PUSBLP into the CD/DVD-ROM drive. - Page 11 Instruction Manual...
-
Page 12: Specifications
Instruction Manual Specifications PCI312PUSB PEX312PUSB PUSBADAP 3 x 12V Powered USB male 1x 12v Power USB Connector connectors 1x 24v Power USB Connector 1 x LP4 Connector 1x 4 pin Power Din Connector Connectors 1x Internal USB Connector 1 x Internal USB (9 pin) Header 1x Jumper Connector Connector for expansion 1x LP4 Connector... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 14 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
