Models: 6K/8K, 6KL/8KL, 6KX, 8KX, CAL36, CAL42, CAL36X, CAL42X, MER36, MER42,
MER36P, MER42P, 6KMOD, 8KMOD, MER36MN, MER42MN
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Kit Contents
Verify and remove contents from packaging before
beginning installation.
(1) Damper
(1) Zip Tie, 14 inch
(3) Screws
Introduction
This adapter kit is for use with the HEAT-ZONE
Kit and is required when the optional Heat-Zone-Gas is
installed on the 6/8 Series, CAL/CALX Series and MER/
MERP Series. This kit is not required when the HEAT-
ZONE-GAS Kit is installed with Passive Heat.
Heat-Zone
-Gas Adapter Installation Instructions
®
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
®
Hearth & Home Technologies • HZMR-ADP Instructions • 2581-972 • 7/22
HZMR-ADP
Installation

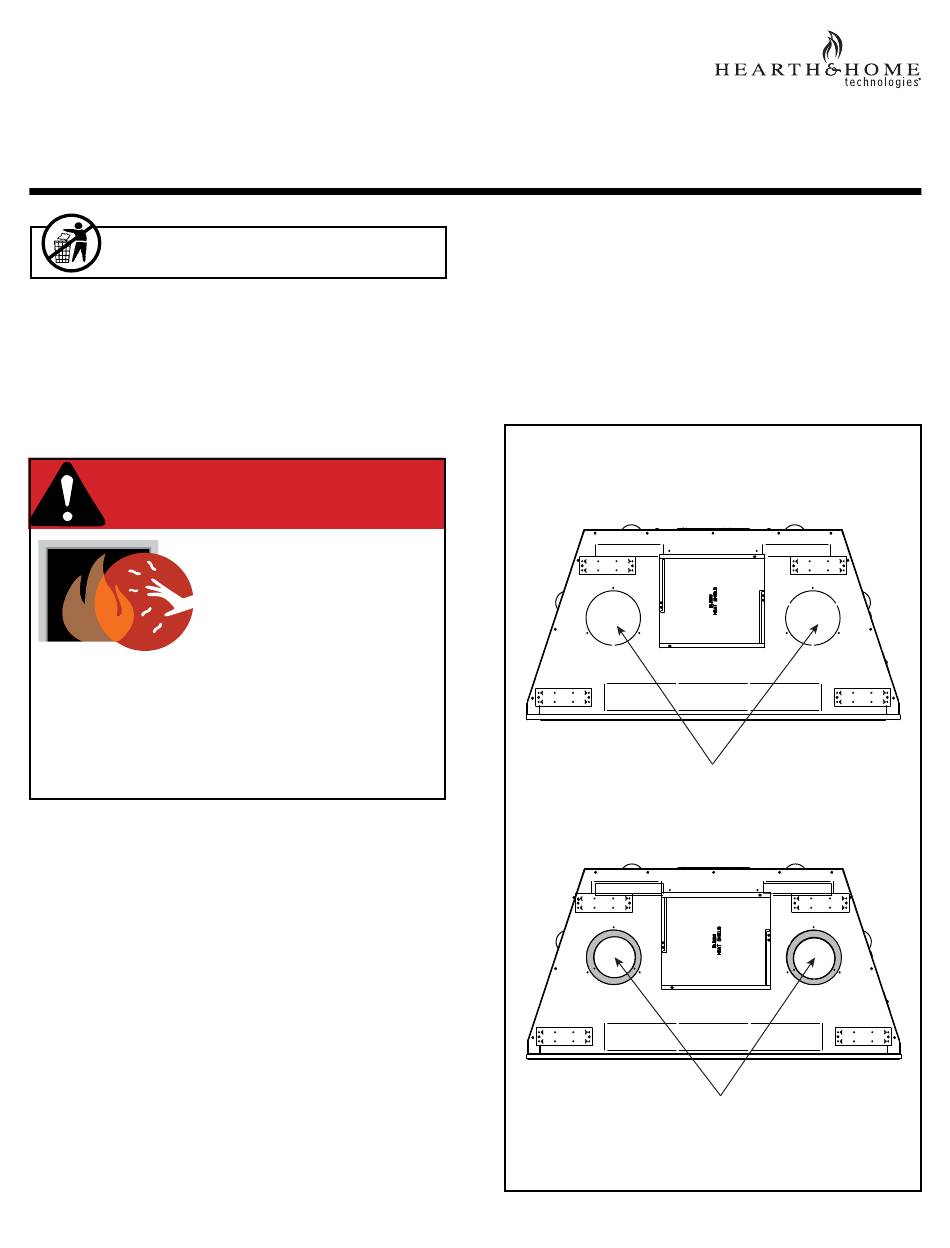

1. Locate the HEAT-ZONE-GAS knockouts on the top of
the appliance as shown in Figure 1. Remove only one
of the outer knockouts from the appliance with a tin
snips or screwdriver. Remove inner knockout from the
same side. See Figure 1.
-GAS
Figure 1 Top Knockout Locations
REMOVE
KNOCKOUTS
OUTER KNOCKOUTS
REMOVE ONLY 1 PER
HEAT MANAGEMENT KIT
INNER KNOCKOUTS
REMOVE ONLY 1 PER
HEAT MANAGEMENT KIT
1
