Hearth and Home Technologies Heat-Zone HZLIN-ADP Installation Instructions

Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.

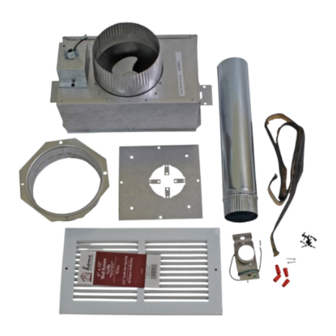

Kit Contents

Verify and remove contents from packaging before
beginning installation.
(1) Collar
(1) Damper
(1) Zip Tie, 14 inch
(4) Screws

Introduction

This adapter kit is for use with the Heat-Zone
and is necessary when the optional Heat-Zone
installed on the MEZZO-C, CRAVE-C,or ECHELON-C
models.
Models: MEZZO-C, CRAVE-C, ECHELON-C
Heat-Zone -Gas Adapter Installation Instructions
®
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
-Gas Kit
®
-Gas
®
Hearth & Home Technologies • HZLIN-ADP Instructions • 2600-972 • 5/19
HZLIN-ADP

Installation

1. Locate the Heat-Zone
the appliance as shown in Figure 1. Remove one of
the outer knockouts from the appliance with a tin snips
or screwdriver. Inner knockouts cannot be used for
Heat-Zone
2. Remove the insulation from the hole of the knockout
that was removed. See Figure 2.
HEAT-ZONE
REMOVE ONE OUTER KNOCKOUT ONLY
DO NOT REMOVE INNER KNOCKOUTS

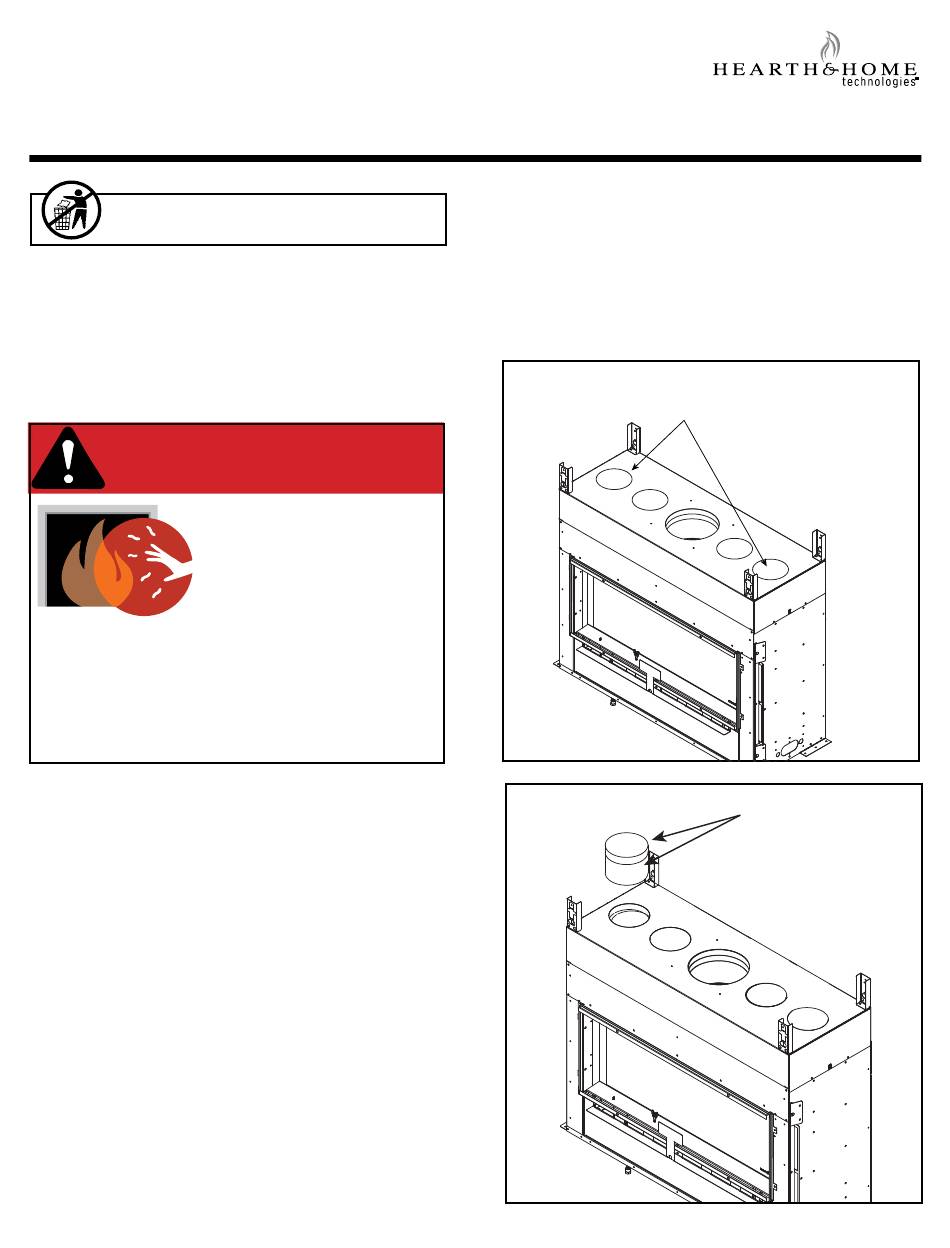

Figure 1 Top Knockout Locations
is
®
Figure 2 Remove Insulation
-Gas knockouts on the top of
®
-Gas installation.
®
-GAS KNOCKOUTS
®
REMOVE INSULATION PLUGS
1
