DV425 BURNER AND PILOT UPGRADE
TOOLS NEEDED: Phillips head screwdriver; 7/16 in.
wrench; 3/8 in. wrench; wire cutters; silicone.
Log Assembly
Log Assembly
Glass Assembly

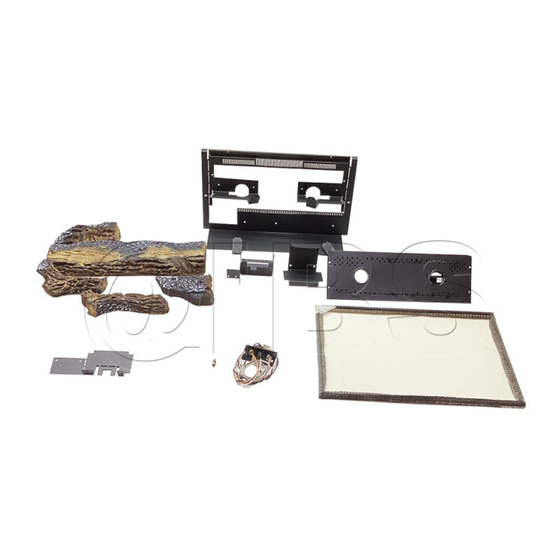

KIT CONTENTS: Log Assembly; burner assembly; glass
assembly; pilot assembly; pilot bracket; bulkhead retainer;
left burner bracket; and fasteners.

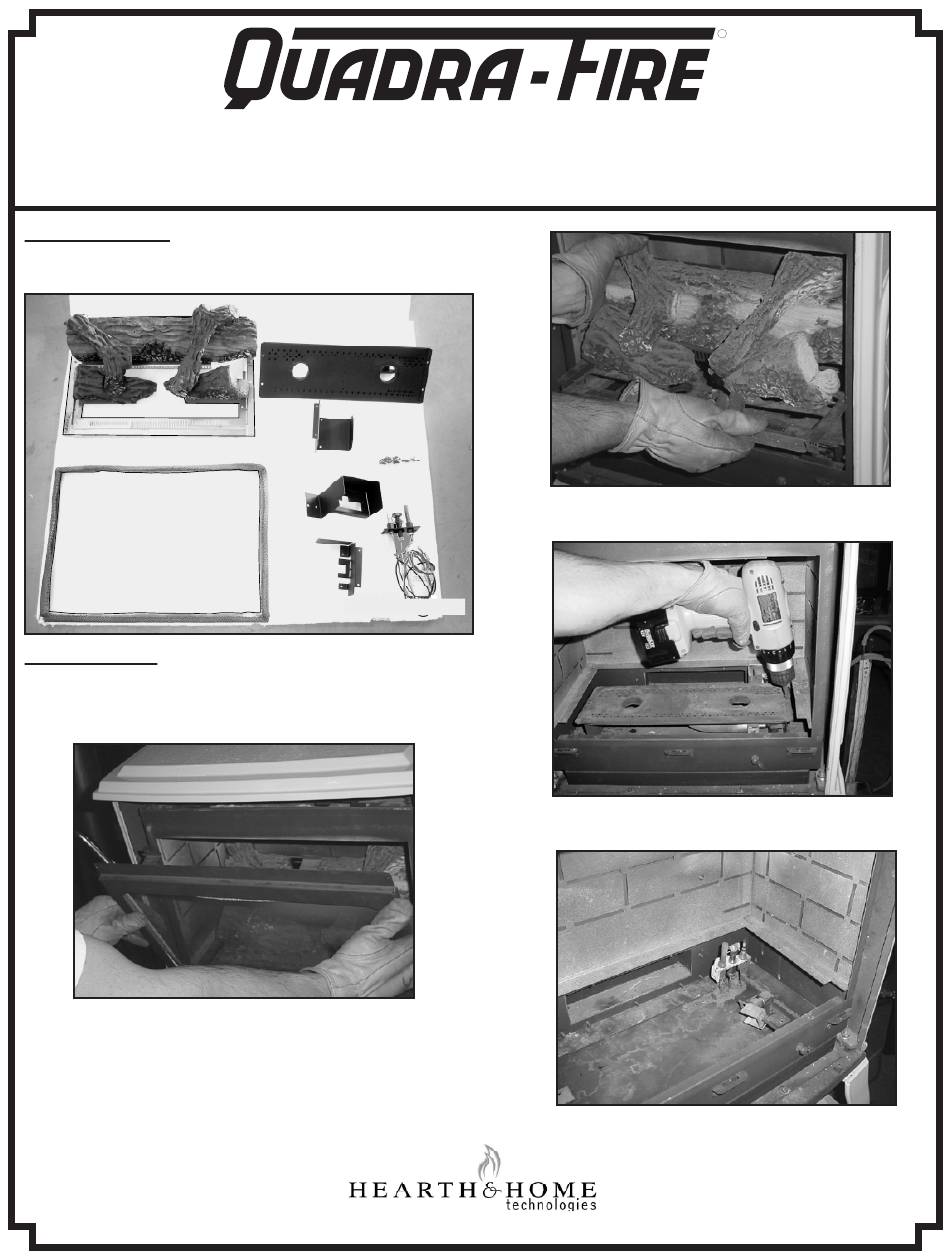

Remove the front and glass from the appliance.
Figure 1
1445 North Highway
Colville, WA 99114
Part #BRNR-425
Burner Assembly
Fasteners
Left Burner
Bracket
Pilot Bracket
Bulkhead
Retainer
Pilot Assembly
#455-0770B February 9, 2006 Page 1 of 3
Remove the log set and discard.
Figure 2
Remove the burner and discard.
Figure 3
Remove the burner brackets.
Figure 4
R
