Models:
Grand Vista 60, Grand Vista 80, Grand Vista 100

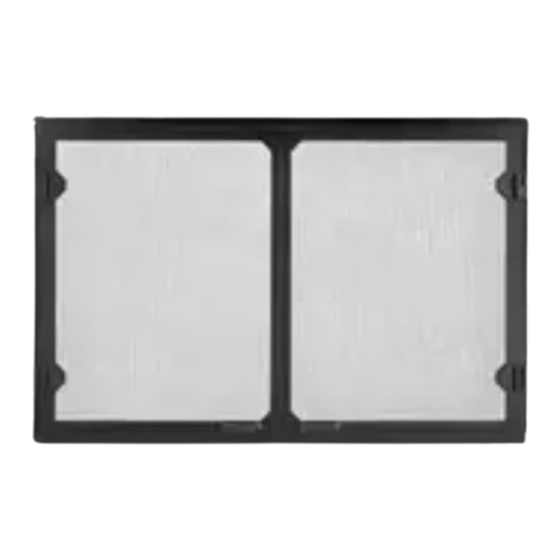

Mesh Door Kits
These mesh door kits have been tested for use with specific Hearth & Home Technologies products. Check with your local
building code agency before you begin installation to ensure compliance with local codes, including the need for permits
and follow-up inspections. If you encounter any problems regarding code approvals, or if you need clarification of any of
the instructions contained here, contact your Hearth & Home Technologies Inc. dealer. For the dealer nearest you, please
visit www.hearthnhome.com.
CAUTION! Risk of Cuts/Abrasions. Wear protective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
WARNING
Hot screen/mesh and glass doors will cause burns.
Do not touch screen/mesh or glass doors until cooled
NEVER allow children to touch screen/mesh or glass
doors
Keep children away
CAREFULLY SUPERVISE children in same room as
fireplace.
Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
Keep clothing, furniture, draperies and other flammable
materials away.
Hearth & Home Technologies • Grand Vista Mesh Doors • 4060-026 Rev D • 01/18
tm
HOT SURFACES!
Screen/mesh, glass doors and
other surfaces are hot during
operation AND cool down.
NOTICE: All fingerprints and smudges must be wiped clean
from the viewable surfaces of the door kit prior to the initial
burning of the fireplace. If this is not done, these prints and
smudges will be cured into the finish and set for the life of
the fireplace. To keep the finish looking its best, gently wipe
with a soft cloth and if desired, soap and water. Never use
thinner or abrasive cleaners since these products will damage
the finish.
Mesh Door Assembly
Figure 1 Grand Vista Mesh Door
Instructions
Upper
Mounting Bracket
Lower
Mounting Bracket
1
