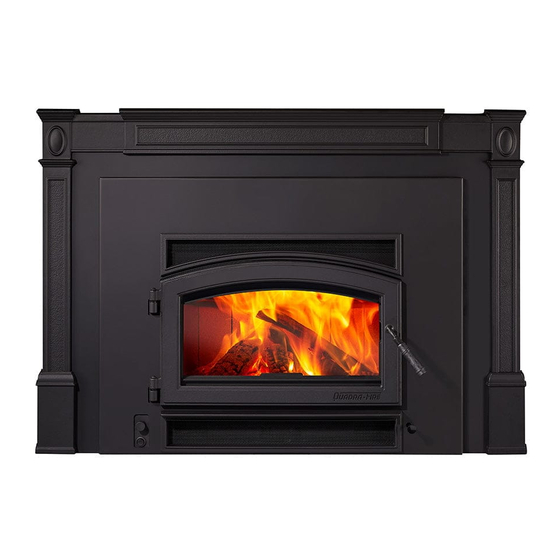

Hearth and Home Technologies Expedition-I Manual

Single burn rate wood-fired heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hearth & Home
Technologies
Project # 21-661
Model: Expedition-I
AKA: Gifford-CB, Gifford-BM
Type: Single Burn Rate Wood-Fired
Heater
June 18, 2021
ASTM E2780 – 10
Standard Test Method for
Determining Particulate Matter
Emissions from Wood Heaters
Contact: Mr. Corie Podschelne
352 Mountain House Road
Halifax, PA 17032
(610) 506-7338
PodschelneC@hearthnhome.com
Prepared by: Sebastian Button,
Laboratory Supervisor
11785 SE Highway 212 – Suite 305
Clackamas, OR 97015-9050
(503) 650-0088
WWW.PFSTECO.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Expedition-I and is the answer not in the manual?

Questions and answers

Related Manuals for Hearth and Home Technologies Expedition-I

Summary of Contents for Hearth and Home Technologies Expedition-I

  • Page 1 Hearth & Home Technologies Project # 21-661 Model: Expedition-I AKA: Gifford-CB, Gifford-BM Type: Single Burn Rate Wood-Fired Heater June 18, 2021 ASTM E2780 – 10 Standard Test Method for Determining Particulate Matter Emissions from Wood Heaters Contact: Mr. Corie Podschelne...
  • Page 2 Project # 21-661 Model: Expedition-I This page intentionally left blank. Page | 1...

  • Page 3: Table Of Contents

    Project # 21-661 Model: Expedition-I Contents Affidavit ................................. 3 Introduction ..............................4 Notes ................................. 4 Wood Heater Identification and Testing ......................5 Test Procedures and Equipment ........................6 Results ................................7 Summary Table ............................7 Test Run Narrative ............................ 8 Run 1 ..............................

  • Page 4: Affidavit

    Affidavit PFS-TECO was contracted by Hearth & Home Technologies to provide testing services for the Expedition-I Wood-Fired Room Heater per ASTM E2780, Standard Test Method for Determining Particulate Matter Emissions from Wood Heaters. All testing and associated procedures were conducted at PFS-TECO’s Hearth Products laboratory beginning on 5/13/2021 and ending on 5/13/2021.

  • Page 5: Introduction

    Model: Expedition-I Introduction Hearth & Home Technologies of Halifax, PA contracted with PFS-TECO to perform EPA certification testing on the model Expedition-I Wood-Fired Room Heater. All testing was performed at PFS-TECO’s Portland Laboratory in Clackamas, OR. All testing was performed by Sebastian Button.

  • Page 6: Wood Heater Identification And Testing

    Project # 21-661 Model: Expedition-I Wood Heater Identification and Testing • Appliance Tested: Expedition-I • Serial Number: Un-serialized Prototype – PFS Tracking Number 100 • Manufacturer: Hearth & Home Technologies • Catalyst: No • Variable Burn Rate: No • Heat exchange blower: Integral •...

  • Page 7: Test Procedures And Equipment

    Project # 21-661 Model: Expedition-I Test Procedures and Equipment All Sampling and analytical procedures were performed by Sebastian Button. procedures used are directly from ASTM E2780 and ASTM E2515. See the list below for equipment used. See Appendix C submitted with this report for calibration data.

  • Page 8: Results

    The average emissions rate for the 2 run test series was measured to be 1.9 g/hr with a Higher Heating Value efficiency of 65%. The average CO emission rate for the 2 tests was 2.54 g/min. The HHT model Expedition-I Wood-Fired Room Heater meets Expedition-I the 2020 crib wood PM emission standard of ≤...

  • Page 9: Test Run Narrative

    Project # 21-661 Model: Expedition-I Test Run Narrative Run 1 Run 1 was performed on 5/13/2021, in accordance with the procedures specified in ASTM E2780 for a single burn rate appliance. The total test time was 94 minutes. The particulate emissions rate for the test was 1.64 g/hr, the burn rate was 2.29 kg/hr with an HHV...

  • Page 10: Test Conditions Summary

    Project # 21-661 Model: Expedition-I Test Conditions Summary Testing conditions for all runs fell within allowable specifications of ASTM E2780 and ASTM E2515. A summary of facility conditions, fuel burned, and run times is listed below. Average Preburn Relative Test Fuel...

  • Page 11: Appliance Description

    Refractory Insulation: The firebox is lined with 1.25” thick firebrick. Flue Outlet: 6-inch exhaust outlet located on the top of the appliance. Catalytic Combustor: N/A Fan: The Expedition-I is equipped with a convection fan attached to the lower front of the appliance. Appliance Dimensions...
  • Page 12 Project # 21-661 Model: Expedition-I Firebox Volume Page | 11...
  • Page 13 Project # 21-661 Model: Expedition-I Appliance Front Appliance Left Page | 12...

  • Page 14: Appliance Rear

    Project # 21-661 Model: Expedition-I Appliance Right Appliance Rear Page | 13...

  • Page 15: Test Fuel Properties

    Project # 21-661 Model: Expedition-I Test Fuel Properties Test fuel used was dimensional Douglas fir lumber in 2” x 4” (nominal). Test fuel was air dried to the specified moisture range of 19-25% dry basis. A typical fuel load is pictured...

  • Page 16: Sampling Locations And Descriptions

    Project # 21-661 Model: Expedition-I Sampling Locations and Descriptions Sample ports are located 16.5 feet downstream from any disturbances and 1 foot upstream from any disturbances. Flow rate traverse data was collected 12 feet downstream from any disturbances and 5.5 feet upstream from any disturbances. (See below).

  • Page 17: Sampling Methods

    Project # 21-661 Model: Expedition-I Sampling Methods ASTM E2515 was used in collecting particulate samples. The dilution tunnel is 12 inches in diameter. All sampling conditions per ASTM E2515 were followed. No alternate procedures were used and no sampling intervals fell outside of proportional rates of +/- 10%.

  • Page 18: Sealed Unit

    Project # 21-661 Model: Expedition-I Sealed Unit Page | 17...

  • Page 19: List Of Appendices

    Project # 21-661 Model: Expedition-I List of Appendices The following appendices have been submitted electronically in conjunction with this report: Appendix A – Test Run Data, Technician Notes, Sample Analysis, and Alternate Test Method Approval Appendix B – Labels and Manuals Appendix C –Equipment Calibration Records...
  • Page 20 Conditioning Data.xlsm Pre-Conditioning Data Client: Job #: 21-661 Model: Expedition/Gifford Tracking #: Date(s): 2/22/21 - 3/18/21 Technician: Bud Fongeallaz Notes: Indicate initial air setting and any changes in in setting during Elapsed Time Catalyst Exit Flue (°F) conditioning, as well as weight and average moisture content of all fuel (hrs) (°F) additions.
  • Page 21 Expedition‐I Burn Instructions  Firebox Volume – 1.45 ft3  Nominal Fuel Length ~ 17”  Fuel Configuration – Four 2x4’s, 4 spacers on all pieces    Kindling Fire  Light approximately 7 lbs of kindling fuel with torch, push in ACC when closing door.  Preburn Fire  Once kindling has burned down to ~2 pounds and there is no more active flame, load preburn fuel.   Preburn should consist of two 17” pieces loaded parallel to door with five or six 9” pieces loaded  perpendicularly on top. Total preburn fuel weight should be about the same weight at the test fuel load.  Once fuel is loaded, close door immediately, activate ACC, turn fan onto high.   You should be in coal bed  range right at the hour mark.  Test Fire  Level coal bed, ensuring Lower Primary Air Orifices are clear. Activate ACC prior to loading, once fuel is  loaded keep door cracked for 80‐90 seconds then close. Fan on High, test length is ~90 minutes. ...
  • Page 22 WOOD STOVE TEST DATA PACKET ASTM E2780/E2515 Run 1 Data Summary Client: Model: Expedition 1 Job #: 21-661 Tracking #: Test Date: 5/13/2021 6/14/2021 Techician Signature Date PFS-TECO Page 1 of 17...
  • Page 23 Run 1.xlsm TEST RESULTS - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 2.29 Burn Rate (kg/hr): Ambient Sample Sample 1st Hour Filter Sample Train A Train B Total Sample Volume (ft 16.689 21.758 21.640...
  • Page 24 Run 1.xlsm B415.1 Efficiency Results Manufacturer: HHT Model: Expedition 1 Date: 05/13/21 Run: Control #: 21-661 Test Duration: Output Category: Test Results in Accordance with CSA B415.1-09 HHV Basis LHV Basis Overall Efficiency 64.3% 69.5% Combustion Efficiency 95.0% 95.0% Heat Transfer Efficiency 67.6% 73.1% Output Rate (kJ/h)
  • Page 25 Run 1.xlsm WOODSTOVE FUEL DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Preburn Fuel Information Moisture Moisture Size Length (in) Content Size Length (in) Content (% DB) (% DB) 17.00 23.8 17.00 23.2...
  • Page 26 Run 1.xlsm DILUTION TUNNEL & MISC. DATA - ASTM E2780 / E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Test Start Time: 12:03 Date: 5/13/2021 Total Sampling Time (min): Pre-Test Post Test Avg. Barometric Pressure (in. Hg) Recording Interval (min): 30.01 29.99...
  • Page 27 Run 1.xlsm WOODSTOVE PREBURN DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Recording Interval (min): Run Time (min): Temperatures (°F) Elapsed Scale Stove Flue Draft Time Reading FB Left FB Right FB Back FB Top FB Bottom Surface...
  • Page 28 Run 1.xlsm WOODSTOVE PREBURN DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Recording Interval (min): Run Time (min): Temperatures (°F) Elapsed Scale Stove Flue Draft Time Reading FB Left FB Right FB Back FB Top FB Bottom Surface...
  • Page 29 Run 1.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 30 Run 1.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 31 Run 1.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 32 Run 1.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 33 Run 1.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 34 Run 1.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 35 Run 1.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 36 Run 1.xlsm WOODSTOVE SURFACE TEMPERATURE DATA Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Stove Δ Temperature Data (°F) Stove Surface Elapsed Time (min) FB Left FB Right FB Back FB Top FB Bottom Catalyst Exit Average 333.3...
  • Page 37 Run 1.xlsm WOODSTOVE SURFACE TEMPERATURE DATA Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Stove Δ Temperature Data (°F) Stove Surface Elapsed Time (min) FB Left FB Right FB Back FB Top FB Bottom Catalyst Exit Average 357.3...
  • Page 38 Run 1.xlsm LAB SAMPLE DATA - ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: 100 Run #: Technician: SJB Date: 5/13/2021 Sample ID Tare, mg Total, mg Final, mg Catch, mg 241.4 242.4 Train A Filters - 1st hr G0033 120.4 G0034...
  • Page 39 ASTM E2780 Wood Heater Run Sheets Client: HHT Job Number: 21-661 Tracking #: 100 Model: Expedition 1 Run Number: 1 Test Date: 5/13/2021 Wood Heater Run Notes Test Control Settings N/A – Single Burn Rate Primary Air Setting(s): Targeted Burn Category: N/A – Single Burn Rate Preburn Notes Time Notes...
  • Page 40 ASTM E2780 Wood Heater Run Sheets Client: HHT Job Number: 21-661 Tracking #: 100 Model: Expedition 1 Run Number: 1 Test Date: 5/13/2021 Test Fuel Side View Test Fuel Iso View N/A – Single Burn Rate Stove Test Fuel Loaded in Stove Air Setting Technician Signature: Date: 5/13/21...
  • Page 41 WOOD STOVE TEST DATA PACKET ASTM E2780/E2515 Run 2 Data Summary Client: Model: Expedition 1 Job #: 21-661 Tracking #: Test Date: 5/13/2021 6/14/2021 Techician Signature Date PFS-TECO Page 1 of 19...
  • Page 42 Run 2.xlsm TEST RESULTS - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 1.99 Burn Rate (kg/hr): Ambient Sample Sample 1st Hour Filter Sample Train A Train B Total Sample Volume (ft 20.158 24.448 25.164...
  • Page 43 Run 2.xlsm B415.1 Efficiency Results Manufacturer: HHT Model: Expedition 1 Date: 05/13/21 Run: Control #: 21-661 Test Duration: Output Category: Test Results in Accordance with CSA B415.1-09 HHV Basis LHV Basis Overall Efficiency 64.9% 70.1% Combustion Efficiency 94.8% 94.8% Heat Transfer Efficiency 68.4% 74.0% Output Rate (kJ/h)
  • Page 44 Run 2.xlsm WOODSTOVE FUEL DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Preburn Fuel Information Moisture Moisture Size Length (in) Content Size Length (in) Content (% DB) (% DB) 17.00 24.6 17.00 19.7...
  • Page 45 Run 2.xlsm DILUTION TUNNEL & MISC. DATA - ASTM E2780 / E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Test Start Time: 15:59 Date: 5/13/2021 Total Sampling Time (min): Pre-Test Post Test Avg. Barometric Pressure (in. Hg) Recording Interval (min): 29.93 29.90...
  • Page 46 Run 2.xlsm WOODSTOVE PREBURN DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Recording Interval (min): Run Time (min): Temperatures (°F) Elapsed Scale Stove Flue Draft Time Reading FB Left FB Right FB Back FB Top FB Bottom Surface...
  • Page 47 Run 2.xlsm WOODSTOVE PREBURN DATA - ASTM E2780 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Recording Interval (min): Run Time (min): Temperatures (°F) Elapsed Scale Stove Flue Draft Time Reading FB Left FB Right FB Back FB Top FB Bottom Surface...
  • Page 48 Run 2.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 49 Run 2.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 50 Run 2.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 51 Run 2.xlsm BOX A TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Fuel Weight (lb) Temperature Data (°F) Dilution Orifice Elapsed Meter Gas Meter Sample Meter Pro.
  • Page 52 Run 2.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 53 Run 2.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 54 Run 2.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 55 Run 2.xlsm BOX B TEST DATA - ASTM E2780 / ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Particulate Sampling Data Flue Gas Data Meter Gas Meter Orifice dH Flue Draft Elapsed Sample Meter Pro.
  • Page 56 Run 2.xlsm WOODSTOVE SURFACE TEMPERATURE DATA Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Stove Δ Temperature Data (°F) Stove Surface Elapsed Time (min) FB Left FB Right FB Back FB Top FB Bottom Catalyst Exit Average 319.0...
  • Page 57 Run 2.xlsm WOODSTOVE SURFACE TEMPERATURE DATA Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Stove Δ Temperature Data (°F) Stove Surface Elapsed Time (min) FB Left FB Right FB Back FB Top FB Bottom Catalyst Exit Average 342.4...
  • Page 58 Run 2.xlsm WOODSTOVE SURFACE TEMPERATURE DATA Client: Job #: 21-661 Model: Expedition 1 Tracking #: Run #: Technician: Date: 5/13/2021 Stove Δ Temperature Data (°F) Stove Surface Elapsed Time (min) FB Left FB Right FB Back FB Top FB Bottom Catalyst Exit Average 297.5...
  • Page 59 Run 2.xlsm LAB SAMPLE DATA - ASTM E2515 Client: Job #: 21-661 Model: Expedition 1 Tracking #: 100 Run #: Technician: SJB Date: 5/13/2021 Sample ID Tare, mg Total, mg Final, mg Catch, mg 239.7 241.5 Train A Filters - 1st hr G0041 119.1 G0042...
  • Page 60 ASTM E2780 Wood Heater Run Sheets Client: HHT Job Number: 21-661 Tracking #: 100 Model: Expedition 1 Run Number: 2 Test Date: 5/13/2021 Wood Heater Run Notes Test Control Settings N/A – Single Burn Rate Primary Air Setting(s): Targeted Burn Category: N/A – Single Burn Rate Preburn Notes Time Notes...
  • Page 61 ASTM E2780 Wood Heater Run Sheets Client: HHT Job Number: 21-661 Tracking #: 100 Model: Expedition 1 Run Number: 2 Test Date: 5/13/2021 Test Fuel Side View Test Fuel Iso View N/A – Single Burn Rate Stove Test Fuel Loaded in Stove Air Setting Technician Signature: Date: 5/14/21...
  • Page 66 Run 1.xlsm Sample Calculations – ASTM E2780 & E2515 Client: Model: Expedition 1 Run: Equations used to calculate the parameters listed below are described in this appendix. Sample calculations are provided for each equation. The raw data and printout results from a sample run are also provided for comparison to the sample calculations.
  • Page 67 Run 1.xlsm – Weight of test fuel spacers, dry basis, kg ASTM E2780 equation (1) = (M )(100/(100 + FM Where, average fuel moisture of test fuel spacers, % dry basis weight of test fuel spacers, wet basis, kg Sample Calculation: 15.7 % 0.4536 = Conversion factor from lbs to kg = [( 2.1...
  • Page 68 Run 1.xlsm – Weight of test fuel crib, excluding nails and spacers, dry basis, kg ASTM E2780 equation (2) = Σ[(M )(100/(100 + FM CPnwb Where, weight of each test fuel piece n in fuel crib, excluding nails and spacers, wet basis, kg CPnwb Average fuel moisture of test fuel n in fuel crib, % dry basis Sample Calculation (test fuel piece 1):...
  • Page 69 Run 1.xlsm - Density of fuel crib, excluding spacers and nails, dry basis, lbs/ft ASTM E2780 equation (3) Where, = Volume of fuel crib, ft Sample calculation: 1728 = conversion from in to ft 6.11 / 357 * 1728 lbs/ft 29.56 PFS-TECO Page 4 of 15...
  • Page 70 Run 1.xlsm - Total weight of fuel crib excluding nails, dry basis, kg FTAdb ASTM E2780 equation (4) FTAdb Sample calculation: = 0.82 + 2.77 FTAdb 3.59 kg PFS-TECO Page 5 of 15...
  • Page 71 Run 1.xlsm BR – dry burn rate, kg/hr ASTM E2780 equation (5) 60 M FTAdb θ Where, θ = Total length of test run, min Sample Calculation: = 3.59 θ = 94 60 x 3.59 2.29 kg/hr PFS-TECO Page 6 of 15...
  • Page 72 Run 1.xlsm – Average gas velocity in the dilution tunnel, ft/sec ASTM E2515 equations (9)       Where: strav Adjustment factor for pitot tube center point reading = , ASTM E2515 Equation (1) scent Dilution tunnel velocity calculated after the multi-point pitot traverse at the center, ft/sec scent Dilution tunnel velocity calculated after the multi-point pitot traverse, ft/sec strav...
  • Page 73 Run 1.xlsm – Average gas flow rate in dilution tunnel, dscf/hr ASTM E2515 equation (3) Where: 3600 Conversion from seconds to hours (ASTM method uses 60 to convert in minutes) Water vapor in gas stream, proportion by volume; assume 2% Cross sectional area of dilution tunnel, ft Standard absolute temperature, 528 °R Absolute average gas static pressure in dilution tunnel, = P...
  • Page 74 Run 1.xlsm – Volume of Gas Sampled Corrected to Dry Standard Conditions, dscf m(std) ASTM E2515 equation (6) Where: 17.64 °R/in. Hg Volume of gas sample measured at the dry gas meter, dcf Dry gas meter calibration factor, dimensionless Barometric pressure at the testing site, in. Hg ∆H Average pressure differential across the orifice meter, in.
  • Page 75 Run 1.xlsm – Total Particulate Matter Collected, mg ASTM E2515 Equation (12) Where: mass of particulate matter from probe, mg mass of particulate matter from filters, mg mass of particulate matter from filter seals, mg Sample Calculation: Using equation for Train A (first hour): Using equation for Train A (post-first hour): Train A aggregate: Using equation for Train B:...
  • Page 76 Run 1.xlsm - Concentration of particulate matter in tunnel gas, dry basis, corrected to STP, g/dscf ASTM E2515 equation (13) Where: Constant, 0.001 g/mg Total mass of particulate matter collected in the sampling train, mg Volume of gas sampled corrected to dry standard conditions, dscf m(std) Sample calculation: For Train 1:...
  • Page 77 Run 1.xlsm – Total Particulate Emissions, g ASTM E2515 equation (15) Where: Concentration of particulate matter in tunnel gas, g/dscf Concentration particulate matter room air, g/dscf Average dilution tunnel gas flow rate, dscf/hr θ Total time of test run, minutes Sample calculation: For Train 1 = ( 0.000080 -...
  • Page 78 Run 1.xlsm PR - Proportional Rate Variation ASTM E2515 equation (16)                  Where: θ = Total sampling time, min θ = Length of recording interval, min = Volume of gas sample measured by the dry gas meter during the “ith”...
  • Page 79 Run 1.xlsm – Particulate emissions for test run, g/hr ASTM E2780 equation (6) = 60 (E /θ) Where, = Total particulate emissions, grams θ = Total length of full integrated test run, min Sample Calculation: (Dual train average) = 2.57 g θ...
  • Page 80 Run 1.xlsm – Particulate emission factor for test run, g/dry kg of fuel burned ASTM E2780 equation (7) FTAdb Sample Calculation: (Dual train average) = 2.57 g 3.59 kg 2.57 / 3.59 0.72 g/kg PFS-TECO Page 15 of 15...
  • Page 81 0.32 4.63 0.38 LISTED ROOM HEATER, SOLID FUEL TYPE "For Use with Solid Wood Fuel Only." Also for use in Mobile Home. PREVENT HOUSE FIRES Install and use only in accordance with manufacturer's installation, venting and 12.00 operating instructions. CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA Refer to manufacturer's instructions and local codes for precautions required for passing chimney through a combustible wall or ceiling.
  • Page 82 CONTROL (ACC) • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Do not over fire - If heater or chimney connector glows, MODEL NUMBER: you are over firing. Over firing will void your warranty. EXPEDITION-I • Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house fire. WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down.
  • Page 83 Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. • NOTICE: Indicates practices which may cause damage to the appliance or to property. TABLE OF CONTENTS 1 Important Safety Information 5 Appliance Set-Up A. Insert Certification ..............3 A. Outside Air Kit ................18 B. BTU & Efficiency Specifications ..........3 B. Stove Pipe or Liner to Flue Collar ..........19 C. Mobile Home Approved (USA only) .........4 C. Optional Offset Adapter ............19 D.

  • Page 84: Important Safety Information

    Important Safety Information A. Appliance Certification B. BTU & Efficiency Specifications Model Number: EXPEDITION-I EPA Certification #: Number: N/A Laboratory: OMNI Test Laboratories, Inc. EPA Certified Emissions: 1.9 grams per hour Report Number: XXXXXXXXX *LHV Tested Efficiency: 70% Solid Fuel Type, Listed **HHV Tested Efficiency: 65%...

  • Page 85: Mobile Home Approved (Usa Only)

    C. Mobile Home Approved (USA only) I. California - Prop65 • This appliance is approved for mobile home installations WARNING when not installed in a sleeping room and when an outside combustion air inlet is provided. This product and the fuels used to operate this product (wood), and the products of combustion of such fuels, can expose you to • The structural integrity of the mobile home floor, ceiling, chemicals including carbon black, which is known to the State of...

  • Page 86: Getting Started

    Getting Started A. Design and Installation Considerations B. Draft Draft is the pressure difference needed to vent appliances CAUTION successfully. When a appliance is drafting successfully, all combustion byproducts are exiting the home through Check building codes prior to installation. the chimney. • Installation MUST comply with local, regional, state Considerations for successful draft include: and national codes and regulations.

  • Page 87: Negative Pressure

    C. Negative Pressure D. Tools And Supplies Needed Before beginning the installation be sure the following tools WARNING and building supplies are available: - Reciprocating saw Asphyxiation Risk. - Framing material • Negative pressure can cause spillage - Pliers combustion fumes, soot - High temp caulking material carbon monoxide.

  • Page 88: Install Checklist

    F. Install Checklist ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual. _________________________________________________________________________________ Customer: ______________________________________________________________________________ Date Installed: ______________________________________________________________________________ Lot / Address: ________________________________________________________________________ Location of Appliance:...

  • Page 89: Dimensions And Clearances

    Dimensions and Clearances A. Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID) 42-3/4” (1086 mm) 26-1/2” (672 mm) 24” (610 mm) 31” (787 mm) 15-1/4” 9-3/8” (388 mm) (237 mm) 3-1/8” 17-7/8” (455 mm) (79 mm) Figure 8.1 - Top View with Flat Surround Figure 8.4 - Top View with Cast Surround 26-3/8” (670 mm) 43” 24” (610 mm) (1092 mm) 16”...
  • Page 90 12-1/8” 11-3/8” (309 mm) (290 mm) 19-3/4” 19-3/4” (502 mm) (502 mm) 19” 19” (483 mm) (483 mm) Figure 9.1 - Side View with Flat Surround Figure 9.4 - Side View with Cast Surround 11-1/2” 12-1/4” (292 mm) (311 mm) 21-3/8” 21-3/8” (544 mm) (544 mm) Figure 9.2 - Side View with Flat Surround and Optional 15 Degree Figure 9.5 - Side View with Cast Surround and Optional 15 Degree Adapter (DV-6DLR-E15ADSS) Adapter (DV-6DLR-E15ADSS) 13-1/4”...

  • Page 91: Clearances To Combustibles

    B. Clearances to Combustibles United States and Canada (UL and ULC) In Canada a full length 6 inch (152mm) S635 flue liner required as per ULC S628. In USA a minimum 5 ft length (1.82m), 6 inch (152mm) diameter flue liner is required as per UL 1482. TOP TRIM (3/4”...
  • Page 92 WARNING Fire Risk. • Comply with all minimum clearances to combustibles as specified. • Failure to comply may cause house fire. NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction 0 to 4.5 inches from bottom of unit, thermal protection required. R value of 2.9. 4.5 inches or more from bottom of unit, ember protection only required Figure 11.1 NOTE: Hearth Rug may be used in Suggested Area...

  • Page 93: Chimney Systems

    Chimney Systems A. Locating Your Stove & Chimney Location of the appliance and chimney will affect performance. As shown in Figure 12.1 the chimney should: • Install through the warm space enclosed by the building envelope. This helps to produce more draft, especially during lighting and die down of the fire. • Penetrate the highest part of the roof. This minimizes the affects of wind turbulence and down drafts. • Consider the appliance location in order to avoid floor and ceiling attic joists and rafters. • Locate termination cap away from trees, adjacent structures, uneven roof lines and other obstructions. Your local dealer is the expert in your geographic area and can usually make suggestions or discover solutions that will easily correct your flue problem. Recommended Recommended Location Location Marginal Location Location Recommended Location NOT Recommended Windward Outside Air Kit Termination Cap Leeward Multi-level Roofs Figure 12.1...

  • Page 94: Chimney Termination Requirements

    B. Chimney Termination Requirements NOTICE: Locating the appliance in a basement or in Follow manufacturer’s instructions for clearance, securing a location of considerable air movement can cause flashing and terminating the chimney (Figure 13.1 and intermittent smoke spillage from appliance. Do not locate appliance near Figure 13.2). •...

  • Page 95: Venting Systems

    D. Venting Systems WARNING Chimney Connector - It is also known as flue pipe or stove pipe. It must be 6 inches (152mm) minimum diameter Asphyxiation Risk. stainless steel connector pipe. • DO NOT CONNECT THIS Appliance Chimney - The chimney can be new or existing, masonry TO A CHIMNEY FLUE SERVICING or prefabricated and must meet the following minimum ANOTHER APPLIANCE.

  • Page 96: Larger Chimneys

    H. Larger Chimneys • Cross-sectional area shall conform to NFPA 211-2006 Section 12.4.5.1. It is recommended that chimneys with larger diameters than • Should be lined with a 6 inch (152mm) stainless steel flue 6 inches (152mm) be relined. An oversized flue can affect liner to improve performance and reduce creosote build- draft and impair performance and will allow increased build- up of creosote. • An equivalent liner must be a listed chimney liner system or other approved material. NOTICE: Check with your local building authorities and/ or consult the National Fire Protection Association •...

  • Page 97: Metal Heat Circulating Masonry

    J. Metal Heat Circulating Masonry • No dilution air is allowed to enter the chimney. a. Secure the fireplace damper in the open position. If This insert conforms with the safety standard UL-1482 and this cannot be accomplished, it will be necessary to ULC S628 (Canada) in all respects and is approved to UL remove the damper.

  • Page 98: Ovalizing Round Stainless Steel Liners

    L. Ovalizing Round Stainless Steel Liners N. Zero-Clearance Fireplace Ovalizing round stainless steel liners to accommodate the A permit may be required for installations, final approval is liner passing through the damper region of a fireplace is an contingent of the authority having local jurisdiction. Consult allowable and acceptable practice. insurance carrier, local building, fire officials or authorities having jurisdiction about restrictions, installation inspection, Ensure that the ovalization is minimized to the extent and permits. required to fit through the damper. Inspect the existing fireplace and chimney for any damage M. Altering the Fireplace or flaws such as burnouts, metal or refectory warping.

  • Page 99: Appliance Set-Up

    Appliance Set-Up A. Outside Air Kit A source of air (oxygen) is necessary in order for combustion to take place. Whatever combustion air is consumed by the fire must be replaced. Air is replaced via air leakage around OUTSIDE AIR PLATE windows and under doors. In homes that have tightly sealed doors and windows, an outside air source is needed. Installation Instructions 1. Ensure existing access hole in fireplace will not be COVER PLATE covered by the outer can. Existing outside air intake hole may be under, at the rear, or side of outer can. Outside...

  • Page 100: Stove Pipe Or Liner To Flue Collar

    B. Stove Pipe or Liner to Flue Collar D. Appliance to Stove Pipe or Liner 1. There are 4 already drilled holes in the flue collar 90 1. Once you have the appliance in place and secured, reach degrees apart. Attach the flue collar to the stove pipe/ up through the flue opening and grab the attachment bar liner. If the seal is questionable use high temperature and pull down inside flue opening (Figure 19.3).

  • Page 101: Power Cord

    E. Power Cord The power cord is shipped assembled to the appliance. You may route the power cord either to the left or right side depending on your configuration for power source (Figure 20.1). Figure 20.2 Figure 20.1 F. Flat Surround Overall Dimensions Part Number Standard Size...

  • Page 102: Flat Surround With Trim Kit

    G. Flat Surround with Trim Kit 5. Install two steel springs at the top on each side and between the flat surround and the assembled trim kit as Overall Part shown in Figure 21.3 Trim Kit Dimensions Number Standard Size 43” x 31” SP1-4331 TRIMKIT-4331-NL Large Size 51” x 34” SP1-5134 TRIMKIT-5134-NL 1.

  • Page 103: Standard Surround & Cast Trim Kit

    H. Standard Surround & Cast Trim Kit 6. Place the cast footers under the metal sides aligning the top and bottom holes in the cast footers and metal sides. Overall Dimensions Part Number 7. The 9 mounting clips are shipped in one long strip. Hand Standard Size 43” x 31” CT1-4331 break apart or use pliers.

  • Page 104: Mobile Home Installation

    Mobile Home Installation, Approved for USA Installation ONLY! You must use a Quadra-Fire Outside Air Kit Part #: Spark Arrestor Cap OAK-ACC 1. An outside air inlet must be provided for combustion and must remain clear of leaves, debris, ice and/or snow. It Storm Collar must be unrestricted while unit is in use to prevent room air starvation which can cause smoke spillage and an Roof Flashing inability to maintain a fire. Smoke spillage can also set...

  • Page 105: Reference Materials

    Reference Materials A. Wiring Harness Service Part: SRV7000-891 Five Setting Switch Switch Snap Disc Power Cord Blower Figure 24.1 B. Brick Diagram Service Part: SRV7094-022 Figure 24.2 Placement Dimensions Qty Required 9” x 4.5” x 1.25” 7” x 4.5” x 1.25” 9” x 2” x 1.25” 7094-802A 04/21...

  • Page 106: Service And Maintenance Log

    C. Service and Maintenance Log Date of Service Performed By Description of Service 7094-802A 04/21...
  • Page 107 Date of Service Performed By Description of Service 7094-802A 04/21...

  • Page 108: Accessories

    D. Accessories 7094-802A 04/21...
  • Page 109 7094-802A 04/21...
  • Page 110 7094-802A 04/21...
  • Page 111 CONTACT INFORMATION Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
  • Page 112 CONTROL (ACC) • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. • Do not over fire - If heater or chimney connector glows, MODEL NUMBER: you are over firing. Over firing will void your warranty. EXPEDITION-I • Comply with all minimum clearances to combustibles as specified. Failure to comply may cause house fire. WARNING HOT SURFACES! Glass and other surfaces are hot during operation AND cool down.
  • Page 113 and Welcome to the Quadra-Fire Family NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction A. Sample of Serial Number / Safety Label LOCATION: UNDER ASH LIP, PULL OUT TO VIEW LISTED ROOM HEATER, SOLID FUEL TYPE "For Use with Solid Wood Fuel Only." Also for use in Mobile Home.

  • Page 114: Contains Updated Information

    Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. • NOTICE: Indicates practices which may cause damage to the appliance or to property. TABLE OF CONTENTS A. Sample of Serial Number / Safety Label ....2 3 Maintenance and Service B. Warranty .

  • Page 115: Warranty

    B. Warranty Hearth & Home Technologies LLC LIMITED LIFETIME WARRANTY Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor.
  • Page 116 WARRANTY CONDITIONS: • Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers is available on the HHT branded websites.

  • Page 117: Quick Start Guide

    C. Quick Start Guide NOTE: These are generic drawings and may not represent your specifi c model. 10 Pieces of Newspaper, 10-20 Pieces of Dry ITEMS NEEDED FOR FIRST FIRE: Kindling and Few Pieces of Dry Split Wood. ACTIVATE LOAD WOOD ADD NEWSPAPER Start-Up Air Control Warning! Risk of Fire. ADD KINDLING Close and securely latch the door after the fi re has started, and after refueling, to prevent: Spillage of smoke, fl ame and carbon...

  • Page 118: Listing And Code Approvals

    Listing and Code Approvals A. Insert Safety Certification C. BTU & Efficiency Specifications Mode Number: EXPEDITION-I EPA Certification #: Number: N/A Laboratory: OMNI Test Laboratories, Inc. EPA Certified Emissions: 1.9 grams per hour Report Number: *LHV Tested Efficiency: 70% XXXXXXXXXX Solid Fuel Type, Listed...

  • Page 119: Mobile Home Approved (Usa Only)

    D. Mobile Home Approved (USA only) WARNING • This appliance is approved for mobile home installations when not installed in a sleeping room and when an Fire Risk. outside combustion air inlet is provided. Hearth & Home Technologies disclaims any •...

  • Page 120: Operating Instructions

    Operating Instructions B. Fire Safety WARNING To provide reasonable fire safety, the following should be given serious consideration: HOT SURFACES! Glass and other surfaces are hot during 1. Install at least one smoke detector on each floor of your operation AND cool down. home to ensure your safety. They should be located away from the heating appliance and close to the sleeping Hot glass will cause burns.

  • Page 121: Combustible/Non-Combustible Materials

    1. Symptoms of Over-Firing Splitting wood before it is stored reduces drying time. Wood should be stacked so that both ends of each piece Symptoms of over-firing may include one or more of are exposed to air, since more drying occurs through the the following: cut ends than the sides. This is true even with wood that - Chimney connector or appliance glowing.

  • Page 122: Automatic Combustion Control (Acc)

    H. Burn Rate and Operating Efficiency 3. Final Stage - The final stage of burning is the charcoal stage. This occurs when the flammable gases have been mostly burned and only charcoal remains. This is WARNING a naturally clean portion of the burn. The coals burn with hot blue flames.

  • Page 123: Wood Fuel

    I. Wood Fuel The majority of the problems appliance owners experience are caused by trying to burn wet, unseasoned wood. WARNING • Wet, unseasoned wood requires energy to evaporate the water instead of heating your home, and Fire Risk. • Causes evaporating moisture which cools your chimney, • DO NOT BURN...
  • Page 124 There are many ways to build a fire. The basic principle NOTE: Build fire on brick firebox floor. Do NOT use is to light easily-ignitable tinder or paper, which ignites grates, andirons or other methods to support fuel. It will the fast burning kindling, which in turn ignites the slow- adversely affect emissions.

  • Page 125: Blower Control Box With Snap Disc

    K. Blower Control Box with Snap Disc CAUTION 1. The blower will turn on/off automatically when set to AUTO (Figure 14.1). When burning your first fire, you will experience smoke and odor from the appliance resulting from the 2. When set to MANUAL, the fan will turn on/off only. This curing of paint and burning off of any oils remaining setting over-rides the internal snap disc.

  • Page 126: Negative Pressure

    O. Negative Pressure To minimize the effects of negative air pressure: • Install the outside air kit with the intake facing prevailing WARNING winds during the heating season • Ensure adequate outdoor air for all combustion Asphyxiation Risk. appliances and exhaust equipment • Negative pressure can cause spillage • Ensure furnace and air conditioning return vents are not combustion fumes, soot...

  • Page 127: Maintenance And Service

    Maintenance and Service A. Quick Reference Maintenance Guide CAUTION When properly maintained, your appliance will give you many years of trouble-free service. Contact your dealer to answer Allow the appliance to completely cool down before questions regarding proper operation, troubleshooting performing any cleaning or maintenance. Start the first and service for your appliance. Visit www.quadrafire.com/ inspection after the first 2 months of use, or if performance owner-resources to view basic troubleshooting, FAQs, use changes, and adjust your schedule accordingly.

  • Page 128: Cleaning The Glass & Replacement

    B. Cleaning the Glass & Replacement CAUTION Most of the carbon deposits on the glass will burn off during hot fires. Handle glass assembly with care. However, the ash residue that accumulates on the glass Glass When cleaning glass: Assembly surface should be removed regularly to prevent etching. To clean the glass, follow this procedure: • Avoid striking, scratching or slamming glass. •...
  • Page 129 3. Appliance Inspection WARNING • Frequency: Every 2 months at the same time the chimney and chimney connector are inspected. Fire Risk. Prevent creosote buildup. • By: Homeowner • Inspect chimney connector and Check for: chimney once every two months during • Cracks in glass heating season.

  • Page 130: Correct Baffle & Blanket Placement

    Clean all the fingerprints and oils from plated surfaces NOTE: These are generic drawings and may not BEFORE firing the appliance for the first time. If not cleaned represent your specific model. properly before lighting your first fire, the oils can cause permanent markings on the plating. CORRECT POSITION After the plating is cured, the oils will not affect the finish and little maintenance is required. Wipe clean as needed.

  • Page 131: Troubleshooting Guide

    Troubleshooting Guide With proper installation, operation, and maintenance your wood appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist you or a qualified service person in the diagnosis of a problem and the corrective action to be taken. Start Fire Problems Possible Cause Solution Not enough kindling/paper or no Use dry kindling, more paper. Arrange kindling & kindling/paper wood for air movement. Check for restricted termination cap Check for blockage of outside air kit; if installed. Check for flue blockage. Pre-warm flue before starting fire (refer to Building a Fire on page 12). Not enough air for fire to ignite Check for adequate vent height (refer to Chimney Height / Rise and Run on page 14 in the Installation manual). Can not get fire started Excessive smoke or spillage Open window below the appliance towards...

  • Page 132: Reference Materials

    Reference Materials A. Service and Maintenance Log Date of Service Performed By Description of Service 7094-803A 04/21...
  • Page 133 Date of Service Performed By Description of Service 7094-803A 04/21...

  • Page 134: Service Parts List

    B. Service Parts List 7094-803A 04/21...
  • Page 135 7094-803A 04/21...
  • Page 136 7094-803A 04/21...
  • Page 137 7094-803A 04/21...
  • Page 138 7094-803A 04/21...
  • Page 139 CONTACT INFORMATION Hearth & Home Technologies 352 Mountain House Road Halifax, PA 17032 Division of HNI INDUSTRIES Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer log onto www.quadrafi re.com CAUTION DO NOT DISCARD THIS MANUAL •...
  • Page 140 Calibration Certificate ID 072731-239-041621-ACC-USI Accredited by the American Association Mettler Toledo for Laboratory Accreditation (A2LA) Service Business Unit Industrial CALIBRATION CERT #1902.01 1900 Polaris Parkway Columbus, OH 43240 ISO 17025 Registered 1-800-523-5123 ANSI/NCSL Z540-1 Accredited Accuracy Calibration Certificate Customer Company: PFS-TECO Address: 11785 SE Hwy 212;...
  • Page 141 Calibration Certificate ID 072731-239-041621-ACC-USI Measurement Results Repeatability Test Load: 500 lb As Found As Found As Left As Left 500.00 lb 500.00 lb 500.02 lb 500.00 lb 500.00 lb 500.00 lb Standard 0.008 lb Deviation The "d" in the graph represents the readability of the range/interval in which the test was performed.
  • Page 142 Calibration Certificate ID 072731-239-041621-ACC-USI Error of Indication As Found Reference Value Indication Error of Indication Expanded Uncertainty 0 lb 0.00 lb 0.00 lb 2 ¹ 250 lb 250.00 lb 0.00 lb 500 lb 500.00 lb 0.00 lb 3 ¹ 750 lb 750.00 lb 0.00 lb 4 ¹...
  • Page 143 Calibration Certificate ID 072731-239-041621-ACC-USI Test Equipment All weights used for metrological testing are traceable to national or international standards. The weights were calibrated and certified by an accredited calibration laboratory. Weight Set 1: NIST NIST-F Weight Set No.: 182 50's & 25's Date of Issue: 25-Jun-2019 Certificate Number:...
  • Page 144 Calibration Certificate ID 072731-239-041621-ACC-USI Measurement Uncertainty of the Weighing Instrument in Use Stated is the expanded uncertainty with k=2 in use. The formula shall be used for the estimation of the uncertainty under consideration of the errors of indication. The value R represents the net load indication in the unit of measure of the device. Temperature coefficient for the evaluation of the measurement uncertainty in use: 10.0 ·...
  • Page 145 Attachment to Calibration Certificate: 072731-239-041621-ACC-USI Handbook 44 Tolerance Assessment Handbook 44 Tolerance Assessment (Acceptance) Assessment done without considering measurement uncertainty. The measurements from the attached calibration certificate were assessed against the Tolerances defined by NIST Handbook 44. The range of measurements for both Eccentricity and Repeatability (if performed) tests is assessed against Maintenance Tolerances. As Found As Left = Passed...
  • Page 147 Dry Gas Meter Calibration Meter Manufacturer: Apex Model: XC-50-DIR Lab ID #: Serial #: 1906005 Calibration Date: 3/15/2021 Calibration Expiration: 9/15/2021 Barometric Pressure: 30.07 in. Hg Reference Standard DGM Unit Under Test Previous Calibration Manufacturer: Apex Date 8/17/2020 γ Factor: Model: SK25DA 0.999 Lab ID#: 47...
  • Page 148 Pressure Gauge Calibration Work Sheet Gauge Manufacturer: Apex Maximum Range (inH Instrument ID #: 129 (dH) Calibration Date: 3/16/2021 Calibration Expiration: 3/16/2022 Barometric Pressure: 30.10 in. Hg Reference Standard Gauge Manufacturer: Dwyer Model: 477AV-1 Instrument ID#: 174 Calibration Expiration Date: 10/8/2021 Reference Gauge Pressure Gauge Difference...
  • Page 149 Emissions Sampling System Thermocouple Calibration Check Calibration based on NIST Monograph 175 per ASTM E2515-11 All thermocouples are type “K” Date: 3/12/2021 Sampling System ID Numbers: 129/130 Performed By: S. Button Calibration Instrument ID Number: Thermocouple Location Reference Acceptable Temperature Error (F) Catalyst Flue...
  • Page 150 Dry Gas Meter Calibration Meter Manufacturer: Apex Model: XC-50-DIR Lab ID #: Serial #: 1906006 Calibration Date: 3/15/2021 Calibration Expiration: 9/15/2021 Barometric Pressure: 30.06 in. Hg Reference Standard DGM Unit Under Test Previous Calibration Manufacturer: Apex Date 8/17/2021 γ Factor: Model: SK25DA 1.004 Lab ID#: 47...
