Please read the instructions completely before beginning the installation.
Enzo Collection
Model Number: 3655EN-TM
Flush both supply lines before installation, then shut off both supply lines.
Minimum hole size for the spout and handle trim is 1-1/4" and maximum of 1-1/2"
HANDLE TRIM INSTALLATION
-Unscrew pre-assembled handle trim from the valve
1
body. Hot valve assembly "Red" to be mounted on
left. Cold valve assembly "Blue" to be mounted on right.
- Remove the top lock nut and the fiber gasket from
2
the valve body.
- Apply a ring of silicone caulking around the handle hole
on deck top.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Installation Instruction
ENZO COLLECTIONS

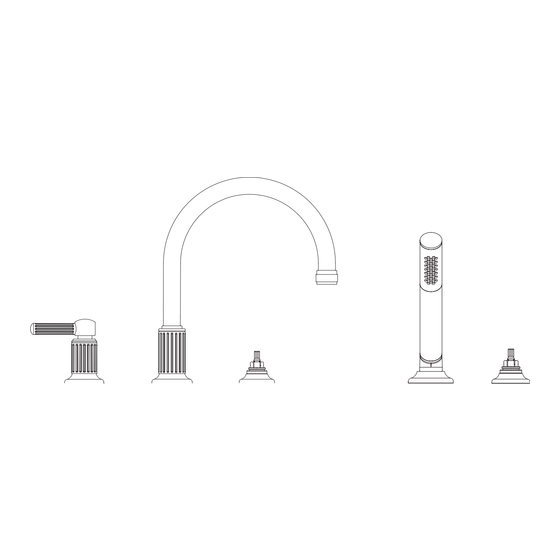

Roman Tub Filler with Hand Shower
Rev 06/2016
1/7
Advertisement
Related Manuals for Santec Enzo 3655EN-TM
Summary of Contents for Santec Enzo 3655EN-TM
- Page 1 Rev 06/2016 Installation Instruction ENZO COLLECTIONS Roman Tub Filler with Hand Shower Please read the instructions completely before beginning the installation. Enzo Collection Model Number: 3655EN-TM Flush both supply lines before installation, then shut off both supply lines. Minimum hole size for the spout and handle trim is 1-1/4” and maximum of 1-1/2” HANDLE TRIM INSTALLATION -Unscrew pre-assembled handle trim from the valve body.
-
Page 2: Spout Installation
-Slip valve body up from below tub deck. Place the top lock nut and the fiber gasket back onto the valve body until the top surface of the lock nut is flush with the top surface of the valve body. - Secure the top lock nut in place before inserting the handle. - Page 3 HAND SHOWER INSTALLATION - Apply a ring of silicone caulking around the hole designated for the hand held shower. Do not use plumber’s putty, which can damage finish. - Remove the hardware from Base Flange. Slip the Base Flange through the appropriate hole in deck.
-
Page 4: Parts Drawing
PARTS DRAWING PART DESCRIPTION PART # PART DESCRIPTION PART # Spout, Roman Tub Faucet PS-5D00-U Lever Hub PH2722 Rubber Washer Seal PM-215 Teflon Washer PM-095 Spout Base P0842 Body Base PH2417 Flange PH2728 Teflon Stem Washer PM-099 Rubber Washer PM-400 Valve Cartage Extension SA240 Spout Shank... -
Page 5: Specification Sheets
SPECIFICATION SHEETS " " " " Water Water Valve Valve " " " " Ø2 " Ø2 " Ø2 " The measurements shown are for reference only. Products and specifications shown are subject to change without notice. www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681... -
Page 6: To Obtain Warranty Service
Doing so may ruin your faucet finish and/or void the warranty. Thank you for making SANTEC a part of your lifestyle and luxury spa experience. Our products have been created as works of enduring quality and sophisticated design. -
Page 7: Lifetime Limited Warranty
SANTEC reserves the product components of the covered product will be repaired, refinished, or replaced at the sole discretion of SANTEC. SANTEC reserves the right to examine any product claimed defective prior to any warranty claim being accepted or processed, at its sole discretion. This warranty gives you specific legal rights and you may have other rights which may vary from state to state.
