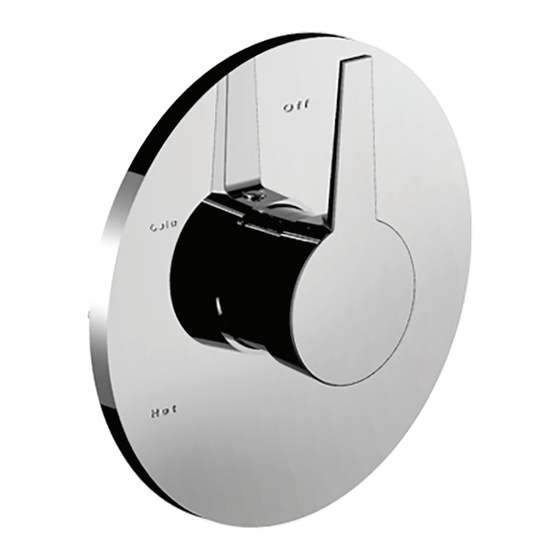

- Page 1 E -SERIES: E BIS COL LECT I ON PRE S S URE BALAN CED D I V ER TER WIT H “HY ” HANDLES MODE L : 3 7 3 1 HY 1 0 3 7 3 1 H Y75 K EEP TH IS I NSTRUCTI ON BO OKL ET FOR FUT URE REFER ENC E...
- Page 2 S p e c i c a t i o n s D es cript io n This product is precision engineered to provide satisfactory performance provided it is installed and operated in accordance with our recommendations contained in this manual. In order to fully enjoy the comfort, safety and the reliability of your pressure balancing valve, be certain to familiarize yourself with the contents of this manual.
- Page 3 T r i m Tr i m I nstal l at ion Finished wall TRIM PLATE & PLATE COVER Trim plate Sleeve Plate screws Fit sleeve over valve until it bottoms out. Place foam strip around the inner edge of the shower plate. Press the shower plate against the wall.
- Page 4 Access should be provided to the roman tub valves for future service or repair to valves and piping. Under no circumstances will Santec Faucet, Inc. be liable for any costs associated with the removal of materials for future access to the tub valves or piping for service or repair.
