PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
DO NOT TIGHTEN
HOSE
*** NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION***

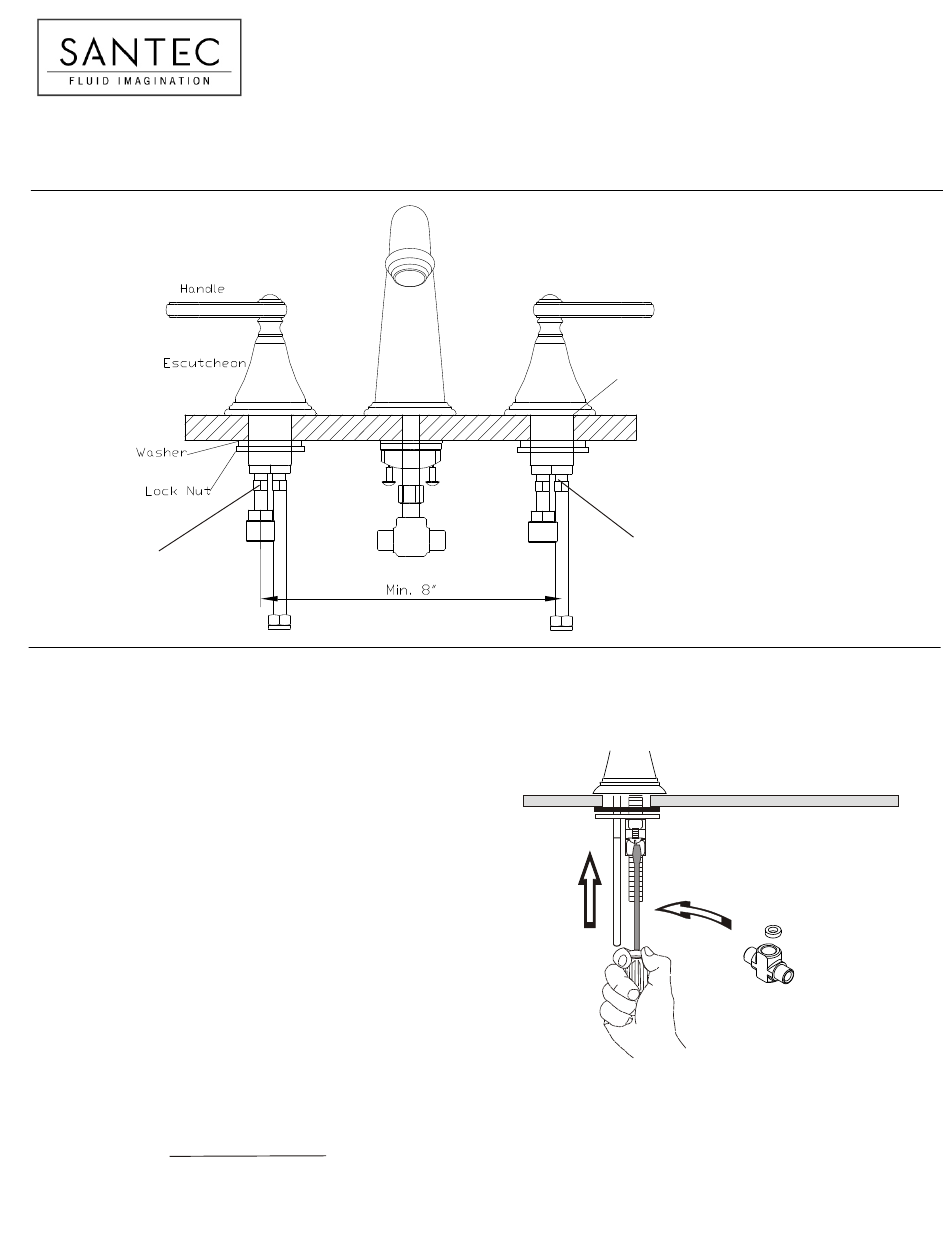

SPOUT INSTALLATION

Remove tee connector and mounting hardware from the spout.
A-
Apply a ring of silicone caulking around hole designated for spout.
DO NOT USE PLUMBERS' PUTTY WHICH CAN DAMAGE FINISH.
Insert spout through center hole of sink or countertop.
-From below slip notched washer and gasket over spout shank. Align
notched washer and gasket to allow pop-up rod to pas through.
Attach wing nut and brass lock nut.
Secure spout by tightening the two screws on wing nut.
Thread tee connector and washer to pout shank and tigfhten to seal
INSPECTED BY
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

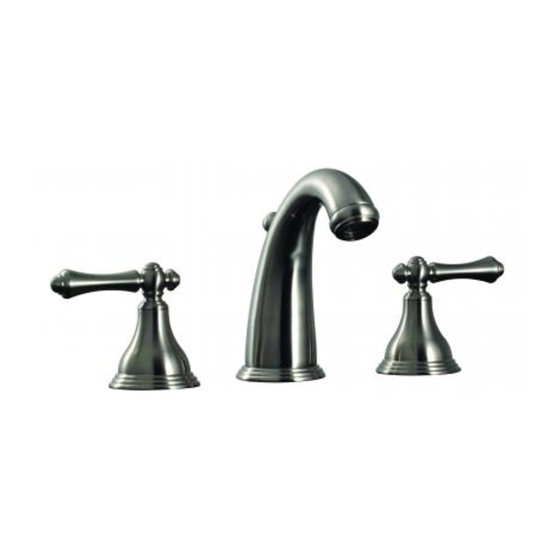

COLLECTION
WIDESPREADS
MINIMUM HOLE SIZE FOR THE SPOUT AND
HANDLE TRIM IS 1
¼
DO NOT TIGHTEN
HOSE
Brass lock nut
Tee connector & washer
" AND MAXIMUM OF 1
"
½
PAGE 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Widespread 9220ED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Santec Widespread 9220ED

Summary of Contents for Santec Widespread 9220ED

  • Page 1 COLLECTION WIDESPREADS PLEASE READ THE INSTRUCTIONS COMPLETELY BEFORE BEGINNING THE INSTALLATION. MINIMUM HOLE SIZE FOR THE SPOUT AND HANDLE TRIM IS 1 ” AND MAXIMUM OF 1 ” ¼ ½ DO NOT TIGHTEN DO NOT TIGHTEN HOSE HOSE *** NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION*** SPOUT INSTALLATION Brass lock nut Remove tee connector and mounting hardware from the spout.
  • Page 2 INSTALLATION INSTRUCTIONS WIDESPREADS HANDLE TRIM INSTALLATION rubber washer HANDLE TRIMS ARE READY FOR DROP IN INSTALLATION. SANTEC SANTEC DO NOT DISASSEMBLE. Remove the valve body mounting hardware from the valve body. Hot valve assembly “Red” to be mounted on left.
  • Page 3 This warranty does not cover any cost involved in the installation, repair, or replace ment of any Santec product or part. This warranty does not cover and Santec will not be held liable for any loss, damages, or expenses, incidental or consequential whatsoever, originating from the purchase, installation, use, repair, failure, or replaceme nt of any Santec product or part, as allowed by law.
